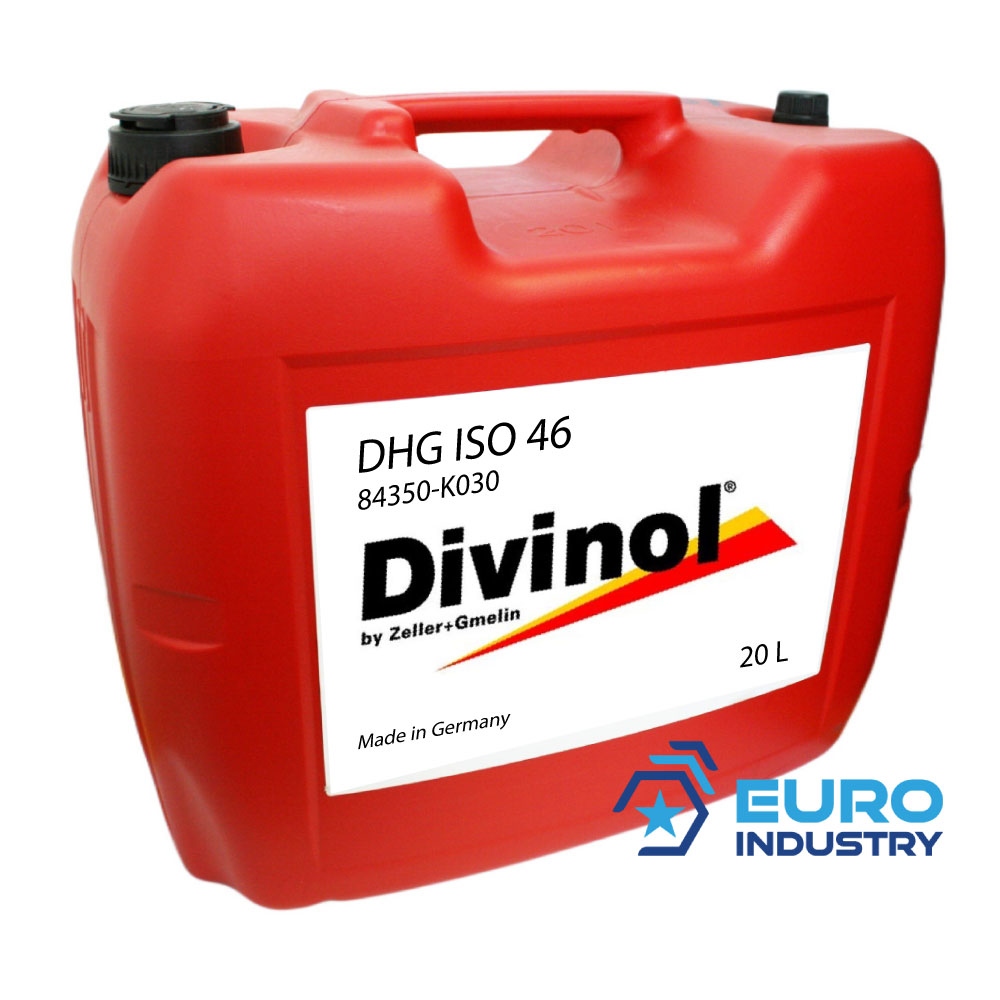

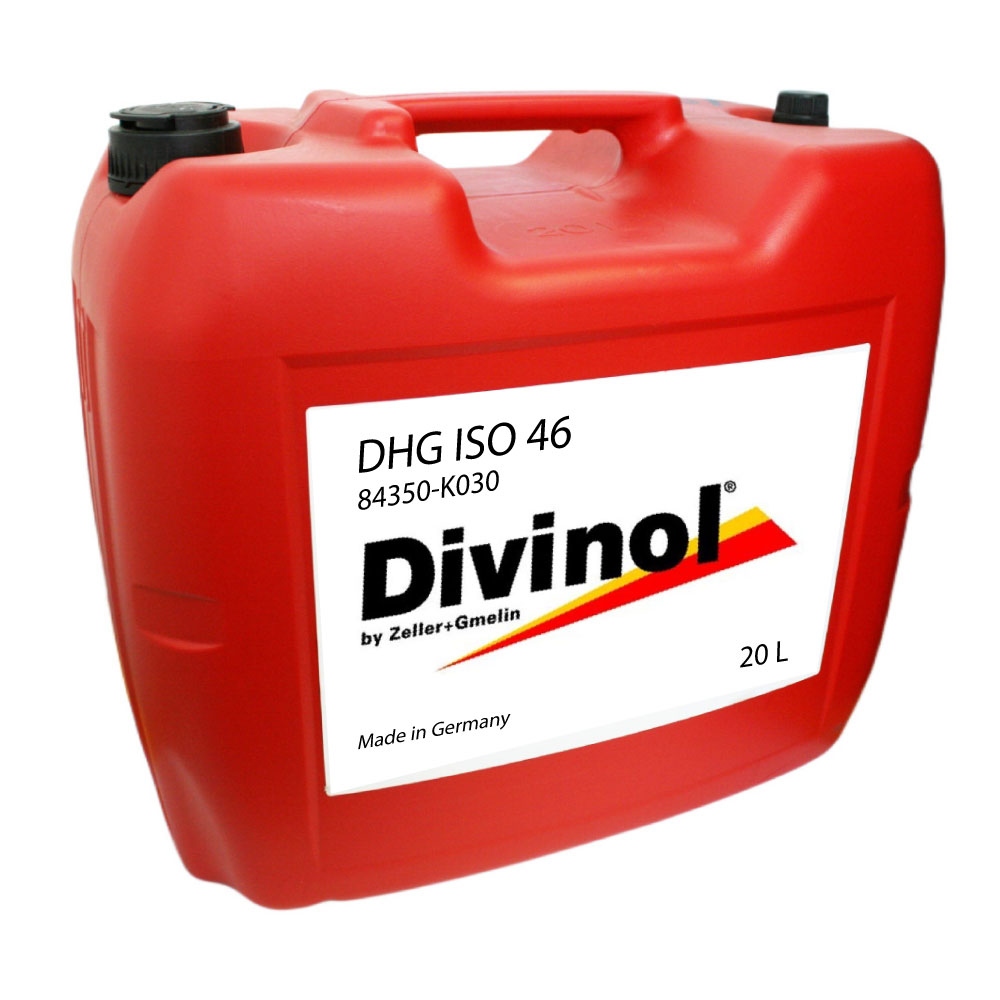

Divinol DHG ISO 46 Hydraulic Oil HLP-D zinc-based 20L
Divinol DHG ISO 46 Hydraulic Oil HLP-D zinc-based 20L
€ 59.44 59.44 incl. VAT (49.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Zeller+Gmelin
Country of origin: DE/0004
Customs tariff number: 27101983
Weight per piece: 20.0 kg
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
Divinol DHG ISO 46 is a zinc-based, detergent-type hydraulic oil with high lubricity and excellent corrosion protection (HLP-D ISO VG 46). It exceeds the requirements of DIN 51524 Part 2.
- Pack size: 20 L canister
- Also available in: 60 L drum, 200 L drum
Applications
- Mobile and stationary hydraulic systems with hydrostatic drives
- Machining tools: lathes, drilling and milling machines
- Injection molding machines exposed to coolant ingress
- Systems at risk of condensation due to temperature fluctuations
Specifications and Approvals
- HLP-D according to DIN 51524 Part 2 (except demulsifying behaviour)
- FZG test A/8.3/90: load stage > 12
- Covers the application range of HLP-type lubricated oils
Features
- Detergent and dispersant additive technology
- Very high lubricating performance
- Excellent wear and corrosion protection
- High oxidation stability
- Zinc-based formulation for enhanced wear protection
- Good air release properties (4 min at 50 °C)
Technical Data
| Physical Properties | |
|---|---|
| Viscosity grade (ISO VG) | 46 |
| Color | lighter than 4.0 (DIN ISO 2049) |
| Density (15 °C) | 860 kg/m³ (DIN EN ISO 12185) |
| Viscosity (40 °C) | 46 mm²/s (ASTM D7042) |
| Viscosity (100 °C) | 6.9 mm²/s (ASTM D7042) |
| Viscosity index | 114 (ASTM D2270) |
| Pour point | ≤ -24 °C (ASTM D7346) |
| Flash point (Cleveland) | > 210 °C (DIN ISO 2592) |
| Water content | < 0.05 % (DIN 51777 A) |
| FZG test A/8.3/90 | load stage > 12 (DIN 51354) |
| Air release (50 °C) | 4 min (DIN ISO 9120) |
| Oxidation residue (ash) | 0.2 % weight (DIN EN ISO 6245) |
Notes
- Divinol DHG ISO 46 is ideal for systems exposed to coolant or water contamination.
- Please observe the equipment manufacturer's guidelines.
- Formulated with zinc for active wear protection.
- Cleaning additives help reduce contamination in heavily stressed systems.
Zeller+Gmelin GmbH & Co. KG, Schlossstrasse 20, 73054 Eislingen/Fils, GERMANY, +49 7161 802-0, [email protected], www.zeller-gmelin.de
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4008394411019 | 84350-K030 |
