Shell Spirax S6 ATF ZM High performance transmission oil 209L

Shell Spirax S6 ATF ZM

Previous name: Shell Donax TZ
Premium high-performance automatic transmission fluid for extended drain intervals in ZF transmissions

Shell Spirax S6 ATF ZM is a premium quality, semi-synthetic, high-performance automatic transmission oil that was developed in cooperation with ZF as a transmission oil for the latest generation of ZF Ecomat and ZF Ecolife transmissions. It is an extremely high-performance automatic transmission oil, which is approved for extended oil change intervals and remains stable even under difficult operating conditions.

Characteristics

Specially developed technology
Shell Spirax S6 ATF ZM was developed in cooperation with ZF. The use of semi-synthetic base oils and an exclusive novel additive technology results in a product with ultimate performance.
Potential for the longest oil change intervals
This technology, specially developed for ZF Ecomat and ZF Ecolife transmissions, enables the longest oil change intervals under all operating conditions. The first change from another ATF oil to Shell Spirax S6 ATF ZM requires a shorter inter-oil change interval. Please note the information in the ZF list of lubricants TE-ML 14 Table 2 (version 2201-2003).
Good fluidity even at very low temperatures
The physical properties of this gear oil, which are achieved through the additives used and the base oils, enable very good flow properties even at low temperatures. This also protects the transmission components from premature wear under very cold operating conditions.
shifting comfort and maintenance costs
The combination of these properties and advantages leads to better shifting comfort. In addition, maintenance costs can be reduced due to the extension of the oil change intervals and the longer service life of the gearboxes.

Main areas of application

Commercial vehicle automatic transmission
Shell Spirax S6 ATF ZM can be used in all ZF Ecomat and ZFEcolife transmissions and retarders.

Specifications, Approvals and Recommendations

• Scope TE-ML 4D, 14E, 16N, 20F, 25F
• MAN 339 Type Z4 (ZF Ecomat 150,000 km)
• MAN 339 Type Z13 (ZF-Ecolife 240,000 - 120,000 km, depending on the operating temperature)

Generally
Technology Based on synthesis technology

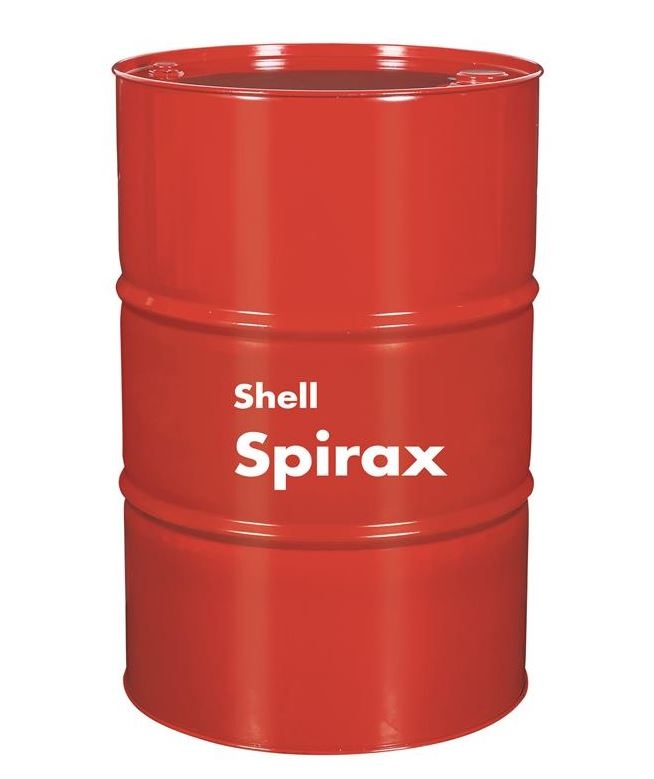

Size: 209 liter barrel
Danger symbols: waste oil symbol, exclamation mark
Weight 191kg
Manufacturer approvals

• ZF TE-ML 04D
• MAN 339 Type Z4
• Scope TE-ML 14E
• Scope TE-ML 20F
• Scope TE-ML 16N
• MAN 339 type Z13
• Scope TE-ML 25F

Product family Spirax
Lubricant group ATF – Automatic Transmission Fluids

Technical specifications

Kinematic viscosity @40 C	61.8 mm2/s
Kinematic viscosity @100 C	10.2 mm2/s
Viscosity index	153
Density @15 C	843 kg/m3
Flash point (COC)	240 C
Pour point	-51 C
