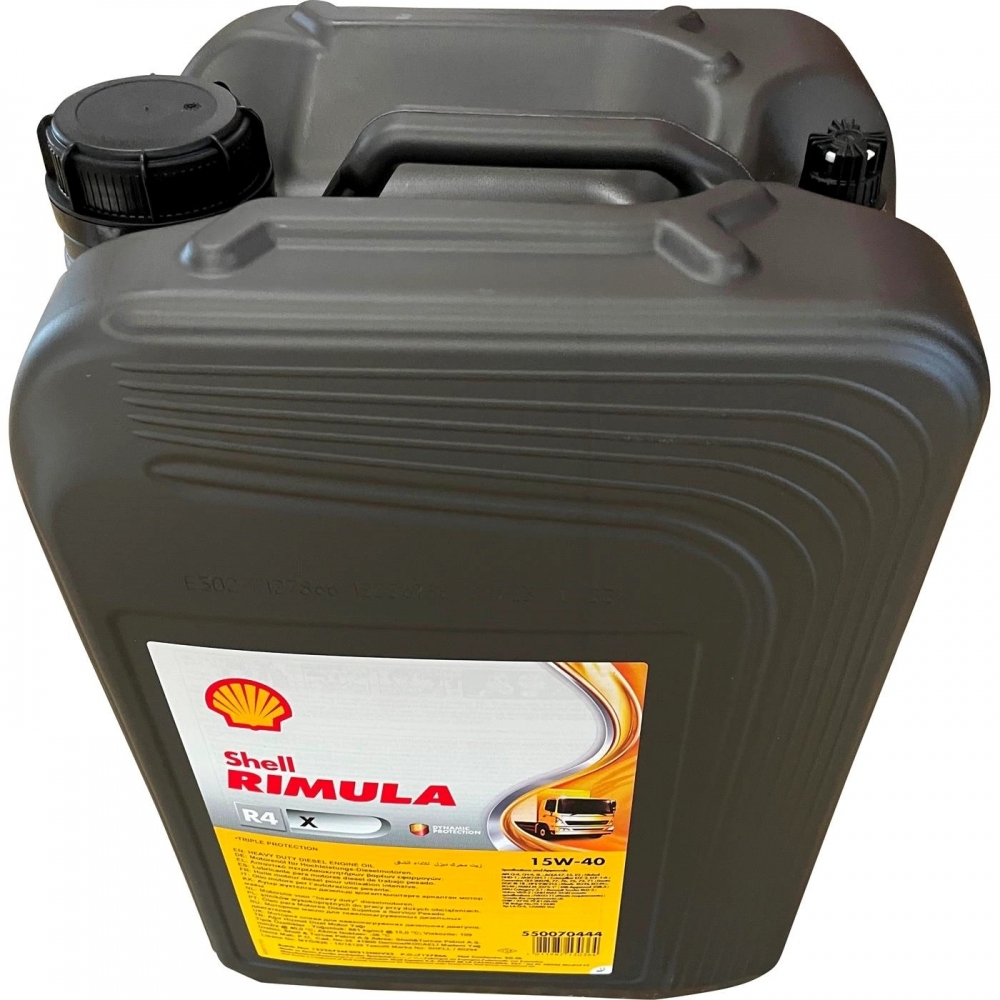

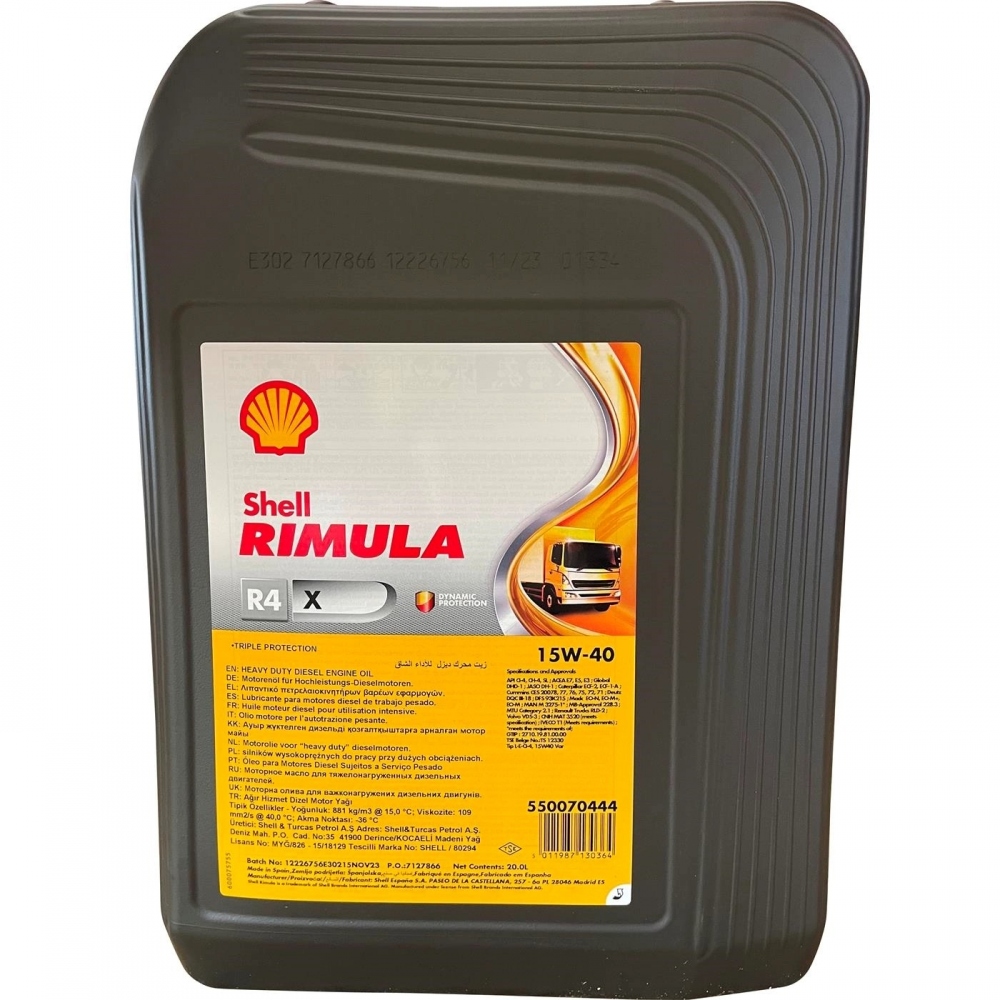

Shell Rimula R4 X 15W-40 Heavy Duty diesel engine oil 20L canister

Shell Rimula R4 X 15W-40 is designed to provide Triple Protection to improve engine and oil durability. It helps to lower maintenance and increase reliability of vehicles. It’s suitable for most heavy-duty diesel engines for on and off highway applications.

• Pack size: 20 l canister
• Also available in: 209 l drum

Applications

• Shell Rimula R4 X provides demonstrated protection and performance in the latest high power heavy-duty diesel engines from European, US and Japanese manufacturers in both on-highway and off-highway applications.
• Shell Rimula R4 X is suitable for most modern low emission engines meeting Euro 5, 4, 3, 2, and US 2002 emission requirements.
• For the latest low emissions engines especially those fitted with exhaust diesel particulate filters (DPF), we recommend the use of our low-emissions products, Shell Rimula R4 L or Shell Rimula R5 LE.

Specifications & Approvals

• API CI-4, CH-4, CG-4, CF-4, CF.SL
• ACEA E7, E5, E3
• Global DHD-1
• Caterpillar ECF-2, ECF-1-A
• Cummins CES 20078,77,76,75,72,71
• DDC 93K215
• Deutz DQC III-10
• IVECO T1 (Meets requirements)
• JASO DH-1
• Mack EO-M+, EO-M
• MAN M3275-1
• MB-Approval 228.3
• MTU Category 2
• Renault Trucks RLD-2
• Volvo VDS-3
• CNH MAT 3520 (meets specification)

Characteristics

• Acid and Corrosion Control
• Reduced Engine Wear
• Deposit Control

Technical specifications

Manufacturer number	550070444
Kinematic Viscosity @ 40°C, mm²/s, ASTM D445	109
Kinematic Viscosity @ 100°C, mm²/s, ASTM D445	14.7
Dynamic Viscosity @ -20°C, mPa·s, ASTM D5293	6700
Viscosity Index, ASTM D2270	139
Total Base Number, mg KOH/g, ASTM D2896	10.5
Sulphated Ash, %, ASTM D874	1.45
Density @ 15°C, kg/l, ASTM D4052	0.881
Flash Point (COC), °C, ASTM D92	230
Pour Point, °C, ASTM D97	-36

Product description

Shell Rimula R4 X shows excellent control of acids by reducing the accumulation of acids and chemical corrosion of engine bearings. Harmful acids from fuel combustion are controlled by using selected detergent additives to neutralise them and help to prevent corrosion of metal surfaces
Shell Rimula R4 X offers high levels of engine wear protection in the critical areas of the valve train, piston ring and cylinder liners. This wear control is achieved through the addition of anti-wear additives that are designed to form protective films in metal-to-metal contacts when needed under different engine operating conditions, and by the use of soot dispersant additives to keep soot particles finely dispersed to help prevent wear.

Health and Safety

Shell Rimula R4 X is unlikely to present any significant health or safety hazard when properly used in the recommended application and good standards of personal hygiene are maintained. Avoid contact with skin. Use impervious gloves with used oil. After skin contact, wash immediately with soap and water.

Protect the Environment

Take used oil to an authorised collection point. Do not discharge into drains, soil or water
