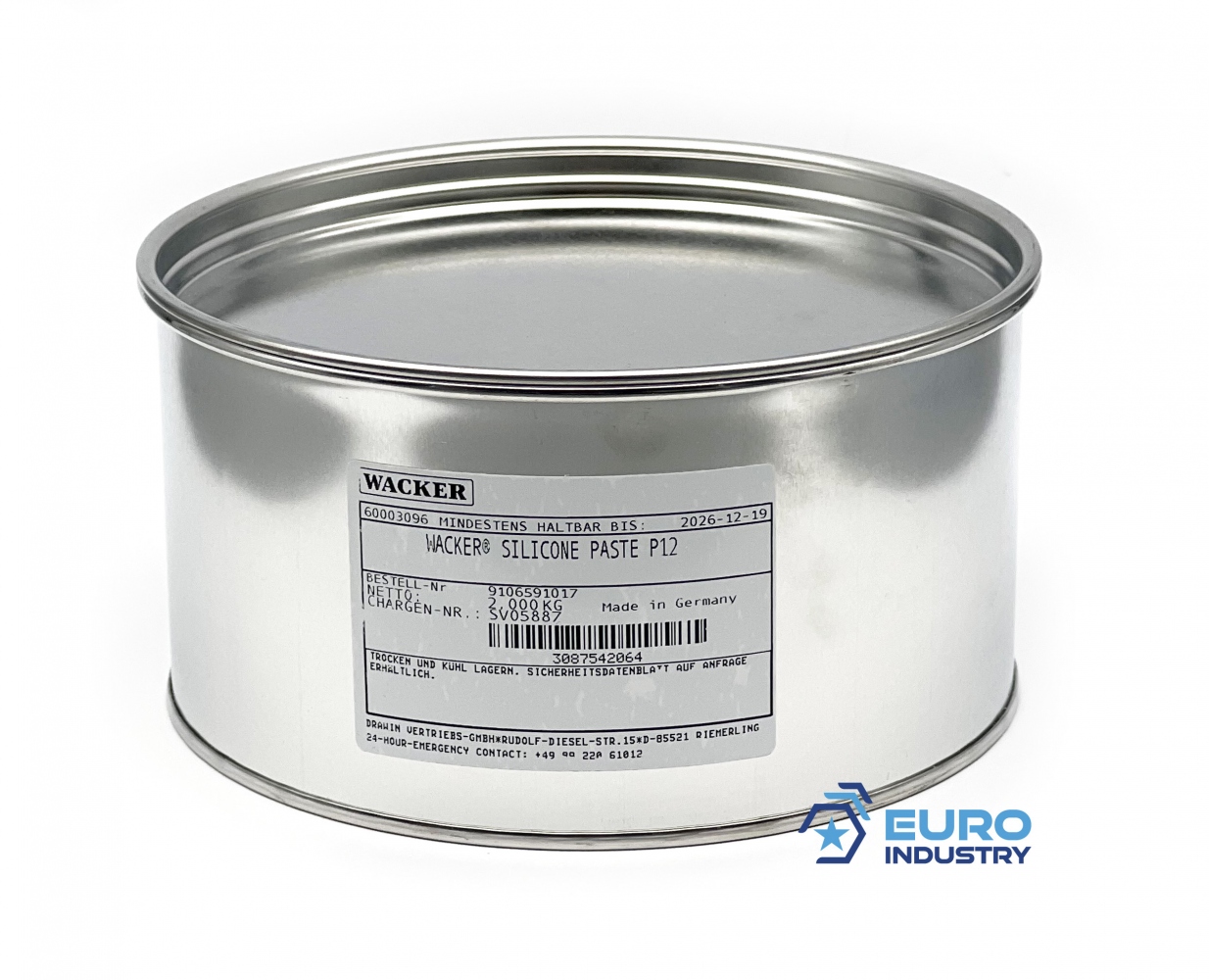

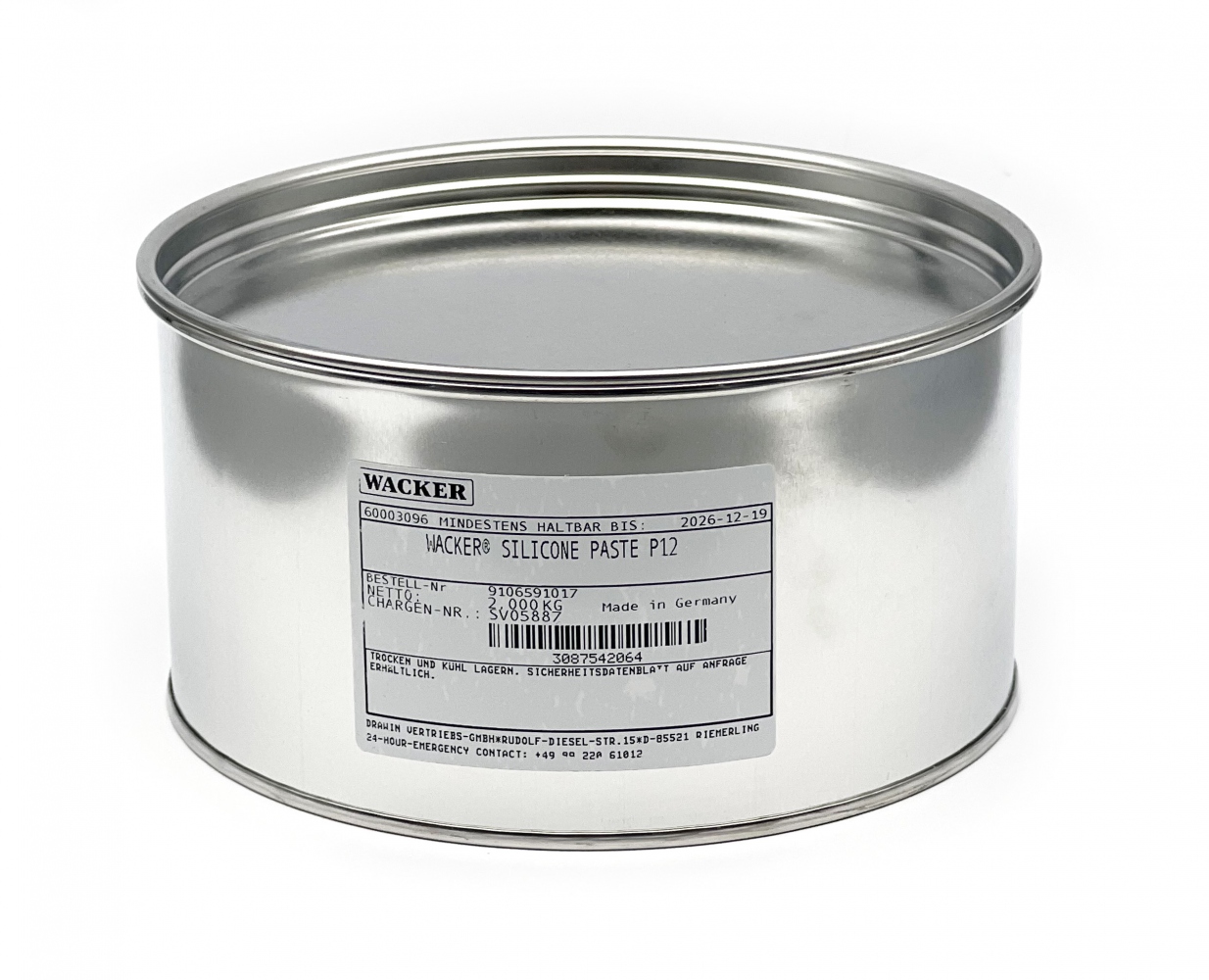

Wacker P12 Heat-sink paste thermal compounds 2kg can

WACKER® PASTE P 12 is a pure white, soft silicone paste with outstanding thermal conductivity and electrical insulation. Designed for use in semiconductor technology, it significantly reduces thermal resistance between semiconductor housings and heat sinks.

• Pack size: 2 kg can
• Also available in: 20 ml tube, 90 ml tube

Applications

• Semiconductor technology: Heat sink paste for diodes, transistors, and thyristors
• Improves thermal contact between components and cooling surfaces
• Universally applicable at temperatures from -40 °C to +200 °C

Features

• Approximately 20 times more thermally conductive than air

Technical Data

Processing

WACKER® PASTE P 12 can be applied using a brush, spatula, or by screen printing. Best results are achieved when a uniform, thin layer is applied to the contact surfaces. Excess paste squeezed out during assembly should be removed.

Storage

The product should be stored in a cool and dry place. The best-before date for each batch is indicated on the label. Storing beyond this date does not necessarily mean the product is unusable. In such cases, the properties required for the intended use should be checked to ensure quality.
WACKER PASTE P-12, WACKER PASTE P12

Wacker Chemie AG, Gisela-Stein-Strasse 1, 81671 München, GERMANY, +49 89 6279-0, [email protected], www.wacker.com
