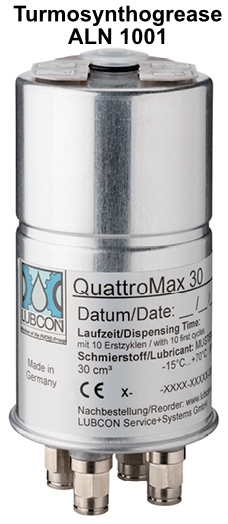

LUBCON QuattroMax 30 External Pulse Lubrication Unit with TSG ALN 1001
€ 237.35 237.35 incl. VAT (199.45 excl. VAT), per piece *
Availability: on request
Packaging unit: 1 piece
Manufacturer: LUBCON
Country of origin: AT/0038
Customs tariff number: 84798960
Weight per piece: 1.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
LUBCON QuattroMax 30 External Impulse is an automatic relubrication unit for external lubrication points. This version is filled with TURMOSYNTHGREASE ALN 1001/000.
- Version: QuattroMax 30 External Impulse
- Lubricant: TURMOSYNTHGREASE ALN 1001/000
Applications
- Automatic relubrication of external lubrication points
- For applications requiring regular relubrication
- Suitable for mechanical engineering, packaging industry as well as food and pharmaceutical environments, depending on the system design
QuattroMax 30 system
- Electromechanical relubrication unit for external lubrication points
- System volume: 30 cm³
- Suitable for automatic supply of up to 4 lubrication points
- Impulse version according to quotation configuration
Lubricant
- Synthetic semi-fluid gear grease for demanding applications
- NSF H1 registered
- High oxidation and thermal stability
- Excellent adhesion and load-carrying capacity
- Resistant to cold and hot water
- Excellent corrosion and wear protection
Standards & Approvals
- Lubricant NSF H1
- Halal
- Kosher
- MOSH/MOAH free
Technical Data
| Manufacturer | LUBCON |
| Manufacturer no° | 91006706599 |
| Product | QuattroMax 30 External Impulse |
| System type | Automatic relubrication unit |
| Version | External Solution |
| Operating mode | Impulse |
| System volume | 30 cm³ |
| Lubrication points | up to 4 |
| Lubricant | TURMOSYNTHGREASE ALN 1001/000 |
| Lubricant colour | beige |
| Base oil | Synthetic hydrocarbons |
| Thickener | Polyurea-aluminium special soap |
| Consistency class | NLGI 000 |
| Density at 20 °C | 0.85 g/cm³ |
| Base oil viscosity at 40 °C | 100 mm²/s |
| Base oil viscosity at 100 °C | 15.5 mm²/s |
| Worked penetration | 445 – 475 mm/10 |
| Temperature range | -40 to +140 °C |
| Corrosion protection (SKF Emcor) | 0 / 0 |
Electrical connection note
Since July 2012, the relubrication units have been supplied with a new control system and an 8-pin connector. The PIN assignment for connection to the PLC remains unchanged; however, an 8-pin socket on the cable is required. For already installed systems, an adapter or a new cable may be required depending on the installation situation.
- Matching adapter: 4-pin plug to 8-pin socket adapter, straight
Lubricant Consult GmbH, Gutenbergstraße 13, 63477 MAINTAL (GERMANY), +49 6109/7650-0, [email protected], www.lubcon.com
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 91006706599 |
