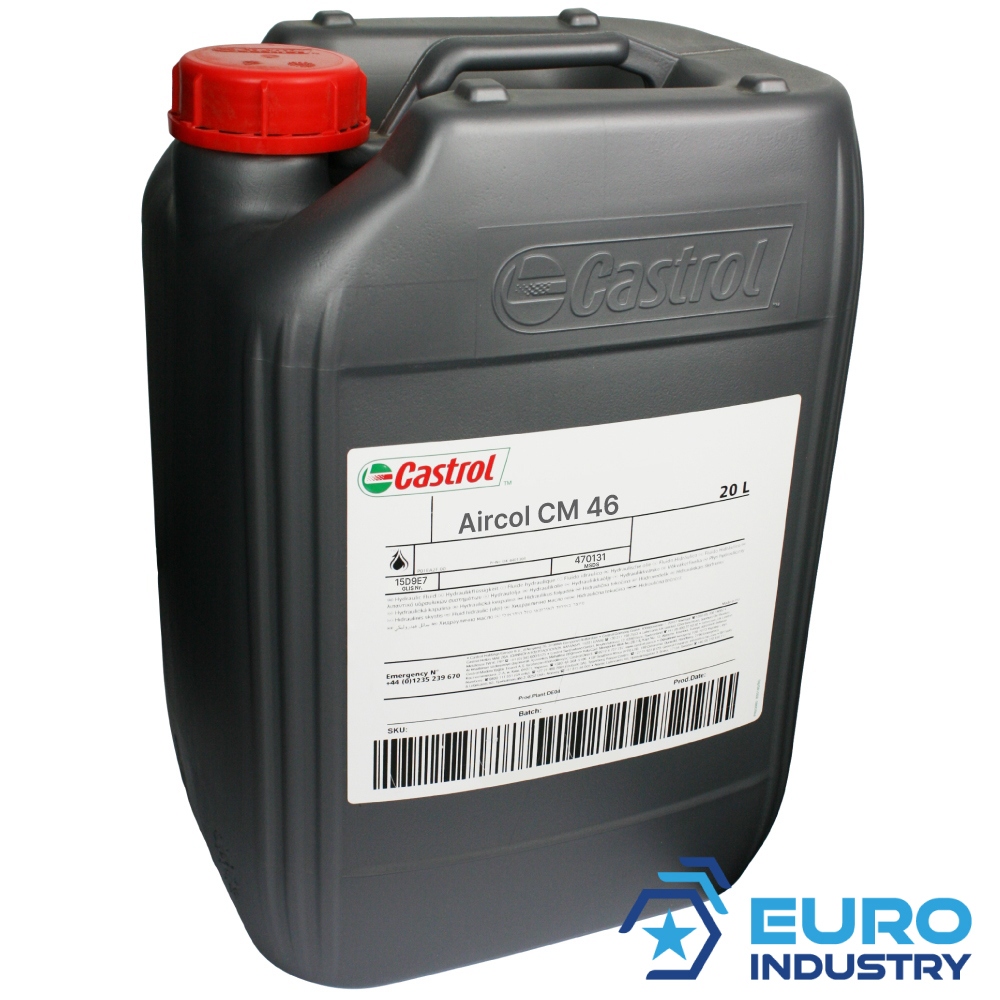

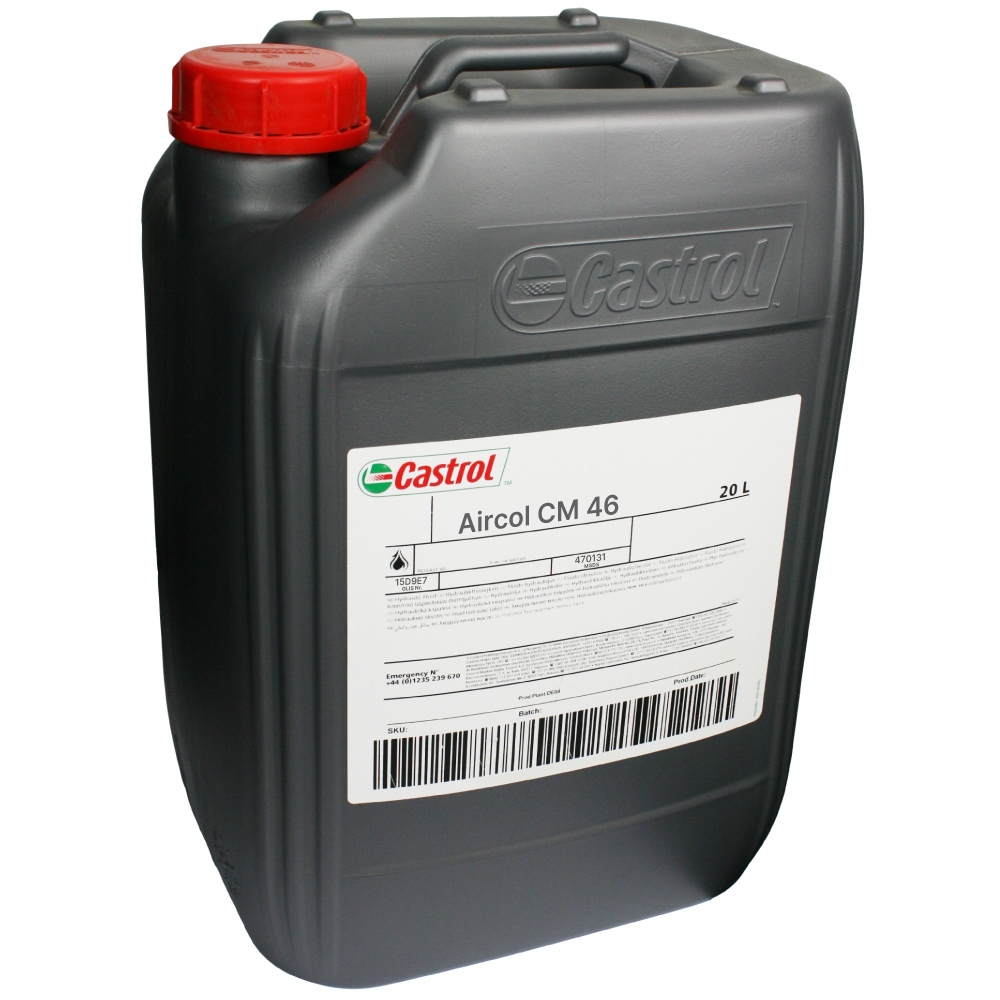

Castrol Aircol CM 46 Air compressor oil VDL 20L canister
€ 98.71 98.71 incl. VAT (82.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Castrol
Country of origin: BE/0017
Customs tariff number: 27101981
Weight per piece: 18.1 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Castrol Aircol™ CM 46 is a high quality compressor oil based upon highly refined mineral oil, enhanced with additive technology providing excellent thermal and oxidative stability and good load carrying capacity, compared to other products in the same class.
- Pack size: 20 L canister
- Also available in: 208 L drum
Applications
- Formulated without zinc additives (ashless oils), recommended for the lubrication of rotary screw and reciprocating compressors
- ISO 6743-3 Compressor Oils: DAA/DAB (reciprocating & drip-fed rotary); DAG/DAH (oil-flooded rotary screw)
- Meets DIN 51506 VDL for reciprocating compressors with discharge temperatures up to 220 °C
- Designed for service drain intervals up to 4000 hours for oil-flooded/injected rotary screw compressors operating continuously up to 90 °C (above 90 °C: follow OEM standard drain)
High FZG load carrying for geared compressor units
Specifications & Approvals
- DIN 51506 VDL
- ISO 6743-3: DAA, DAB, DAG, DAH
Benefits
- Good water separation characteristics minimize emulsions that could block separator elements
- Fully inhibited against corrosion—protection even under humid conditions
- Good thermal stability, low volatility and low carbon formation reduce risk of fire/explosion and support long oil life (up to 4000 h)
- Low deposit forming tendencies extend oil/filter life and reduce maintenance costs
- Excellent coalescing properties mean little oil carryover in the air stream
- High load carrying to meet requirements of geared compressor units
Technical specifications
| Manufacturer number | 15D9E7 |
| Grade | ISO 46 |
| Density @ 15 °C, kg/m³, ASTM D4052 | 880 |
| Kinematic Viscosity @ 40 °C, mm²/s, ASTM D445 | 46 |
| Kinematic Viscosity @ 100 °C, mm²/s, ASTM D445 | 7.1 |
| Viscosity Index, ASTM D2270 | 113 |
| Pour Point, °C, ASTM D97 | -38 |
| Flash Point (COC), °C, ASTM D92 | 230 |
| Foam, Seq I, Tendency/Stability, ml, ASTM D892 | 0 / 0 |
| Water Separation 54 °C (40/37/3), min, ASTM D1401 | 11 |
| Rust Test, Synthetic Seawater, ASTM D665B | PASS |
| FZG Scuffing, A/8.3/90, ISO 14635-1 | > 12 |
| RPVOT, min, ASTM D2272 | 1530 |
Product Description
The Castrol Aircol™ CM compressor oil range of high quality lubricants are based upon highly refined mineral oil, enhanced with additive technology providing excellent thermal and oxidative stability and good load carrying capacity, compared to other products in the same class.
Aircol CM68, Aircol CM-68, Aircol CM/68
BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 15D9E7 |
