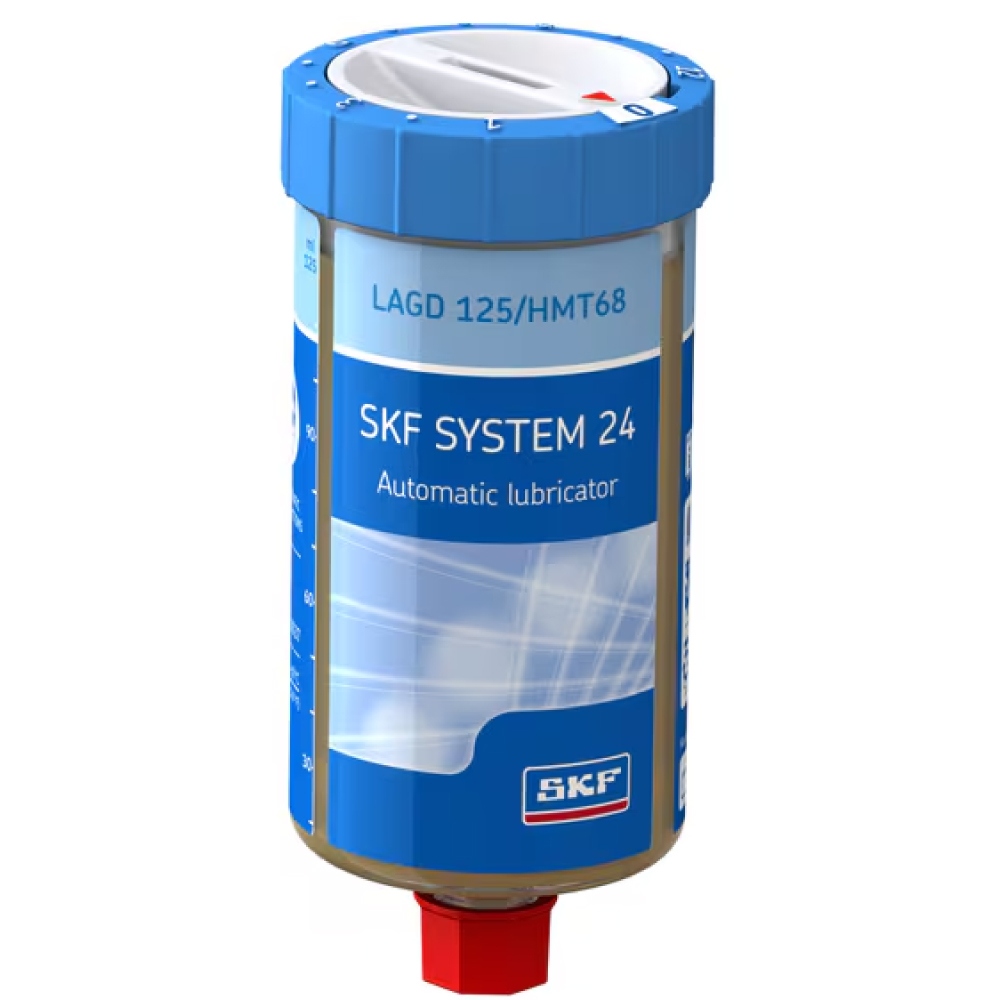

SKF LAGD 125/HMT68 Single-Point Lubricator with VG 68 chain oil 125ml

The SKF SYSTEM 24 LAGD 125/HMT68 is filled with SKF LHMT 68 high-performance mineral chain oil with high anti-wear protection. Our gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

Characteristics

• Flexible dispense rate from 1 to 12 months
• ATEX zone 0 approved
• Transparent lubricant container allows visual inspection of dispense rate
• Compact size, suitable for restrictive areas
• Improved reliability and optimized maintenance

Technical specifications

Manufacturer number	TLSD 125/HB2
Ambient temperature range, °C / °F	–20 to +60 / –4 to +140
Connecting thread	R 1/4
Degree of protection (IP)	IP 68
Drive mechanism	Gas cell producing inert gas
Intrinsically safe approval	II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Lubricant	LHMT 68
Lubricant description	High-performance mineral chain oil
Lubricant operating temperature range, °C / °F	–20 to +100 / –4 to +212
Lubricant quantity, ml	125
Maximum feed line length, m	1.5
Nominal emptying time, months	Adjustable: 1–12
Power source	Gas cell
Recommended applications	Conveyor, Drive and Lift chains operating at medium temperatures, Ovens
Recommended storage temperature, °C / °F	20 / 68
Shelf life, years	2
Special features	Non-return valve included



---

LHMT 68 Medium temperature chain oil

LHMT 68 is a high-performance mineral oil specially formulated for the lubrication of chains operating at medium temperatures. It provides excellent anti-wear and anti-corrosion properties.
SKF Chain oils are specifically designed for industrial chain applications and can be used in virtually every industry.

Application

• Conveyor chains
• Drive chains
• Lift chains

Characteristics

• Very good anti-wear protection
• Very good steel and copper corrosion inhibition properties
• Free from silicone

Technical specifications

Colour	Yellow brown
Base oil type	Mineral
Density, DIN 51757 at 20 °C / 68 °F, g/cm³ / lb/in³	0.88 / 0.03
Operating temperature range, °C / °F	–20 to +100 / –4 to +212
Flash point, DIN ISO 2592, °C / °F	>200 / 392
Pour point, DIN ISO 3016, °C / °F	<–30 / –22
Base oil viscosity, ISO 3104, mm²/s	68 at 40 °C / 104 °F, approx. 9 at 100 °C / 212 °F
Water and corrosion	Steel corrosion, DIN ISO 7120-A: Pass; Copper corrosion, DIN 51811, 3h at 100 °C / 212 °F: 1 max
Shelf life, years	5



Information on product safety (Manufacturer, Contact)

SKF GmbH, Gunnar-Wester-Straße 12, 97421 Schweinfurt, GERMANY, +49 9721 56-0, [email protected], www.skf.com
