Shell OMALA S4 WE 680 Synthetic PAG Industrial Gear Oil CLP, 20L

Shell OMALA S4 WE 680 Synthetic PAG Industrial Gear Oil CLP, 20L

€ 261.74 261.74 incl. VAT (219.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: Shell

Country of origin: DE/0004

Customs tariff number: 34039900

Weight per piece: 22.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

eight - eight = ?

( Examples: two + three = 5, three - five = -2 )

Shell Omala S4 WE 680 (formerly known as: Shell Tivela S) is a fully synthetic polyalkylene glycol (PAG) industrial gear oil for worm gear units (ISO VG 680).

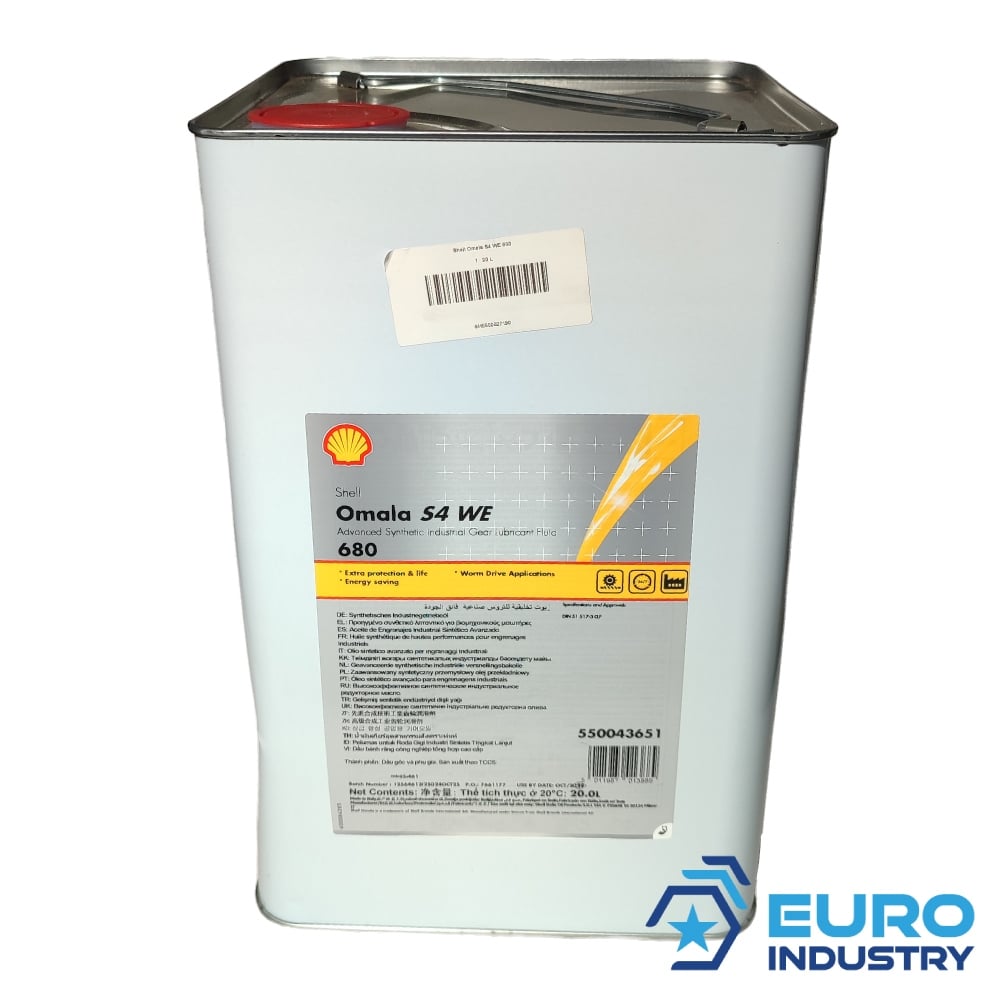

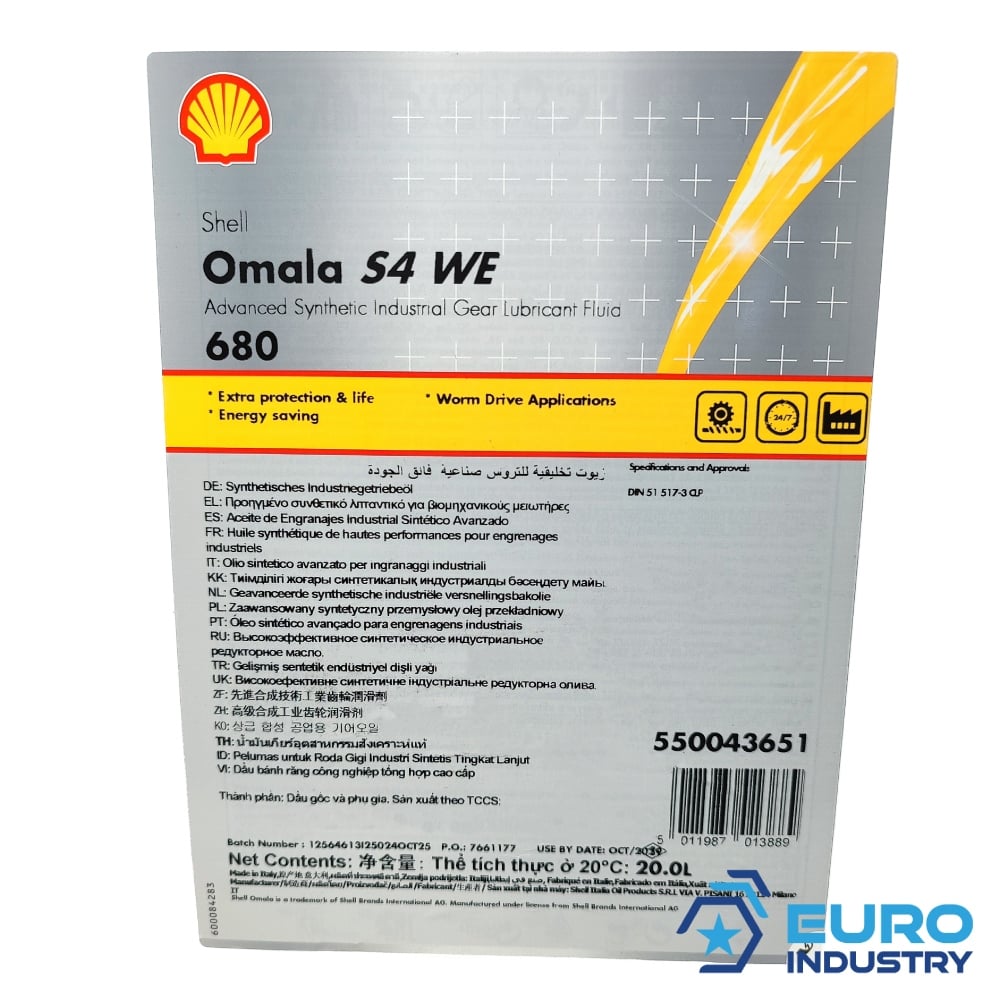

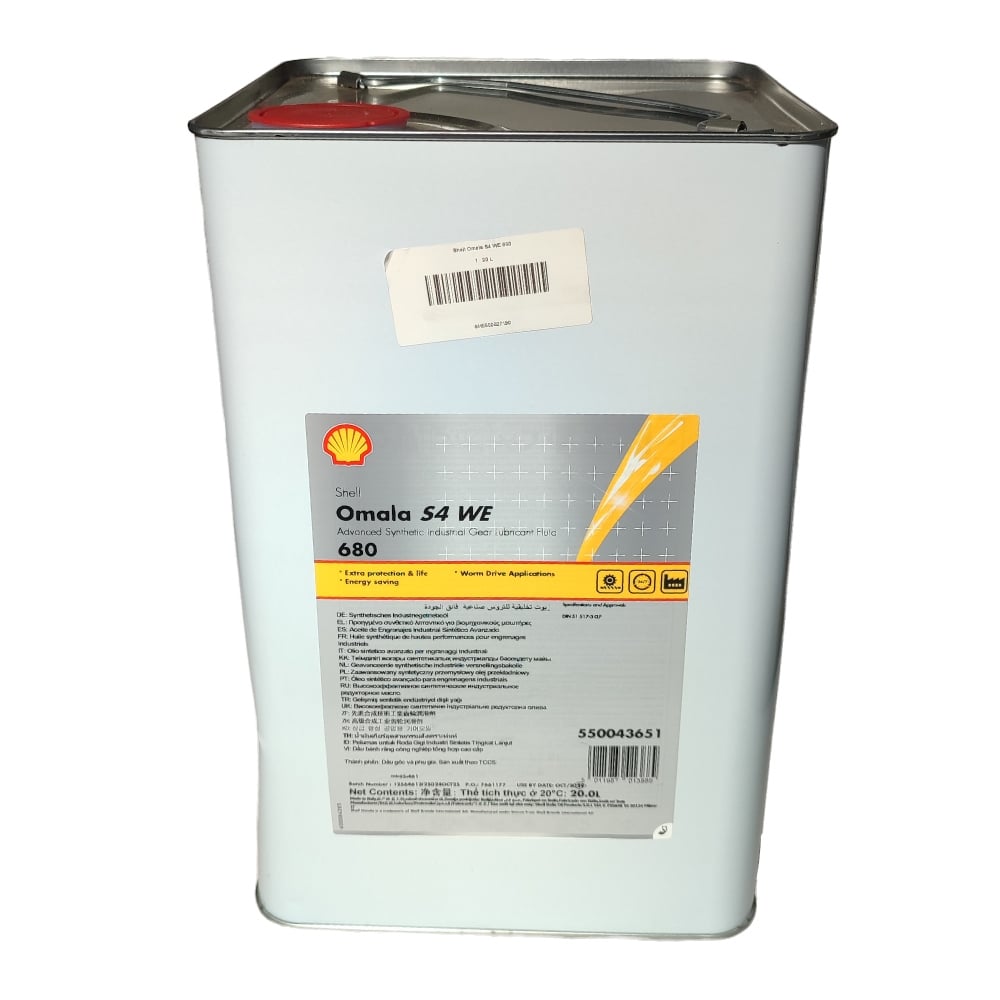

Pack size: 20 L can
Also available in: 209 L drum

Applications

For worm gear units operating under severe conditions such as high loads, very low or high temperatures and strong temperature fluctuations
For hard-to-access systems where particularly long oil life is important
Also suitable for lubricating bearings and other components in circulating systems

Features

Long oil life thanks to very good thermal and oxidative stability
Very high wear protection and protection against micro-pitting
Supports improved energy efficiency in worm gears
Not miscible with mineral oil-based and many other synthetic products
Good compatibility with nitrile and Viton seals; Viton is recommended

Specifications & Recommendations

DIN 51517-3: CLP

Technical Data

Product	Shell Omala S4 WE 680
Manufacturer No.	550043651
Product type	Fully synthetic PAG industrial gear oil for worm gears
ISO viscosity grade	ISO VG 680
Kinematic viscosity (40 °C)	664 mm²/s (ISO 3104)
Kinematic viscosity (100 °C)	107 mm²/s (ISO 3104)
Viscosity index	259 (ISO 2909)
Flash point	262 °C (ISO 2592 COC)
Pour point	-39 °C (ISO 3016)
Density (15 °C)	1070 kg/m³ (ISO 12185)
FZG test load stage	> 12 (FZG A/16.6/90)
Logistics	20 L can

Application Notes

Special care is required when changing over from mineral oils or other synthetic oils; flushing the system with Shell Omala S4 WE is recommended.
Not recommended for applications involving aluminium or aluminium alloys.
Epoxy coatings are recommended for painted internal surfaces.

Shell Omala S4 WE 680, Shell Tivela S 680, PAG gear oil, worm gear oil, ISO VG 680, 20 litre

Information on product safety (Manufacturer, Contact)

Shell Deutschland GmbH, New-Orleans-Straße 4, 20457 Hamburg, Deutschland, +49 (0) 40 6324 - 0, [email protected], www.shell.com
