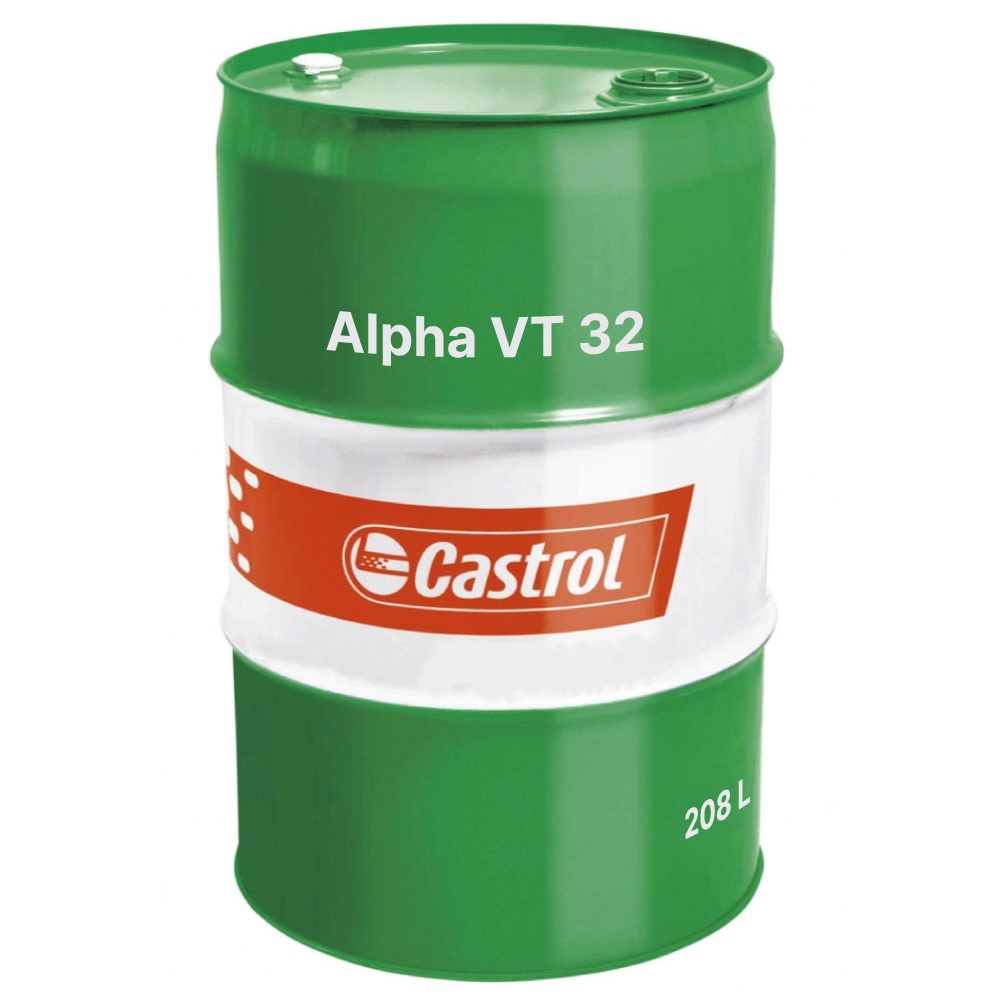

Castrol Alpha VT 32 Turbo transmission Oil CLP 208L

Castrol Alpha VT 32 Turbo transmission Oil CLP 208L

pics/Castrol/barrels/Alpha VT 32/castrol-alpha-vt-32-turbo-transmission-oil-iso-vg-32-clp-208-l-drum-01.jpg

€ 1217.31 1,217.31 incl. VAT (1,022.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: Castrol

Country of origin: DE/0004

Customs tariff number: 27101987

Weight per piece: 208.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

eight + six = ?

( Examples: two + three = 5, three - five = -2 )

Castrol Alpha VT 32 is a turbo transmission oil (ISO VG 32) developed specifically for Voith Turbo transmissions to provide long service life and reliability, and has been classified as Voith Index 1 for "enhanced thermal oxidative stability".

Pack size: 208 L drum
Also available in: 20 L canister

Applications

Hydrokinetic transmissions used mainly in railway locomotives
Hydrodynamic turbo couplings, turbo gears and combined turbo-coupling gears
Trucks and heavy off-highway equipment incorporating this type of transmission unit
Conventional industrial gearboxes where a low viscosity oil is suitable
Compatible with nitrile, silicone and fluropolymer seal materials

Specifications & Approvals

Voith Turbo Specification 3.90-8e_2011-07
CLP 32 according to DIN 51517-3

Characteristics

Long service life
Excellent load carrying and micropitting resistance
Good seal compatibility
Low foam and rapid air release
Excellent demulsification

Technical specifications

Density @ 15°C / 59°F	870 kg/m³
Kinematic Viscosity @ 40°C / 104°F	32 mm²/s
Kinematic Viscosity @ 100°C / 212°F	5.4 mm²/s
Viscosity Index	105
Pour Point	-42 °C / -44 °F
Flash Point - open cup method	234 °C / 453 °F
Water Separation @ 54°C / 129°F (40/37/3)	5 minutes
Air Release @ 50°C / 122°F	4 minutes
Foam Sequence I - tendency / stability	0 / 0 ml/ml
Foam Sequence II - tendency / stability	10 / 0 ml/ml
Foam Sequence III - tendency / stability	0 / 0 ml/ml
Rust test - synthetic seawater (24 hrs)	Pass
FZG Gear Scuffing test - A/8.3/90	Failure Load Stage >12
FZG Gear Scuffing test - A/16.6/90	Failure Load Stage 12
FZG Micropitting test @ 90°C/194°F (FVA 54/1)	Micropitting Rating >10 (high)
FE-8 Bearing Wear test (F.562831.01-7.5/80-80)	Roller wear (Mw 50), mg < 10

Hazard statements (CLP/GHS)

Signal word: No signal word.

Hazard Statements (H-phrases)

H412: Harmful to aquatic life with long lasting effects.

Precautionary Statements (P-phrases)

P273: Avoid release to the environment.
P501: Dispose of contents and container in accordance with all local, regional, national and international regulations.

Information on product safety (Manufacturer, Contact)

BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com

castrol-alpha-vt-32-tds-datasheet.pdf (43.39 KB)
