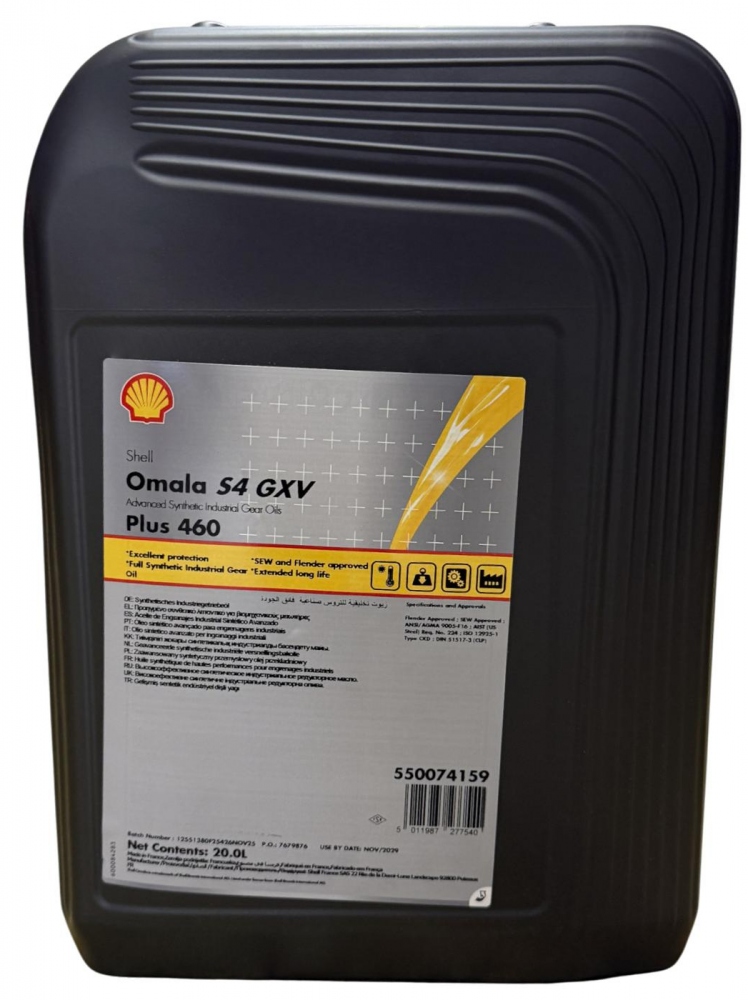

Shell Omala S4 GXV Plus 460 Synthetic Gear Oil CKSMP 460, 20L

Shell Omala S4 GXV Plus 460 Synthetic Gear Oil CKSMP 460, 20L

pics/Shell/Omala S4 GXV 460/shell-omala-s4-gxv-plus-460-synthetic-industrial-gear-oil-550074159.jpg

€ 244.13 244.13 incl. VAT (205.15 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Shell

Country of origin: DE/0004

Customs tariff number: 34031980

Weight per piece: 19.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

eight - nine = ?

( Examples: two + three = 5, three - five = -2 )

Shell Omala S4 GXV Plus 460 (also known as Shell Omala S4 GXV 460 / Shell Omala S4 GX 460 / Shell Omala HD 460) is an advanced, fully synthetic high-performance industrial gear oil ISO VG 460 based on selected synthetic base oils (mPAO), designed for severe operating conditions and extended oil drain intervals.

Pack size: 20 L can
Also available in: 209 L drum

Applications

Enclosed industrial reduction gearboxes operating under severe conditions (high load, very low/high temperatures, strong temperature fluctuations)
Geared motor systems and hard-to-access installations requiring extended maintenance/oil change intervals
Circulating and splash-lubricated systems: bearings and other gearbox components

Characteristics

Very high thermal and oxidative stability – supports extended oil drain intervals and reduced deposit formation
High load carrying capacity with strong protection against micropitting and wear
Excellent rust and corrosion protection – even with contamination by water and solids
Optimised low-temperature behaviour and reduced friction – supports gearbox efficiency
Very good seal compatibility (e.g. NBR, FKM) for critical dynamic sealing conditions
Suitable for high-flow systems; validated filterability down to 3 µm (advanced OEM filterability tests)
Passed bearing tests with no WEC damage in accordance with FVA 707 working group test protocol

Specifications & approvals

ISO 12925-1: CKD / CKSMP
DIN 51517-3: CLP
DIN 51517-4: CLPX
ANSI/AGMA 9005-F16
AIST (US Steel) Req. No. 224
China National Standard GB 5903-2011 CKD
OEM approvals (extract): Flender (T 7300), SEW (Rev. 070040513), FLSmidth MAAG Gear (ISO 150–460), Rossi (ISO 150–460), SHI (ISO 150–680), Comer Industries (ISO 150–320), Liebherr Mining (ISO 220–680)

Technical data

Product	Shell Omala S4 GXV Plus 460
Product type	Fully synthetic industrial gear oil (mPAO)
ISO viscosity grade	ISO VG 460
Kinematic viscosity (40 °C)	460 mm²/s (ASTM D445)
Kinematic viscosity (100 °C)	54 mm²/s (ASTM D445)
Viscosity index	183 (IP 226)
Flash point (COC)	240 °C (ASTM D92)
Pour point	−48 °C (ASTM D97)
Density (15 °C)	862 kg/m³ (ASTM D4052)
FZG (A/8.3/90)	12 (ISO 14635-1)
Four Ball EP weld load	250 kg min. (ASTM D2783)

Changeover notes

Compatible with mineral oil-based industrial gear oils; generally no special conversion procedure required.
To achieve full benefits: do not mix with other oils and keep the lubrication system clean and free from contamination.

Shell Omala S4 GXV Plus 460, Omala S4 GXV Plus 460, Omala S4 GXV 460, Omala S4 GX 460, Omala HD 460, CLPX, ISO VG 460
