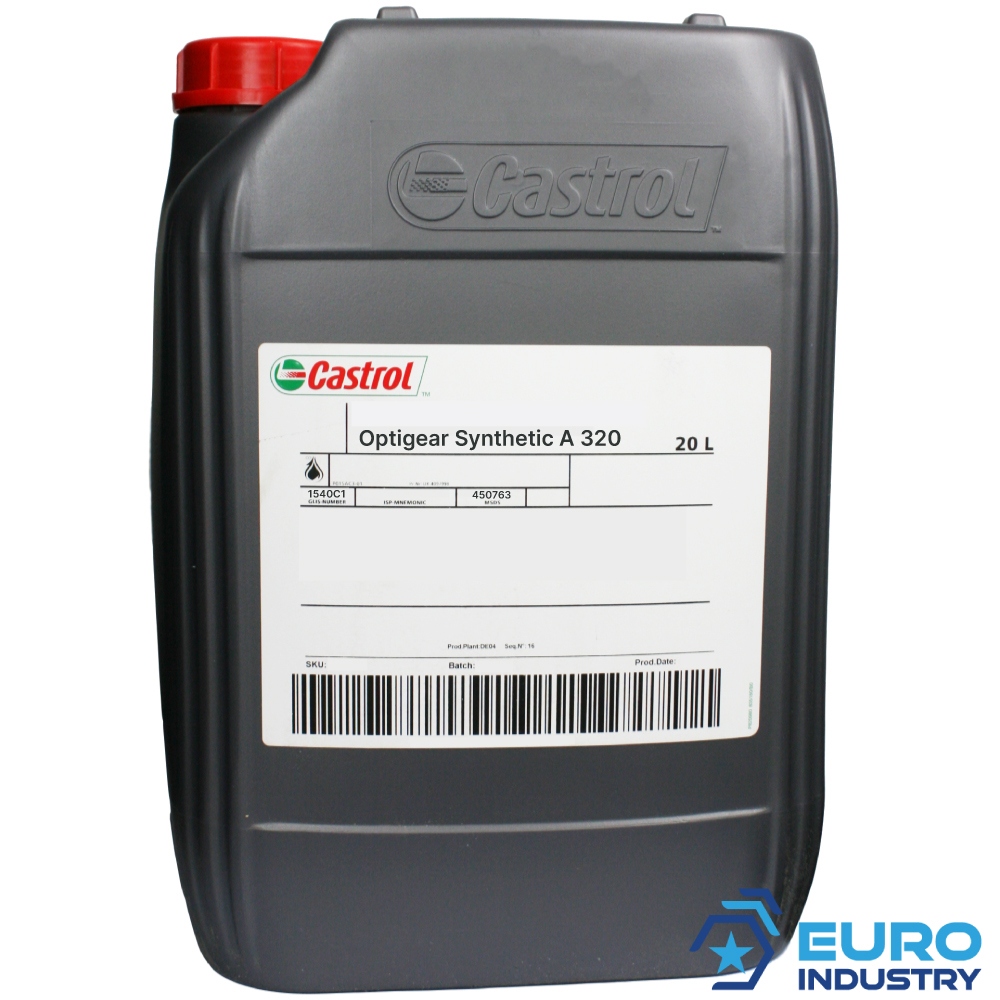

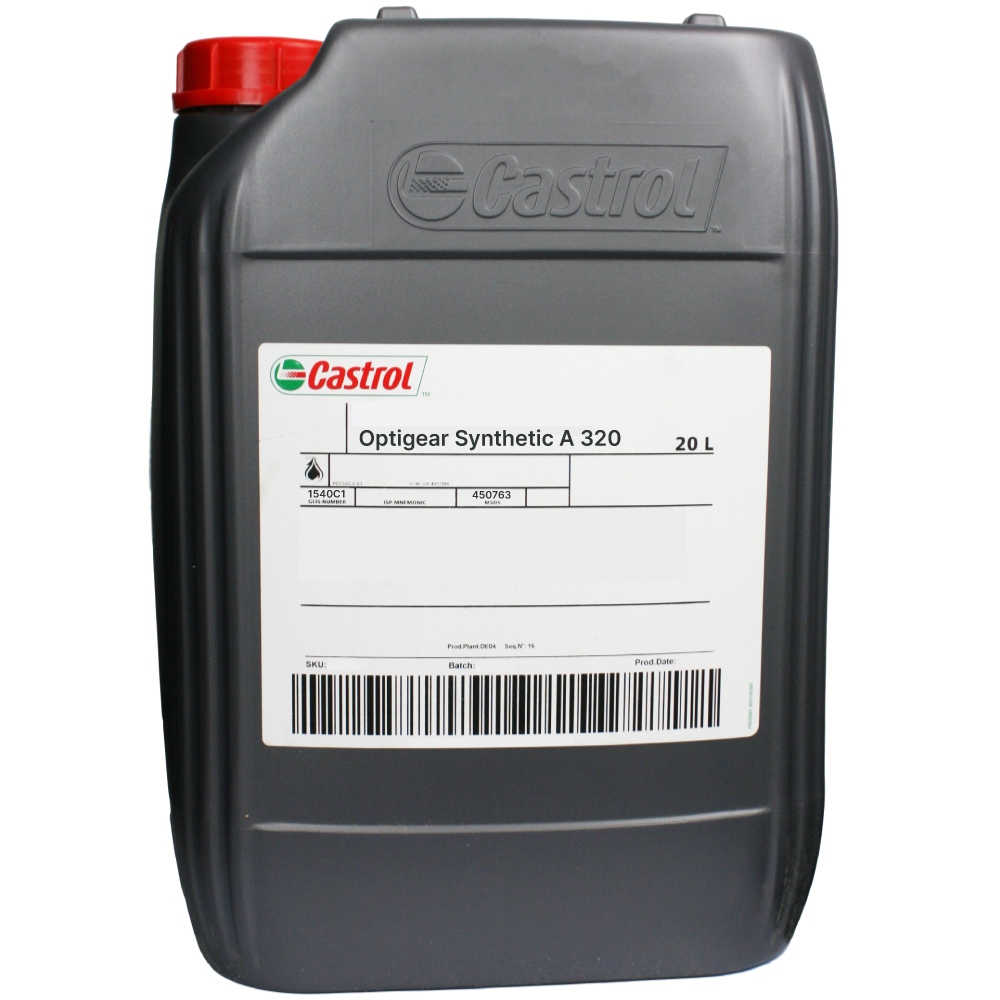

Castrol Optigear Synthetic A 320 Synthetic gear oil 20l canister

Castrol Optigear Synthetic A 320 is a fully synthetic high performance gear oil based on polyalphaolefin with MICROFLUX TRANS®, the load-active additive combination (ISO VG 320).

• Pack size: 20 L canister

Applications

• For especially highly loaded industrial gears - in case of great changes in temperature and extreme loads
• For wind power stations, conveyor belts, crane control gears, lifts, rolling mills etc.
• For highly loaded eccentrics, gear couplings, chain drives, robot drives and joints as well as positive power transmissions
• For all types of rolling and sliding bearings, especially for tapered roller bearings in extruders, shaking screens, vibrators or for spindle presses
• For transport systems operated during winter
• Especially suited for arctic countries such as Canada, North America and Scandinavia

Benefits

• good viscosity/temperature behavior, wide range of operating temperature
• excellent low-temperature behavior, easy starting, good fluidity at extremely low temperatures
• optimum wear protection - smoothing of pitting and scoring
• especially low coefficient of friction leading to reduced friction and energy costs, lowering of oil temperatures
• significantly extended oil change intervals, reduced maintenance costs
• shear-stable
• high corrosion protection, compatible with non-ferrous metals
• compatible with conventional paints and sealing materials

Technical specifications

Manufacturer number	450763
Base	polyalphaolefin
ISO viscosity grade	320
Color (visual)	dark brown
Density at +15°C/+59°F, kg/m³, DIN 51757	870
Kinematic viscosity at +40°C/+104°F, mm²/s, DIN EN ISO 3104	330
Kinematic viscosity at +100°C/+212°F, mm²/s, DIN EN ISO 3104	33
Viscosity index, DIN ISO 2909	140
Pour point, °C, DIN ISO 3016	-36
Pour point, °F	-32.8
Flash point, °C, DIN ISO 2592	220
Flash point, °F	428
Copper corrosion test, DIN EN ISO 2160	1a
Friction coefficient (SRV® test-run time 5a), μ, DIN E 51834	0.055
Wear: ballscar Ø, mm (SRV® test-run time 5a), DIN E 51834	0.50
Wear: profile depth Pt, µm (SRV® test-run time 5a), DIN 51354	1.0
FZG test A/16.6/140 – Scoring load stage (intensified special test)	> 12
FZG micropitting test – Micropitting load carrying capacity (FVA No. 54)	> 10
FE8 bearing test D 7.5/80-80 – Roller wear, mg, DIN 51354-2	4.5
FE8 bearing test D 7.5/80-80 – Cage wear, mg, DIN 51354-2	43.2



Description

OPTIGEAR® SYNTHETIC A are fully synthetic high performance gear oils with MICROFLUX TRANS® additives. They offer optimum wear protection under very extreme thermal loads and operating conditions such as vibrations, oscillating motions and shock loads. The wide range of temperature - especially in case of low starting temperatures - and the high load carrying capacity are special assets of these industrial gear oils. Thermally and mechanically stable polyalphaolefin and the MICROFLUX TRANS® additive combination adjust themselves to the changing operating conditions and actively prevent wear.

---

Hazard statements (CLP)

Signal word: Warning.

Hazard statements (H-statements)

• H317: May cause an allergic skin reaction.
• H412: Harmful to aquatic life with long lasting effects.

Precautionary statements (P-statements)

Prevention:

• P280: Wear protective gloves.
• P273: Avoid release to the environment.
• P261: Avoid breathing vapours.

Response:

• P302 + P352: IF ON SKIN: Wash with plenty of soap and water.
• P333 + P313: If skin irritation or rash occurs: Get medical advice/attention.
• P362 + P364: Take off contaminated clothing and wash it before reuse.

Disposal:

• P501: Dispose of contents/container in accordance with local/regional/national/international regulations.



Information on product safety (Manufacturer, Contact)

BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
