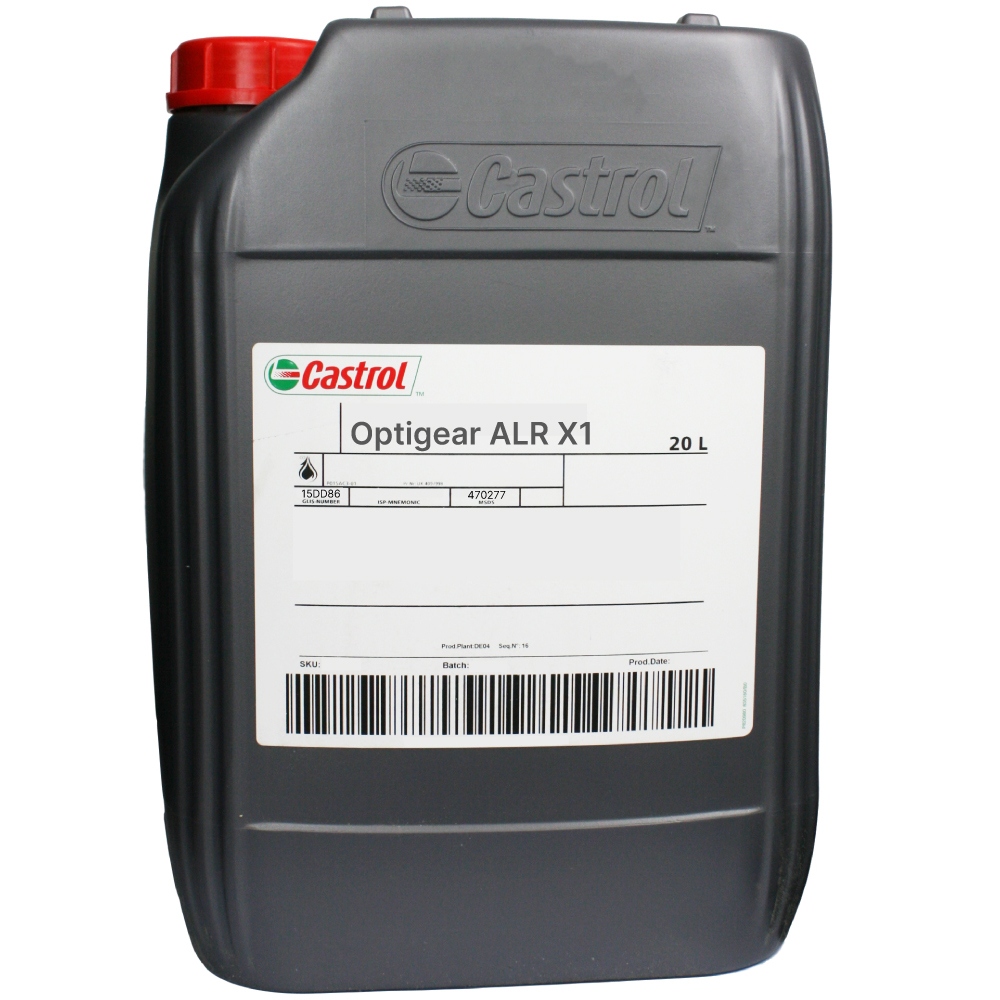

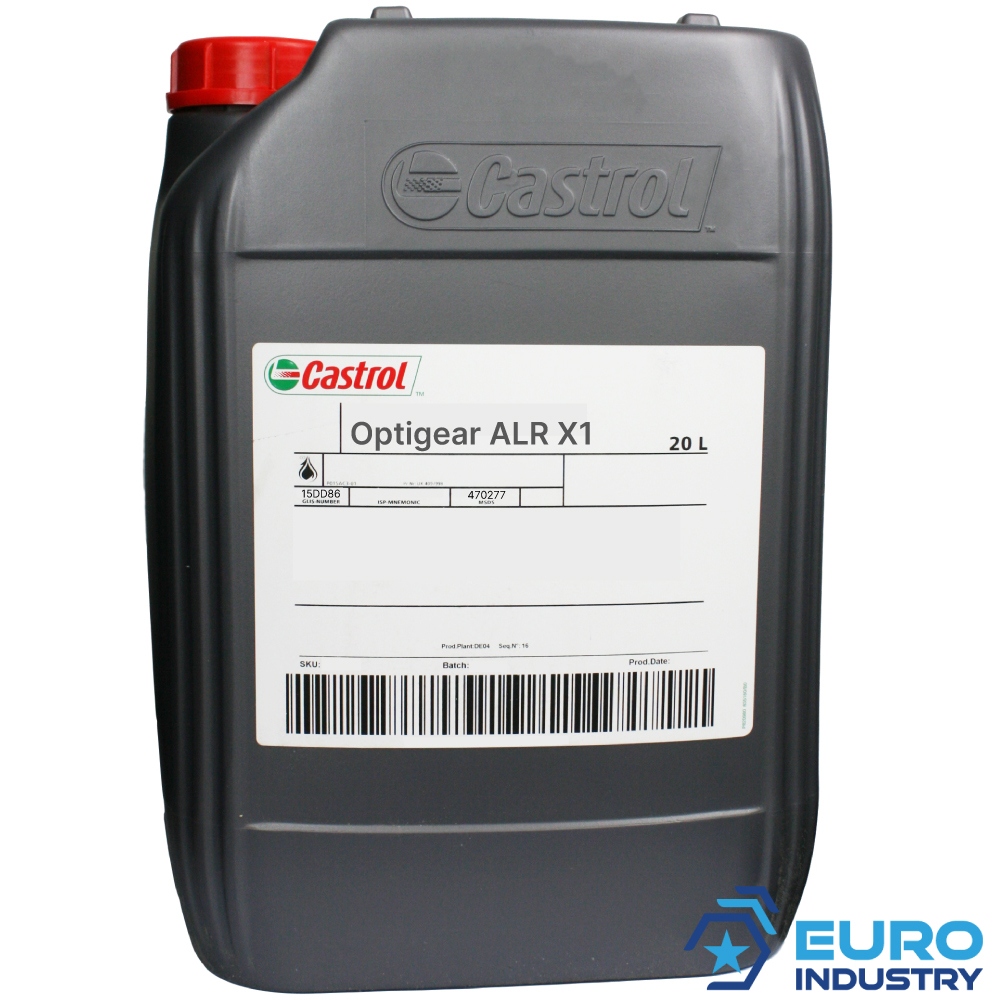

Castrol Optigear ALR X1 Synth. Gear Oil for robots ISO VG 150, 20L

Castrol Optigear™ ALR X1 is a high performance synthetic gear oil (ISO VG 150) designed for lubrication of robot gear boxes.
Optigear™ ALR X1 has also been coloured yellow in order for Robot manufacturers and End Users to immediately visually detect any leakages.

• Pack size: 20 L canister
• Also available in: 208 L drum

Applications

• Robot gear box systems where oil lubrication is preferred to grease due to high speeds and ease of change over
• Intended to extend oil change intervals versus current commercially available products, allowing for lower downtime and increased maintenance intervals
• Suitable for both low and high temperature applications due to very low pour point and excellent viscosity and temperature characteristics

Specifications & Approvals

• DIN Classification: CLP
• Meets the requirements of: DIN 51517 Part 3

Benefits

• Good thermal and oxidative stability provides reliable operation and extended operating life when compared to mineral oil based products
• Inherently high viscosity index (VI) makes the product suitable for operations over a wide temperature range
• Good anti-wear and load carrying abilities minimises gear wear and prolongs gear tooth life
• Reduced down time through water separation and demulsification characteristics resulting in prolonged lubricant life and increased equipment reliability
• PAO based lubricant that provides good compatibility with seals, paints and mineral oil based lubricants
• Coloured yellow to immediately visually detect any leakages

Technical specifications

Manufacturer number	15DD86
Grade	ISO 150
Appearance	Clear yellow oil
Density @ 15 C, kg/l, ISO 12185 / ASTM D4052	0.87
Kinematic Viscosity @ 40 C, mm2/s, ISO 3104 / ASTM D 445	150
Kinematic Viscosity @ 100 C, mm2/s, ISO 3104 / ASTM D 445	17.8
Viscosity Index, ISO 2909 / ASTM D2270	>145
Pour Point, °C, ISO 3016 / ASTM D97	-42
Foam, Sequence I, Tendency/Stability, ml/ml, ISO 6247 / ASTM D892	10/0
Water Separation @ 82 C (40/37/3), minutes, ISO 6614 / ASTM D1401	15
Flash Point, Open Cup Method, °C, ISO 2592 / ASTM D92	230
Copper corrosion (3 hrs@100 C), Rating, ISO 2160 / ASTM D130	1
Rust test - synthetic seawater (24 hrs), Rating, ISO 7120 / ASTM D665B	Pass
Four Ball Wear, Scar diameter, mm, ASTM D2783	0.3
FZG Gear Scuffing test - A/8.3/90, Failure Load Stage, ISO 14635-1	12
FE-8 Bearing Wear test (F.562831.01-7.5/80-80), Roller wear (Mw50), mg, DIN 51819-3	<2

Product Description

Castrol Optigear™ ALR X1 is a high performance synthetic gear oil designed for lubrication of robot gear boxes. Based on a combination of additives to provide excellent bearing performance, good load carrying and outstanding thermal stability. This synthetic based gear oil is also designed to give an extremely low sludge forming propensity as well as good elastomer/seal compatibility with minimal interaction. Optigear ALR X1 has also been coloured yellow in order for Robot manufacturers and End Users to immediately visually detect any leakages.
Optigear ALRX1, Optigear ALR-X1



Information on product safety (Manufacturer, Contact)

BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
