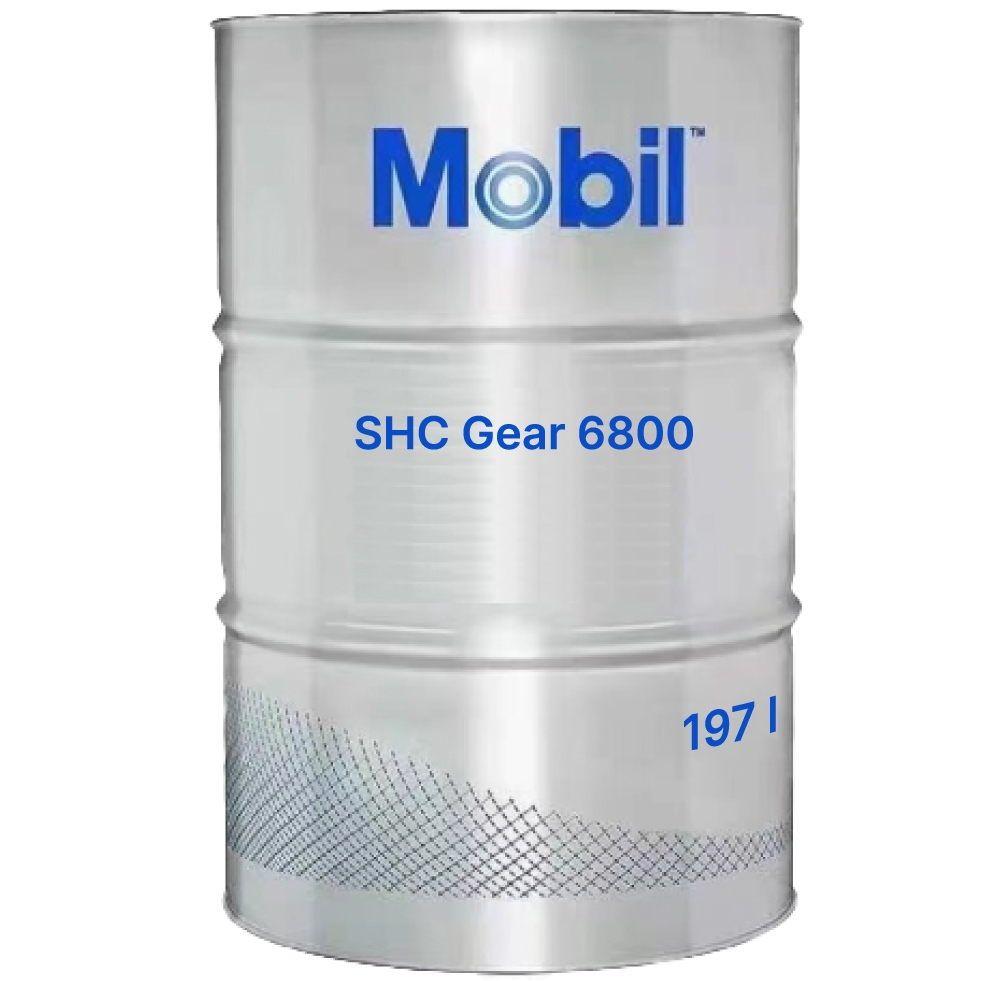

Mobil SHC Gear 6800 Heavy-Duty synthetic gear oil ISO VG 6800, 197L
€ 4639.81 4,639.81 incl. VAT (3,899.00 excl. VAT), per piece *
Availability: on request
Packaging unit: 1 piece
Manufacturer: Mobil
Country of origin: FR/0001
Customs tariff number: 34039900
Weight per piece: 200.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Mobil SHC Gear 6800 is a supreme performance heavy-duty synthetic gear oil (ISO VG 6800) primarily designed for all kinds of enclosed gearing as well as plain and rolling element bearings.
- Pack size: 197 l drum
- Also available in: 20 l bucket
Applications
- Industrial enclosed spur, helical and bevel gears, especially slow speed and/or high load units
- Plain and rolling element bearings, especially in slow speed and/or high load applications
- Railroad DC Traction Motor drives (Mobil SHC Gear 3200 and 6800)
- Certain open gear applications such as oiling pinions or specially designed circulation systems (Mobil SHC Gear 3200 and 6800)
Specifications and Approvals
- FZG Scuffing, Fail Load Stage, A/8.3/90, ISO 14635-1(mod): 13+
- ASTM D665 Rust Characteristics, Procedure B: Pass
- ASTM D130 Copper Strip Corrosion: 1B
Features
- Outstanding load-carrying and antiwear properties
- Very high viscosity grades available without loss of performance
- Can convert all-loss systems to circulation
- Can replace grease in certain applications
- High viscosity index for wide temperature performance
- Low traction properties reduce operating temperature
- Outstanding thermal and oxidation stability
- Light color reduces maintenance during inspections
Technical specifications
| Manufacturer number | 151667 |
| Grade | ISO VG 6800 |
| Viscosity Index, ASTM D2270 | 180 |
| Kinematic Viscosity @ 40 C, mm2/s, ASTM D445 | 8200 |
| Kinematic Viscosity @ 100 C, mm2/s, ASTM D445 | 365 |
| Pour Point, °C, ASTM D5950 | -6 |
| Flash Point, °C, ASTM D92 | 230 |
| Density @ 15.6 C, kg/l, ASTM D1298 | 0.90 |
| Copper Strip Corrosion, 3 h, 100 C, ASTM D130 | 1B |
| FZG Scuffing, ISO 14635-1(mod) | 13+ |
| Foam, Seq I/II/III, Tendency/Stability, ml, ASTM D892 | 0/0 |
| Four-Ball Wear Test, Load Wear Index, kgf, ASTM D2783 | 48 |
| Four-Ball EP Weld Load, kgf, ASTM D2783 | 250 |
| Rust Test, ASTM D665, Proc. B | Pass |
Product information
Mobil SHC Gear 6800 is part of the Mobil SHC Gear Series, formulated using advanced synthetic base oils and proprietary additives to provide excellent protection under extreme operating conditions. It offers outstanding resistance to wear, even under shock loading, and has excellent oxidation stability for long oil life. Designed for low-speed, high-load gear systems and bearings, it ensures smooth operation across a wide temperature range. With a naturally high viscosity index and low traction coefficient, it reduces friction, operating temperature, and improves gear efficiency. Mobil SHC Gear 6800 is compatible with mineral oils but should be used after system cleaning to avoid performance loss.
Mobil SHC Gear6800, Mobil SHC Gear-6800
EXXONMOBIL CENTRAL EUROPE HOLDING GMBH, Ericusspitze 2, 20457 Hamburg, GERMANY, +49 40 6393 0, [email protected], www.exxonmobil.de
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 151667 |
