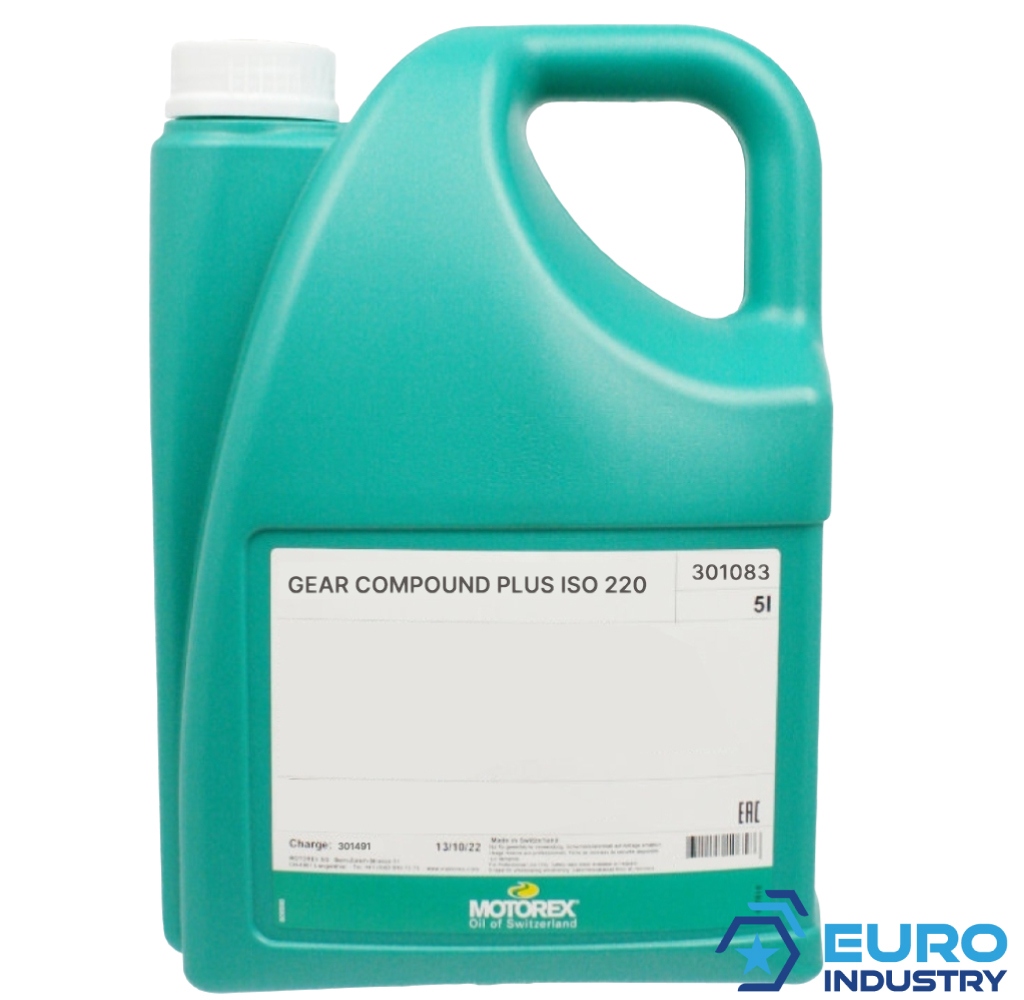

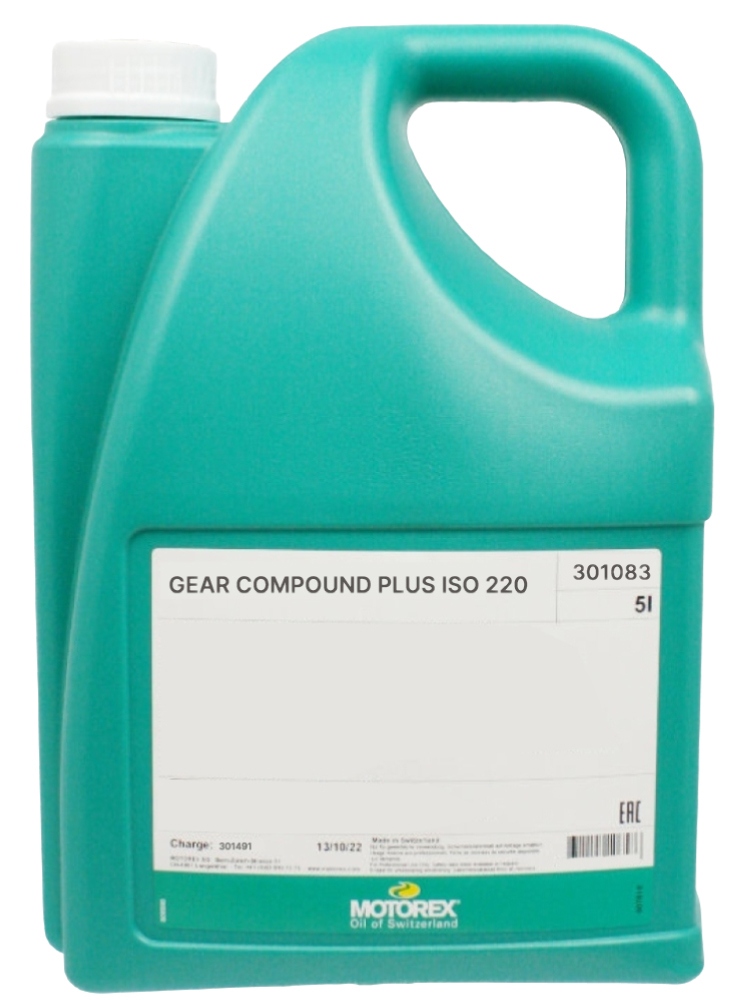

Motorex GEAR COMPOUND PLUS ISO 220 High-pressure gear oil 5L canister

Motorex GEAR COMPOUND PLUS ISO 220 High-pressure gear oil 5L canister

pics/Motorex/eis-copyright/GEAR COMPOUND PLUS 220/motorex-gear-compound-plus-iso-220-high-pressure-gear-oil-05.jpg

€ 57.06 57.06 incl. VAT (47.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Motorex

Country of origin: CH/0039

Customs tariff number:

Weight per piece: 5.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

three + five = ?

( Examples: two + three = 5, three - five = -2 )

Motorex GEAR COMPOUND PLUS 220 is a mineral-based high performance gear oil (CLP, ISO VG 220). At high, abrupt loads, a protective oil film always remains between the force-transmitting surfaces.

Application

The oil is recommended for use in a number of spur gears, bevel gears and planetary gears produced by well-known manufacturers.
The remarkable quality of this lubricant is particularly apparent when used under difficult conditions.
It is therefore perfect for industrial gears used in gravel plants, mountain railways, industrial plants and sewage-treatment plants.

Specifications & Approvals

ISO 12925-1
ISO 6743-6 L-CKB
ISO 6743-6 L-CKC
DIN 51517-3 CLP
AGMA 9005/E02
AIST 224 (U.S. STEEL)
SEB 181226
FLENDER, REV.14

Characteristics

Excellent corrosion protection
High level of wear protection
High micro-pitting resistance
Compatible with the majority of seal materials used
Very good demulsifying properties
Low foaming tendency
Excellent shear stability
High ageing and oxidation stability
Volume: 5 l canister
Also available in: 1 l canister, 20 l canister, 25 l canister, 12 X 1 l carton, 60 l drum, 200 l barrel

Technical specifications

Manufacturer number			301083
Colour			brown
Density at 20 °C	g/cm³	ASTM D4052	0.895
Viscosity at 40 °C	mm²/s	DIN 51562-1	220
Viscosity at 100 °C	mm²/s	DIN 51562-1	18.9
Viscosity index		DIN ISO 2909	96
Pourpoint	°C	ASTM D5950	-24
Flash point C.O.C.	°C	DIN EN ISO 2592	>200
Demulsifying capability / 54°C	min.	DIN 51599	>60
FZG - test		DIN 51354-2	>12
micro pitting endurance test		FVA-54/II	GFT hoch
micro pitting stage test		FVA-54/II	GFT hoch
Copper corrosion		DIN EN ISO 2160	1
Steel corrosion		DIN ISO 7120 DIN 51585	0
TAN NZ	mg KOH/g	ASTM D 664-95 DIN 51558-1	0.3
