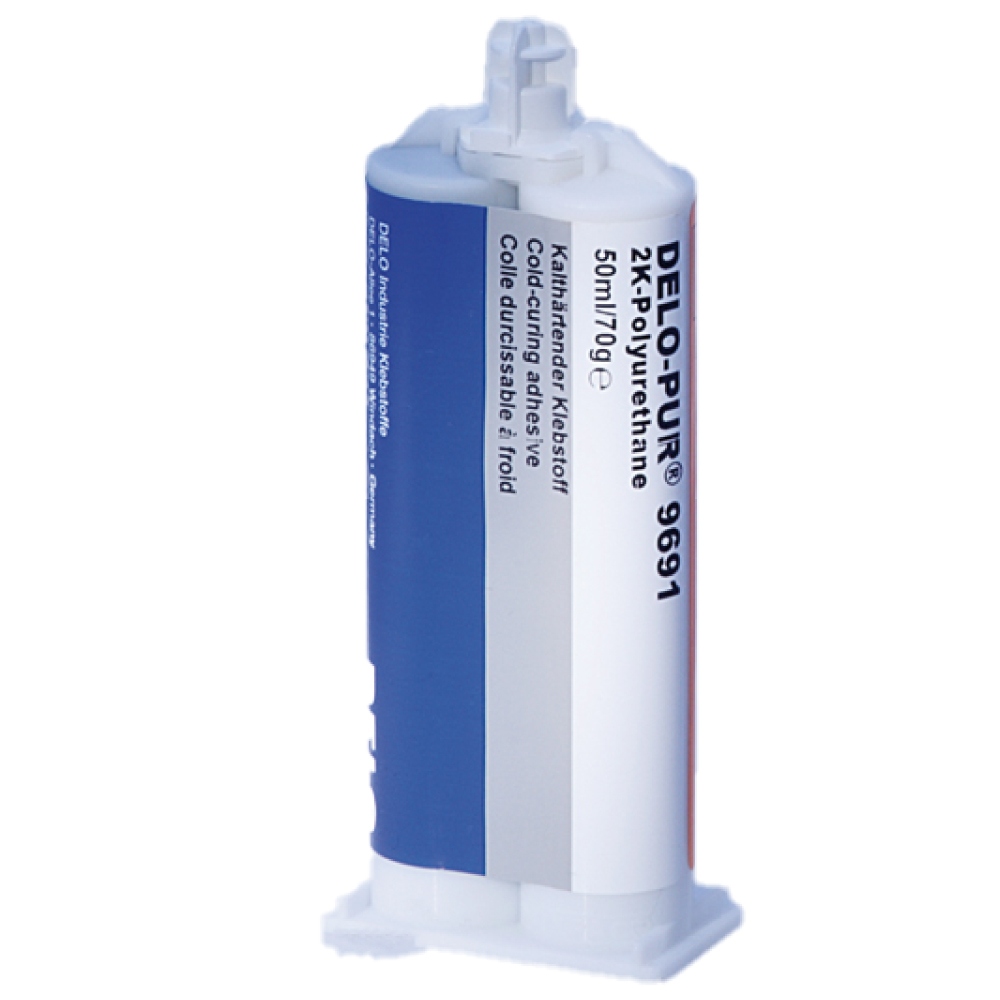

Delo-Pur 9691 Two part polyurethane adhesive, black 50ml cartridge

Delo-Pur 9691 Two part polyurethane adhesive, black 50ml cartridge

pics/DELO/Delo-Pur 9691/delo-pur-9691-two-part-polyurethane-adhesive-01.jpg

€ 33.26 33.26 incl. VAT (27.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: DELO

Country of origin: DE/0004

Customs tariff number: 39095090

Weight per piece: 100 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

two - two = ?

( Examples: two + three = 5, three - five = -2 )

DELO-PUR 9691 is a two-component polyurethane adhesive, medium-viscous, filled, and cures at room temperature.

Pack size: 50 ml cartridge
Also available in: 200 ml cartridge

Applications

For the bonding of metal, plastic and sometimes even elastomers
Initial strength is reached fast
Good tough-elastic properties
Very good strengths under static and dynamic conditions
Mixture is flowable
Also suitable for small castings
The cured product is normally used in a temperature range of -40 °C to +125 °C; depending on the application, other limits may be more reasonable

Characteristics

Compliant with RoHS directive 2015/863/EU
Successfully tested according to UL 94 HB
Tested for biocompatibility per DIN EN ISO 10993-5 (Cytotoxicity)
Mixing ratio A:B = 1:1 (By weight or volume)
Processing time (3 g batch, 23 °C): 10 min
Initial strength (1–2 MPa) at 23 °C: 90 min
Functional strength (>10 MPa) at 23 °C: 6 h
Final strength at 23 °C: 72 h

Processing

Supplied ready for use and can be processed well from the original container
Components A and B must be mixed homogeneously in the mixing ratio stated below
Using the DELO-AUTOMIX system for processing is especially advantageous
The surfaces to be bonded must be dry as well as free of dust, grease and other contaminations
Use DELOTHEN cleaners for the cleaning of bonding surfaces

Curing

At room temperature (Ca. 23 °C)
Increased temperatures accelerate curing
Applying heat could change physical characteristics

Technical specifications

Density	1.45 g/cm³
Viscosity component A	80,000 mPa·s
Viscosity component B	80,000 mPa·s
Tensile shear strength (Al/Al, 72 h, RT)	13 MPa
Floating roller peel resistance (St/St)	6 N/mm
Tensile strength	13 MPa
Elongation at tear	20 %
Young’s modulus	500 MPa
Shore hardness D	69
Glass transition temperature	49 °C
Coefficient of linear expansion	162 ppm/K
Water absorption (24 h, RT)	0.24 %
Decomposition temperature	225 °C
Dielectric strength	16.6 kV/mm
CTI	600

Hazard Information (CLP)

Signal word: Danger (only Part B)

Hazard Statements (H-statements)

H315: Causes skin irritation.
H317: May cause an allergic skin reaction.
H319: Causes serious eye irritation.
H332: Harmful if inhaled.
H334: May cause allergy or asthma symptoms or breathing difficulties if inhaled.
H335: May cause respiratory irritation.
H351: Suspected of causing cancer.
H373: May cause damage to organs through prolonged or repeated exposure.

Precautionary Statements (P-statements)

Prevention:

P201: Obtain special instructions before use.
P280: Wear protective gloves (1–4 h, e.g. Viton®; <15 min Nitrile).
P280: Wear eye or face protection.
P284: Wear respiratory protection (organic vapour filter Type A recommended).
P261: Avoid breathing vapour.
P264: Wash thoroughly after handling.

Response:

P304 + P340: IF INHALED: Remove person to fresh air and keep comfortable for breathing.
P312: Call a POISON CENTER or doctor if you feel unwell.
P302 + P361 + P353: IF ON SKIN: Remove contaminated clothing and rinse skin with water/shower.
P333 + P313: If skin irritation or rash occurs: Get medical advice/attention.
P305 + P351 + P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing.
P337 + P313: If eye irritation persists: Get medical advice/attention.

Storage and Disposal

P403 + P233: Store in a well-ventilated place. Keep container tightly closed.

Other Relevant Information

Component A is not classified under CLP.

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,

Information on product safety (Manufacturer, Contact)

DELO Industrie Klebstoffe GmbH & Co. KGaA, DELO-Allee 1, 86949 Windach, GERMANY, +49 8193 9900-0, [email protected], www.delo.de

delo-pur-9691-two-part-polyurethane-adhesive-tds-datasheet.pdf (286.98 KB)
