DELO-DUOPOX® AD894 (formerly Delo Automix® AD894) is a flowable 2-component epoxy adhesive that cures at room temperature. It is ideal for industrial bonding applications in mechanical engineering, electronics and the automotive sector. The black, mineral-filled formulation is suitable for use with dual-cartridge systems.

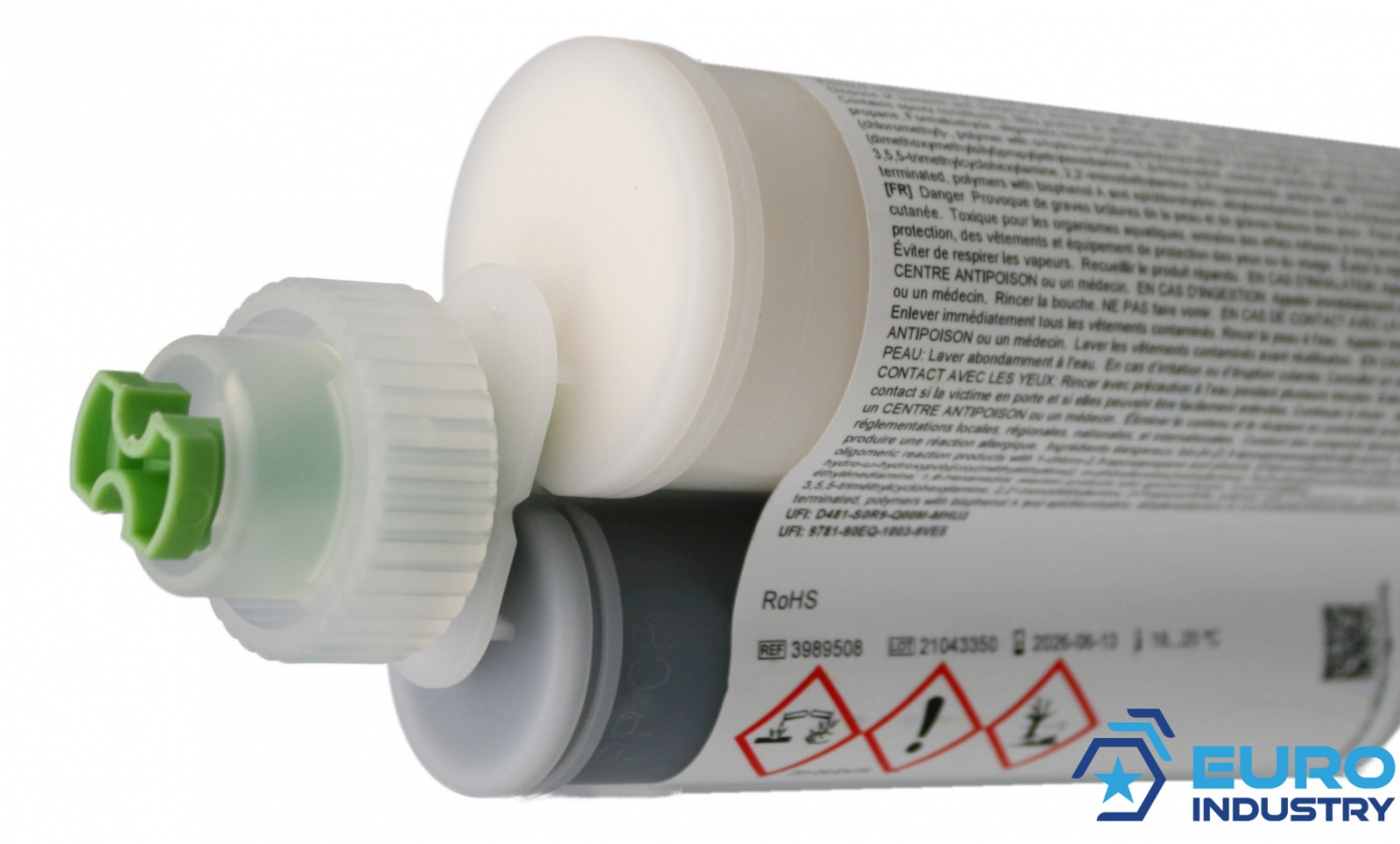

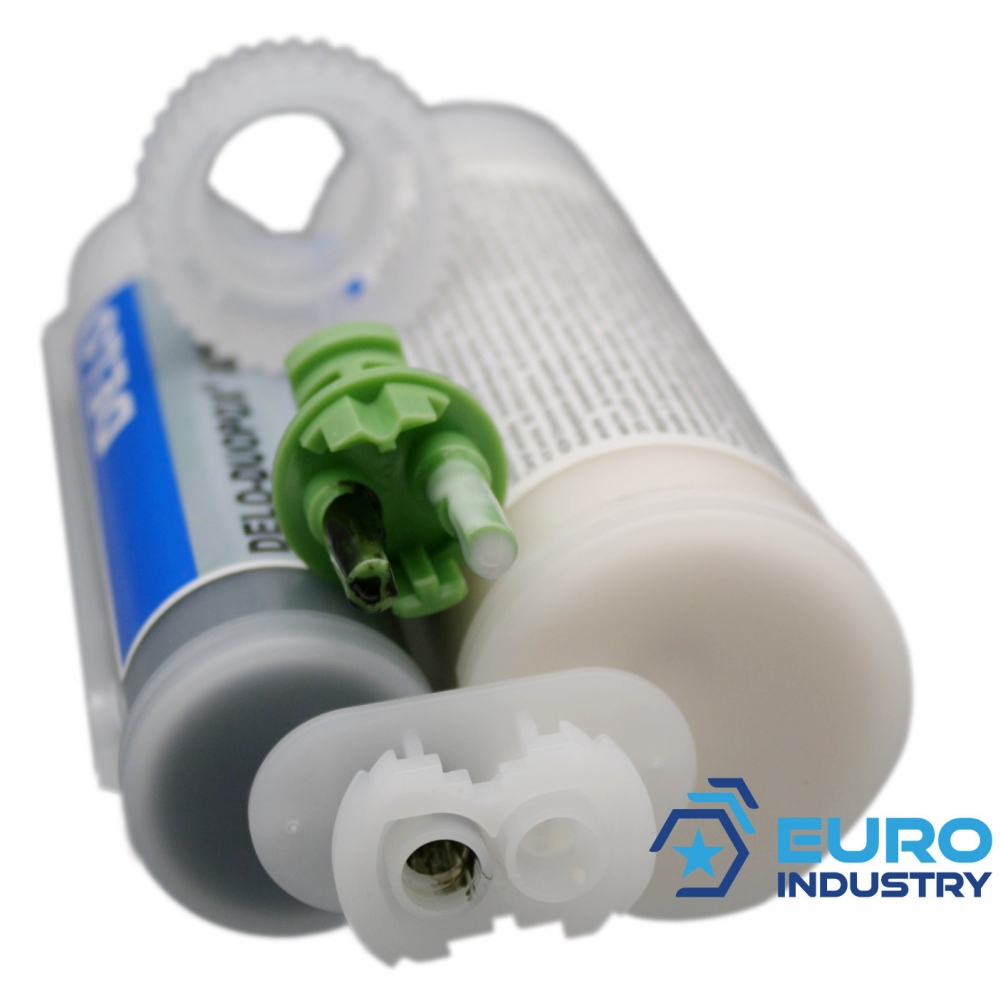

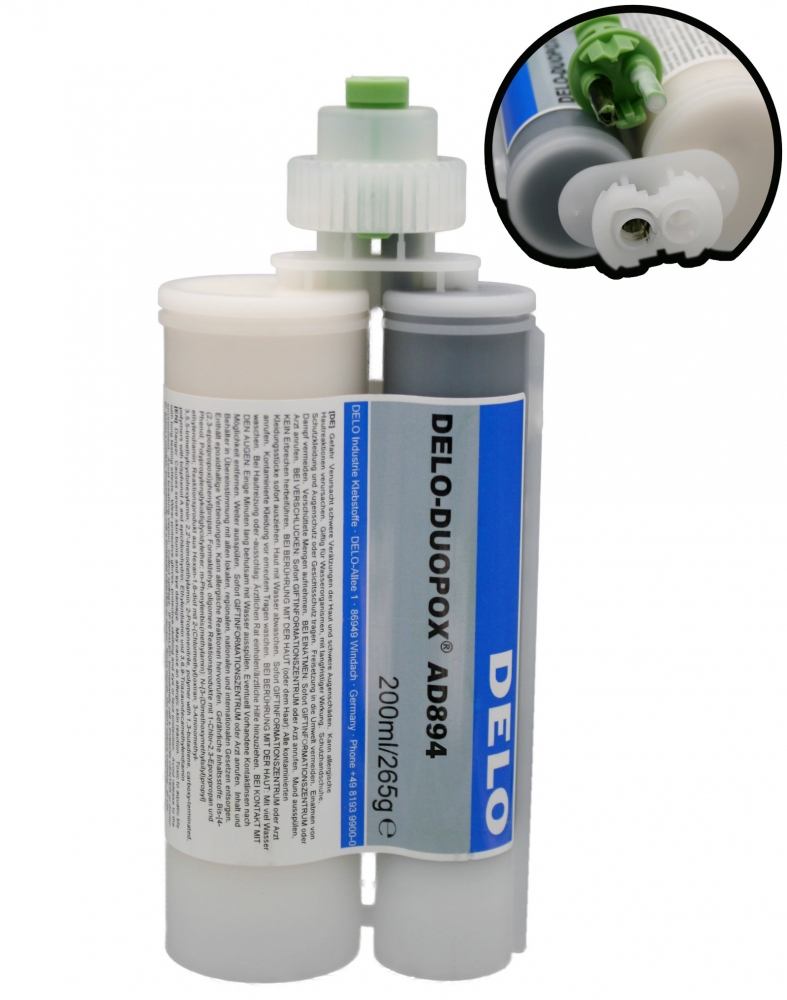

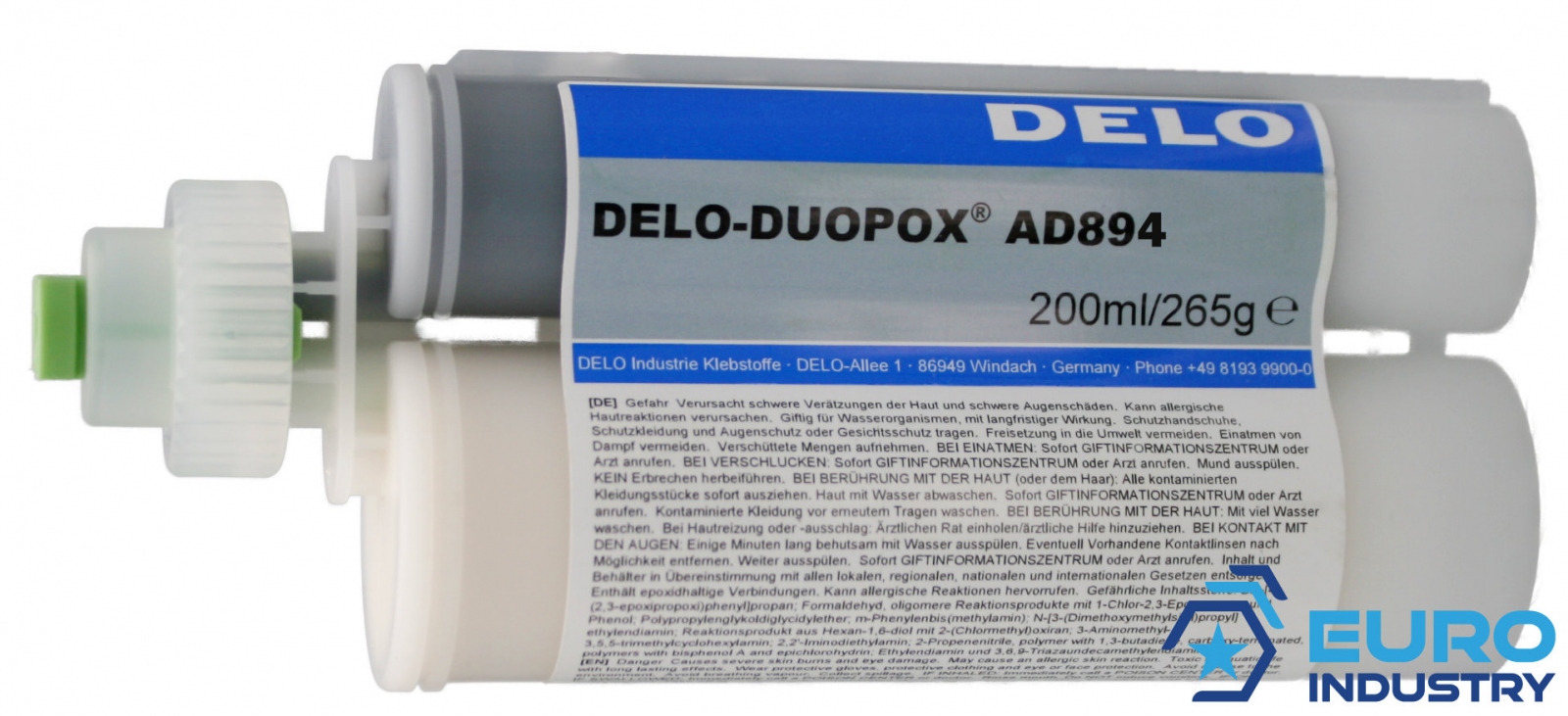

Pack size: 200 ml double cartridge
Also available: 50 ml double cartridge

Applications

Bonding of metals, plastics, ceramics and glass
Electronics production, mechanical assembly, automotive
Joints exposed to thermal stress
Operating temperature: -40 °C to +140 °C

Features

High-strength 2K epoxy adhesive
Processed via dual cartridge system (mix ratio 2:1)
Fast cure at room temperature (5 h / 7 h / 24 h)
Flowable for gap-filling and automated dispensing
RoHS and VOC compliant (2015/863/EU, GB33372-2020)
Excellent mechanical performance (up to 41 MPa tensile strength)

Technical Data

Physical Properties
Color (cured)	Black
Transparency	Opaque

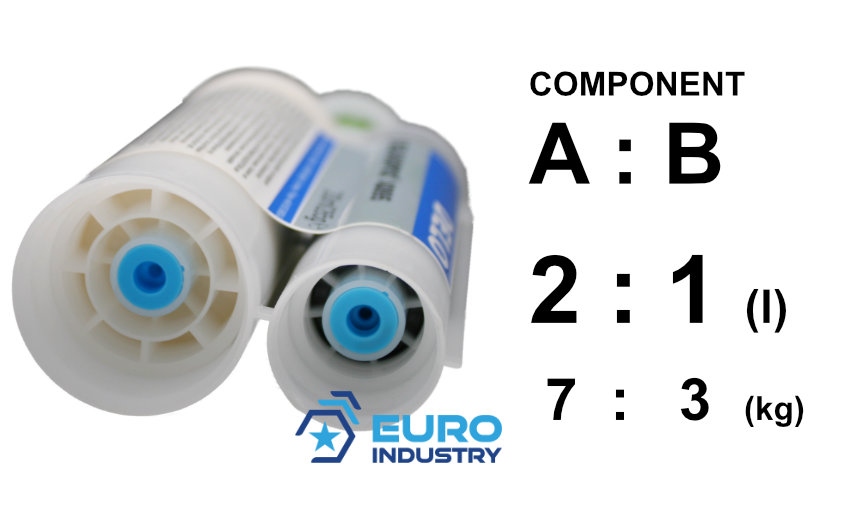

Mix ratio (vol / wt)	2:1 / 7:3
Density A / B	1.37 / 1.18 g/cm³
Viscosity A / B	40,000 / 30,000 mPa·s
Pot life (100 g, RT)	45 min
Shrinkage	4 vol.%
Water absorption (24 h)	0.3 wt.%
Mechanical Properties
Shear strength (DIN / DELO Norm)	19 / 31 MPa
Tensile strength	41 MPa
Elongation at break	2.1 %
Shore hardness D	73
Elastic modulus	2,300 MPa
Peel resistance (steel)	0.7 N/mm
Thermal Properties
Operating temperature range	-40 °C to +140 °C
Glass transition temperature (Tg)	63 °C
Decomposition temperature	215 °C
CTE (30–50 °C / 70–150 °C)	91 / 178 ppm/K
Electrical Properties
Dielectric strength	14 kV/mm
Surface resistivity	>1E13 Ohm
Volume resistivity	>1E13 Ohm·cm
Tracking resistance (CTI)	600
Relative permittivity (1 MHz / 1 GHz)	4.0 / 3.7

Instructions for Use

Dispense via dual cartridge with static mixer
Clean and pre-treat surfaces before bonding
Use within 45 minutes after mixing
Heat can accelerate curing and change properties

Recommended Accessories

Mixing nozzles: Delo F 200 mixing nozzle long
Dispenser gun: COX VBM 200 MR
Cleaner: Delothen NK1 400ml spray

Storage & Shelf Life

6 months at +18 °C to +25 °C (unopened)
Store dry, frost-free, in original packaging

DELO DUOPOX AD-894, black 2K epoxy adhesive, flowable glue, industrial bonding

Hazard Information (CLP)

Signal word: Danger (Part A & B)

Hazard Statements (H-statements)

H314: Causes severe skin burns and eye damage. (Part A & B)
H317: May cause an allergic skin reaction. (Part A & B)
H360F: May damage fertility. (Part A)
H411: Toxic to aquatic life with long lasting effects. (Part A & B)

Precautionary Statements (P-statements)

Prevention:

P201: Obtain special instructions before use. (Part A)
P280: Wear protective gloves/protective clothing/eye protection/face protection. (Part A & B)
P273: Avoid release to the environment. (Part A & B)
P261: Avoid breathing vapour. (Part B)

Response:

P301 + P310: IF SWALLOWED: Immediately call a POISON CENTER or doctor. (Part A & B)
P330: Rinse mouth. (Part A & B)
P331: Do NOT induce vomiting. (Part A & B)
P303 + P361 + P353: IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water/shower. (Part A & B)
P304 + P340: IF INHALED: Remove person to fresh air and keep at rest in a position comfortable for breathing. (Part A & B)
P305 + P351 + P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing. (Part A & B)
P310: Immediately call a POISON CENTER or doctor. (Part A & B)
P363: Wash contaminated clothing before reuse. (Part A & B)

Storage and Disposal

No special storage instructions required. (Part A & B)
Dispose of contents/container in accordance with local, regional, national and international regulations. (Part A & B)

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,

Information on product safety (Manufacturer, Contact)

DELO Industrie Klebstoffe GmbH & Co. KGaA, DELO-Allee 1, 86949 Windach, GERMANY, +49 8193 9900-0, [email protected], www.delo.de
