Delo Duopox SJ8665 Universal 2-component epoxy resin adhesive 50ml

DELO-DUOPOX® SJ 8665 Universal 2-component epoxy resin adhesive, room-temperature curing, medium viscosity, unfilled

Field of application

• High-strength construction adhesive
• Multi-purpose
• In applications with elevated temperature stress
• In mechanical engineering, car manufacturing and tool construction
• In electrical engineering and electronics
• The cured product is normally used in a temperature range of -40 °C to +180 °C; depending on the application, other limits may be more reasonable

Features

• Curing at room temperature, option to speed up curing by adding heat
• Optional single-component application by using a side-by-side cartridge system
• Multi-purpose 2-part epoxy glues
• Robust
• Temperature range up to +140 °C
• High degree of resistance to many chemicals and heat

Base

• Epoxy resin adhesive
• Two-component

Curing

• At room temperature (approx. 23 °C)
• Increased temperatures (e. g. +60 °C to +120 °C) accelerate curing
• Applying heat could change physical characteristics

Technical specifications

• Color: black
• Filler: minerals

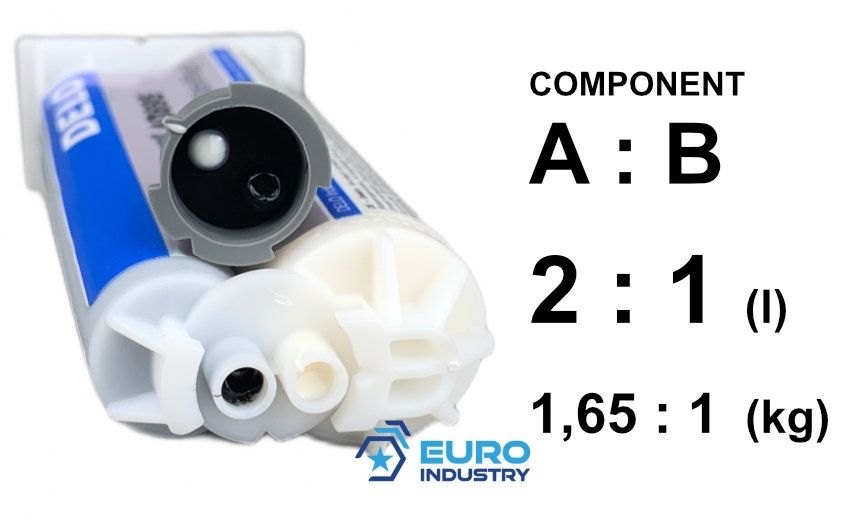

• Mixing ratio: (A : B) according to volume: 2 : 1, (A : B) according to weight: 1.65 : 1
• Density of component A [g/cm³] DIN 66137-2, measured with helium pycnometer at room temperature (approx. 23 °C): 1.16
• Density of component B [g/cm³] DIN 66137-2, measured with helium pycnometer at room temperature (approx. 23 °C): 1.41
• Viscosity of component A [mPas] at 23 °C, rheometer (Paar) gap 500 μm, shear rate 2/s : 250000
• Viscosity of component B [mPas] at 23 °C, rheometer (Paar) gap 500 μm, shear rate 2/s : 40000
• Maximal reaction temperature [°C] in 100 g preparation : 166
