Kyodo Yushi Multemp FZ No. 00 Fluid Grease for robotics gearboxes 16kg

Kyodo Yushi Multemp FZ No. 00 Fluid Grease for robotics gearboxes 16kg

pics/kyodo-yushi/MULTEMP FZ No.00/kyodo-yushi-multemp-fz-no00-fluid-lubricating-grease-for-robotics-gearbox-hobbock-16kg-ol.jpg

€ 713.94 713.94 incl. VAT (599.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: Kyodo Yushi

Country of origin: DE/0004

Customs tariff number: 27101999

Weight per piece: 18.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

two + one = ?

( Examples: two + three = 5, three - five = -2 )

Kyodo Yushi MULTEMP FZ No. 00 is a lithium-thickened semi-fluid grease (NLGI 00) with organic molybdenum, based on synthetic hydrocarbon oil and refined mineral oil for reduction gears (e.g. robotics gearboxes).

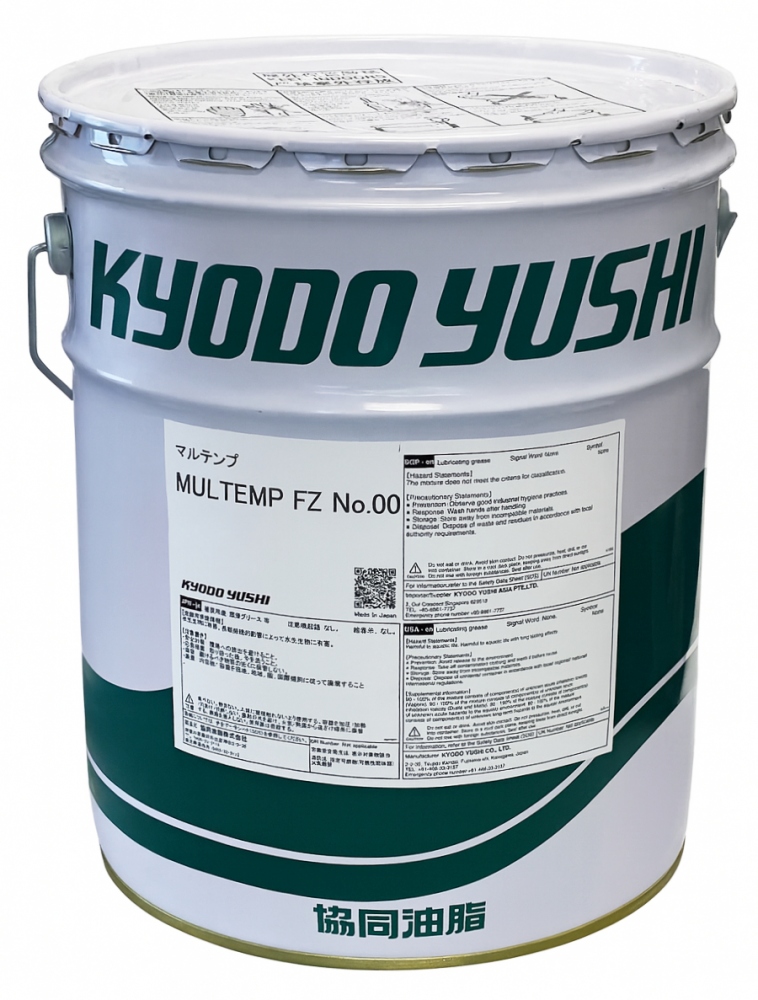

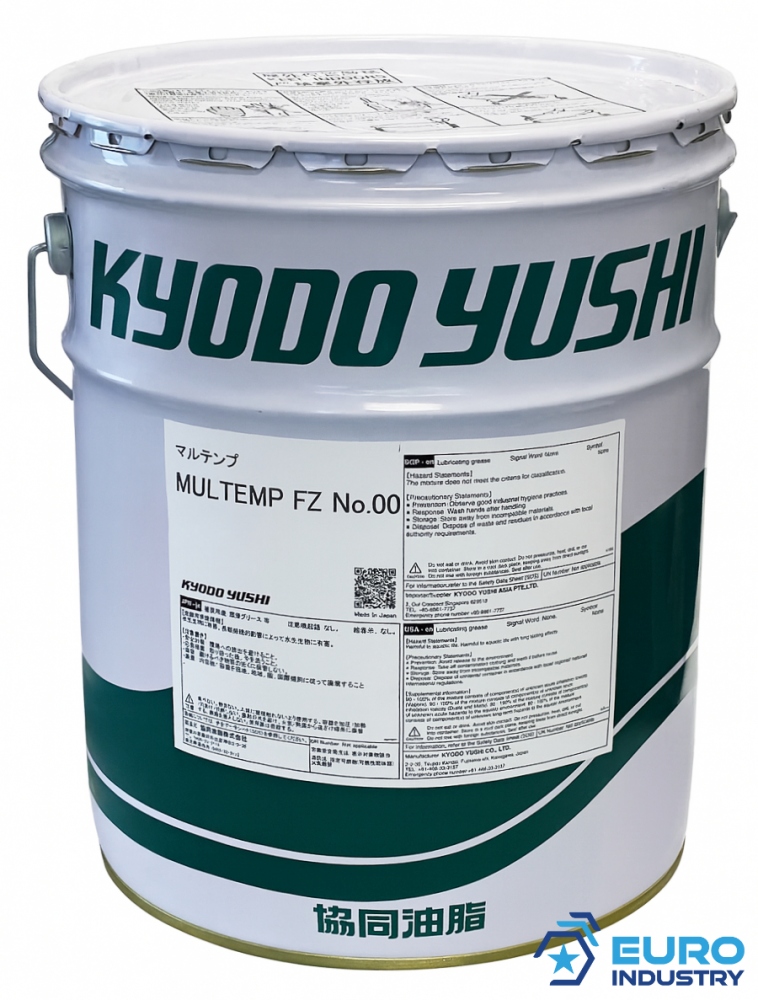

Pack size: 16 kg pail

Applications

Lubrication of reduction gears (e.g. robotics reducers) with complex lubrication points
Use cases requiring the flow properties of an NLGI 00 grease
Typical service temperature: −40 °C to +130 °C

Features

EP performance and excellent wear resistance for heavily loaded gear contacts
Low low-temperature torque for reliable start-up in cold conditions
Low evaporation loss and passed copper strip corrosion test

Technical Data

Base oil	Synthetic hydrocarbon oil + mineral oil
Thickener	Lithium soap
Additives	organic molybdenum
NLGI grade	00
Color / Appearance	yellow-brown, semi-solid
Worked penetration (60 strokes, 25 °C)	415 (ASTM D217)
Dropping point	183 °C (ASTM D566)
Copper strip corrosion (100 °C, 24 h)	pass (ASTM D4048)
Evaporation loss (99 °C, 22 h)	0.78 % (ASTM D972)
Low-temperature torque (−30 °C)	Starting 190 mN·m; Running 35 mN·m (ASTM D1478-63)
Four-ball EP	L.N.S.L. 1236 N; W.P. 3923 N; L.W.I. 608 (ASTM D2596)
Service temperature	−40 °C to +130 °C

Directions for use

Clean the lubrication point; remove old grease where possible.
Do not mix with other greases; check material compatibility.
Apply with spatula/brush or suitable dispensing systems.

Multemp FZ00, MULTEMP FZ-00 grease, Kyodo Yushi FZ-00 grease
