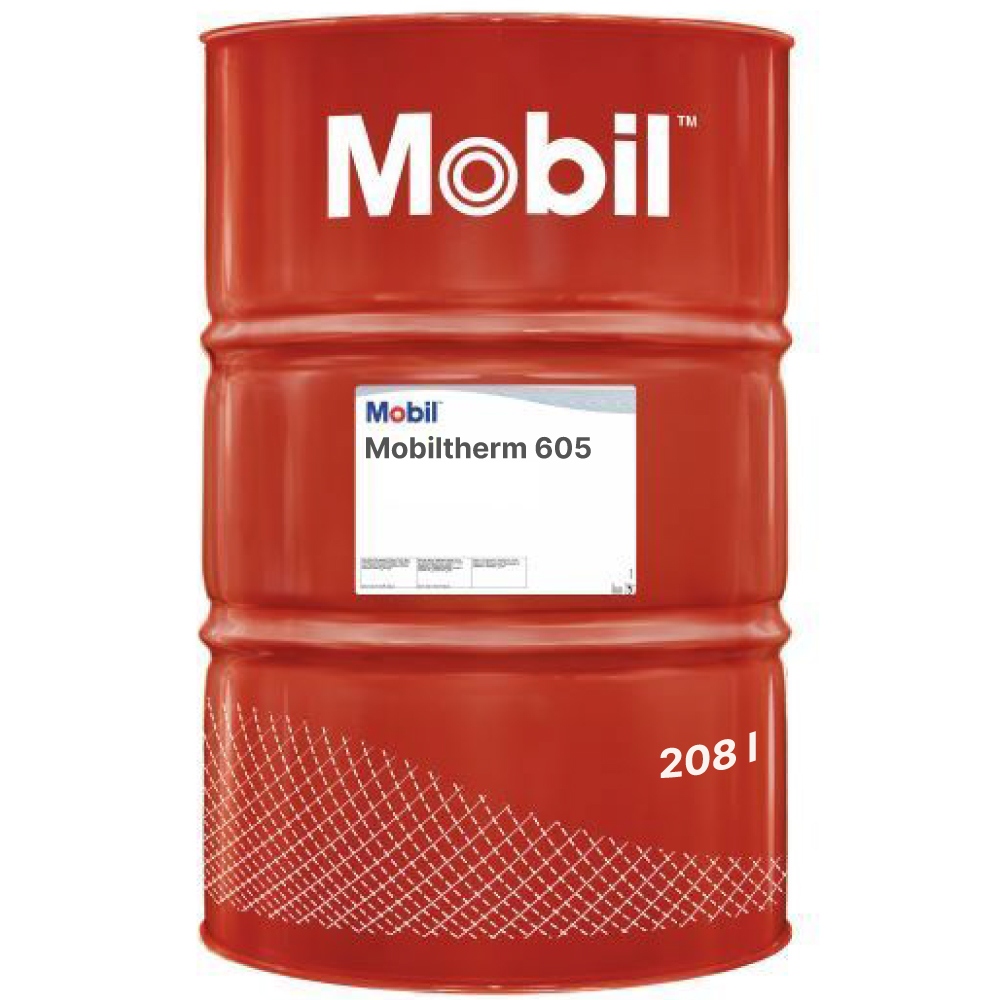

Mobil Mobiltherm 605 Heat transfer oil up to 315º C - 208L drum

Mobiltherm 605 heat transfer oil is a high performance products intended for use in closed indirect heating installations. Mobiltherm heat transfer oils are formulated from highly refined base stocks that are resistant to thermal cracking and chemical oxidation.

• Size: 208 l drum
• Also available in: 20 l canister

Applications

• Recommended for use in cold-oil sealed, indirect heating and cooling systems in all kinds of industrial processes.
• Mobiltherm 605 can be used in open and closed installations, where the recommended bulk oil temperature ranges are:
  • Closed Systems (up to 315º C)
  • Open Systems (up to 180º C)

Mobiltherm heat transfer oils should not be mixed with other oils since this may impair the excellent thermal and oxidation stability resulting in a change in other properties, and complicate analyses aimed at determining useful oil life. If the oils are used above their recommended maximum temperatures, vapor lock may result unless the system is designed to operate at the higher temperature by pressurizing with an inert gas such as nitrogen. At higher temperatures, fluid life will be shortened because the rate of thermal degradation which increases markedly as temperatures rise above the recommended limit. In well-designed systems the temperature of the oil film surrounding the heating element should be about 15ºC to 30ºC above the bulk oil temperature. If higher than this, the service life of the oil may be shortened and sludge and coke may be deposited which would interfere with the heat transfer rates.

Benefits

• Free from sludge and coke deposits and minimum interference with heat transfer capability and minimized maintenance needs
• High heat transfer rates and improved operating efficiency and lower operating costs
• Long trouble free service life and reduced downtime
• Easy starting of cold systems

Technical specifications

Manufacturer number	151745
Density @ 15 C, kg/l, ASTM D1298	0.857
Flash Point, Cleveland Open Cup, °C, ASTM D92	230
Kinematic Viscosity @ 100 C, mm2/s, ASTM D445	5.4
Kinematic Viscosity @ 40 C, mm2/s, ASTM D445	30.4
Pour Point, °C, ASTM D97	-12



Information on product safety (Manufacturer, Contact)

EXXONMOBIL CENTRAL EUROPE HOLDING GMBH, Ericusspitze 2, 20457 Hamburg, GERMANY, +49 40 6393 0, [email protected], www.exxonmobil.de
