Vibrating Big Bag Discharge Station – Adjustable height 168-238 cm

This robust discharge station with vibration platform provides an efficient solution for emptying big bags with medium-poor flow materials – compatible with all Indus Neva and Flow pallet systems. The integrated vibration unit stimulates flow, prevents bridging, and minimizes residue – ideal for granular and powdery bulk goods.

Applications

• Suitable for medium-poor flow products like sugar, flour, granules, feed, starch, chemicals.
• Used in industries such as food processing, pharmaceuticals, animal nutrition, chemicals, additive manufacturing.

Features

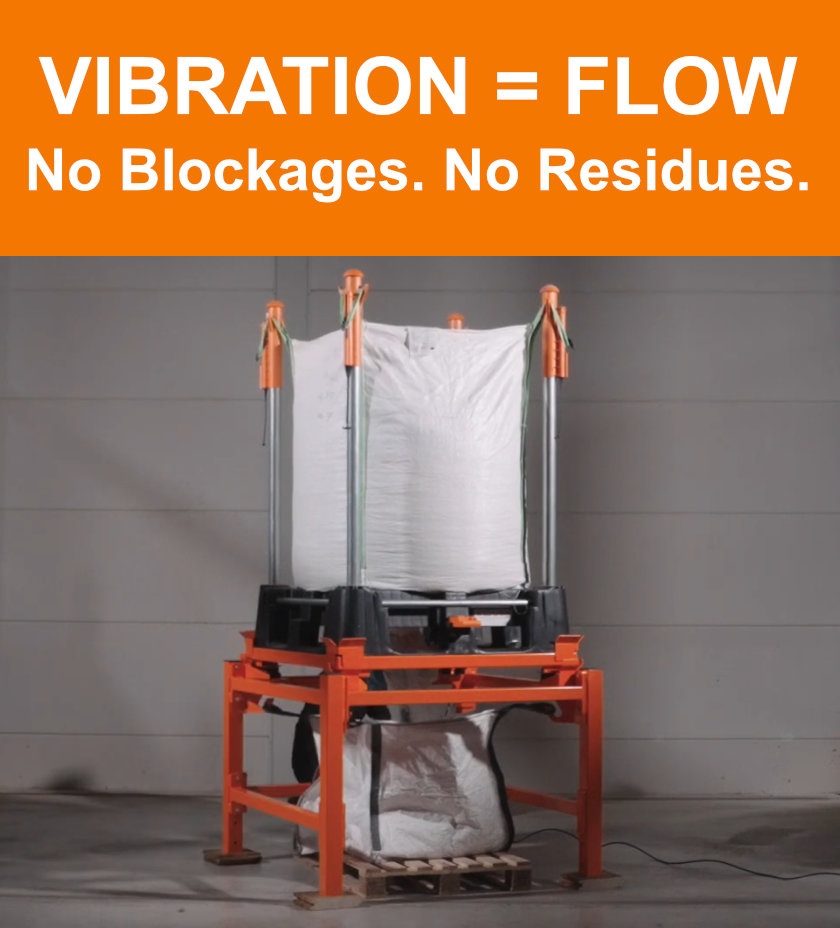

• Active material discharge: Integrated vibration unit improves flow for compacted or sluggish products.

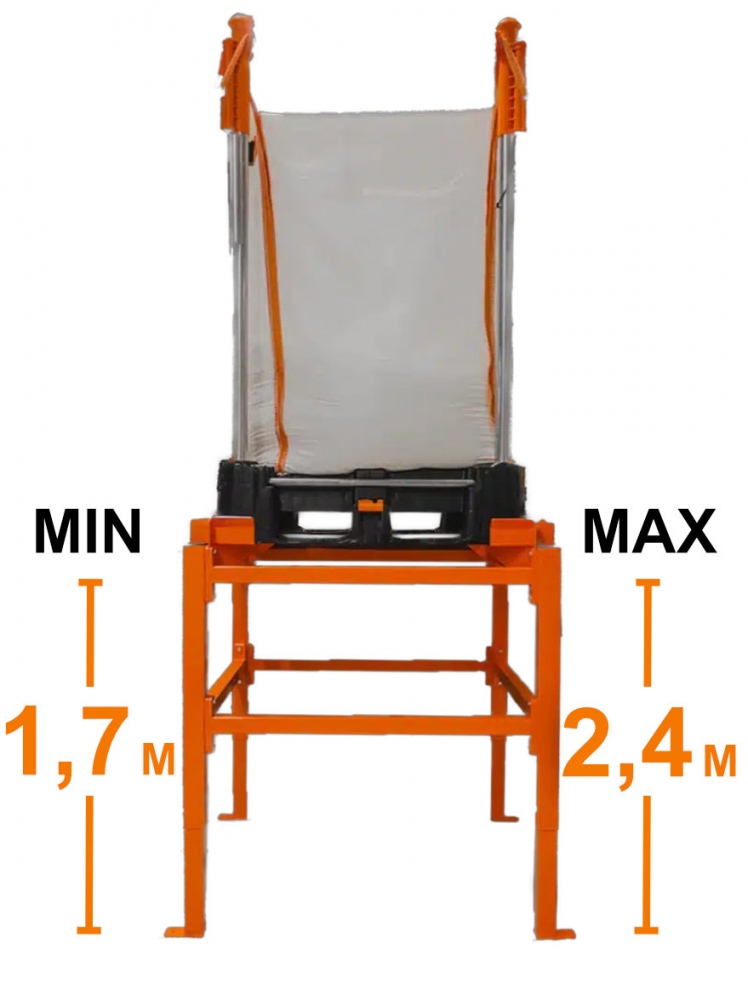

• Height-adjustable frame (Medium): Allows flexible adjustment with a discharge height of up to 2.38 m for various production requirements.
  Discharge height: 1,680 – 2,380 mm

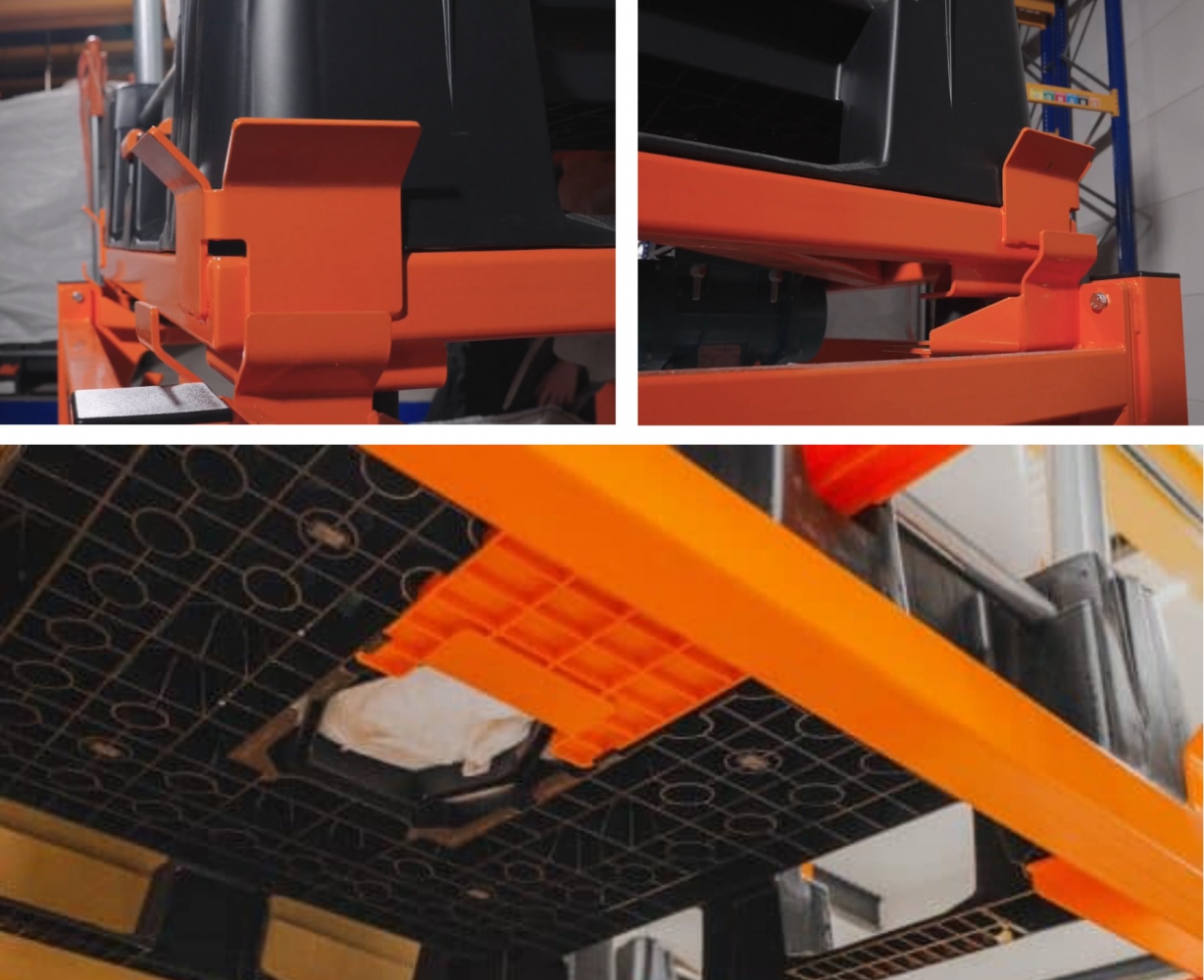

• Compatible with Indus systems: Suitable for all Indus Neva and Flow decks – retrofit or stand-alone use.
• Durable and low maintenance: Made of galvanised steel, equipped with long-life vibration motor.
• Easy process integration: Can discharge directly into conveyors, mixers or packaging lines.
• Safe and easy to use: Sturdy design, easy to clean – also suitable for hygienic environments.

Technical details

• Base frame: 1210 × 1210 mm, height depends on configuration
• Discharge height: 1,680 – 2,380 mm

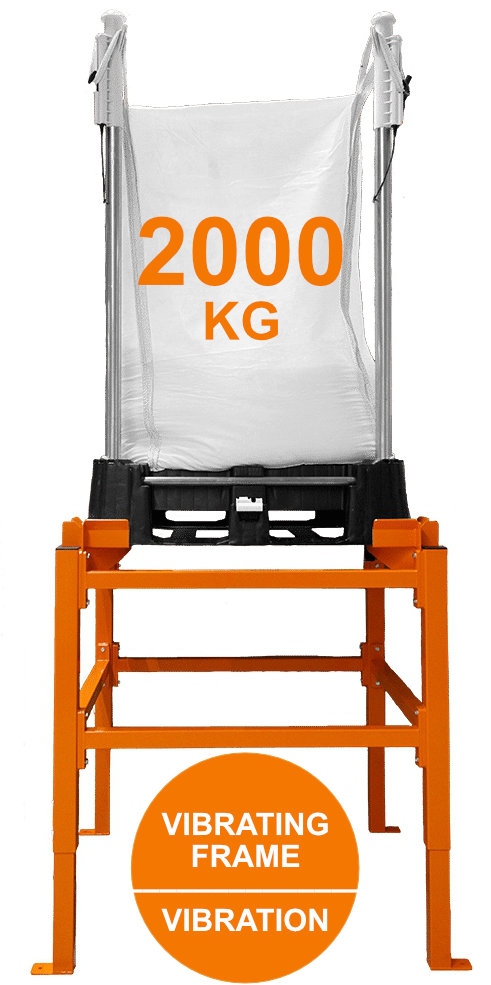

• Load capacity: 2,000 kg (optionally 3,000 kg with HD module)
• Material: galvanised steel / (stainless steel 304 on request)
• Vibration unit: factory-installed electric motor
• Power: 230/400V, ready to connect

Scope of delivery

• Discharge unit incl. vibration module, pre-mounted / palletised
• Optional add-ons: adjustable holder frame, outlet hose, funnel module

For custom solutions of the Indus big bag discharge station, contact us at [email protected]
