Heavy-duty Big Bag Discharge Frame – Height adjustable 248-318 cm

This heavy-duty steel frame is designed for companies using the Indus Neva Big Bag Pallet System, offering a simple, controlled solution for emptying Big Bags with free-flowing materials. It provides flexible adjustments to meet diverse industrial needs and complies with European standards.

Applications

• Suitable for free-flowing materials such as plastic granules, pellets, grain, sand, gravel, and other free-flowing bulk materials
• Widely used in industries like material processing, construction, chemical industry, agriculture, and logistics

Features

• Height-adjustable, detachable frame: Offers flexible adjustments with a discharge height of up to 3.18 meters to accommodate various industrial production needs.
• Precise Big Bag emptying: The integrated slider enables controlled and efficient material discharge, improving production flow and reducing waste
• Highly durable and robust: Made of high-quality galvanized steel or available in stainless steel 304 (on request), the frame is designed for long-term, heavy-duty use in industrial settings.
• Versatile industrial applications: Easily integrated with conveyors, containers, and machinery, this frame facilitates seamless incorporation into various material handling systems across different production facilities.
• Space-saving and mobile: The frame can be disassembled for compact storage and easy transportation, making it ideal for logistics and storage optimization.
• Perfect complement: Specifically designed for spout Big Bags using Indus Neva or Flow Pallets, ensuring smooth operations in bulk material handling systems.

Technical characteristics

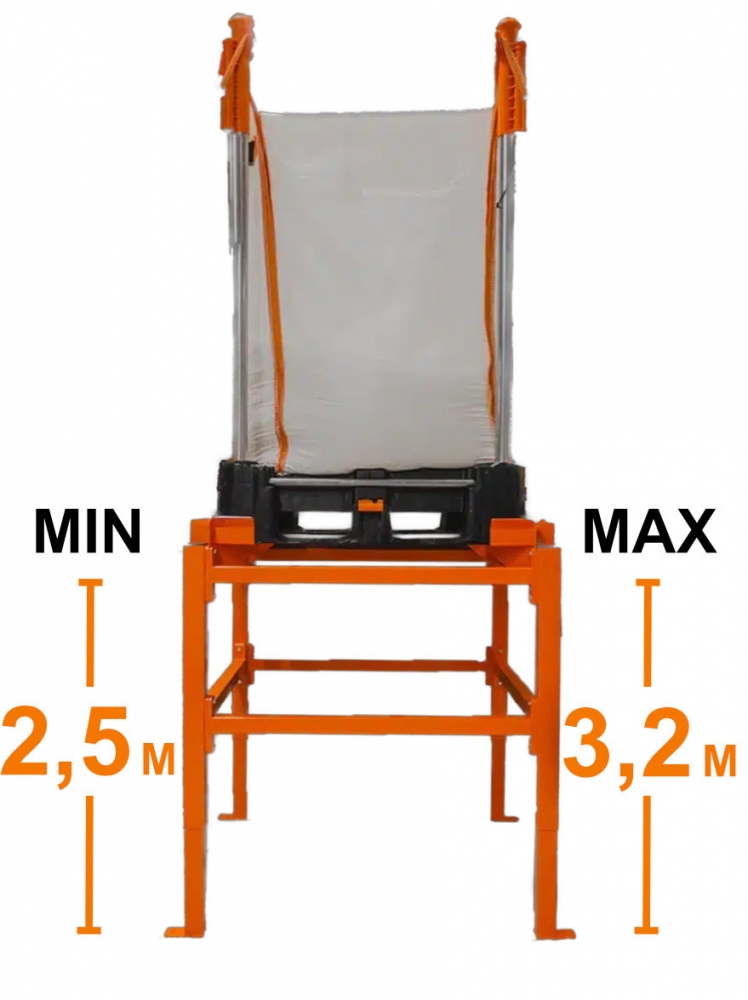

• Frame dimensions: 1210 x 1210 x 2480-3180 mm; height adjustable, suitable for Neva Pallets.
• Capacity: 2000 kg
• Material: Steel, galvanized (stainless steel 304 available on request).

Included in delivery

• Supplied as an easy-to-install kit, with assembly manual

Optional Add-ons (on request)

Customize your Indus unloading station with the following optional modules:

• Pneumatic slide: Automated opening/closing of the Big Bag spout – ideal for automated unloading.
• Dosing unit: For precise, manual dosing – ideal for small batches or lab applications.
• Dust-free hopper: Sealed connection to extraction systems – recommended for powders or sensitive materials.
• Vacuum connector: For direct suction of granules into silos, conveyors or mixers.
• Vibrating platform: Improves discharge of poor-flowing materials – prevents bridging and residues.
• Mobile base (wheel set): Turns your station mobile – with brake for safe positioning.
• Hanging system: Enables unloading without a Neva deck – attach the bag directly to the frame.

👉 Watch video: Modular Indus Unloading Station in action

For customized solutions of the Indus Big-Bag Unloading Station, please contact us at contact us.
