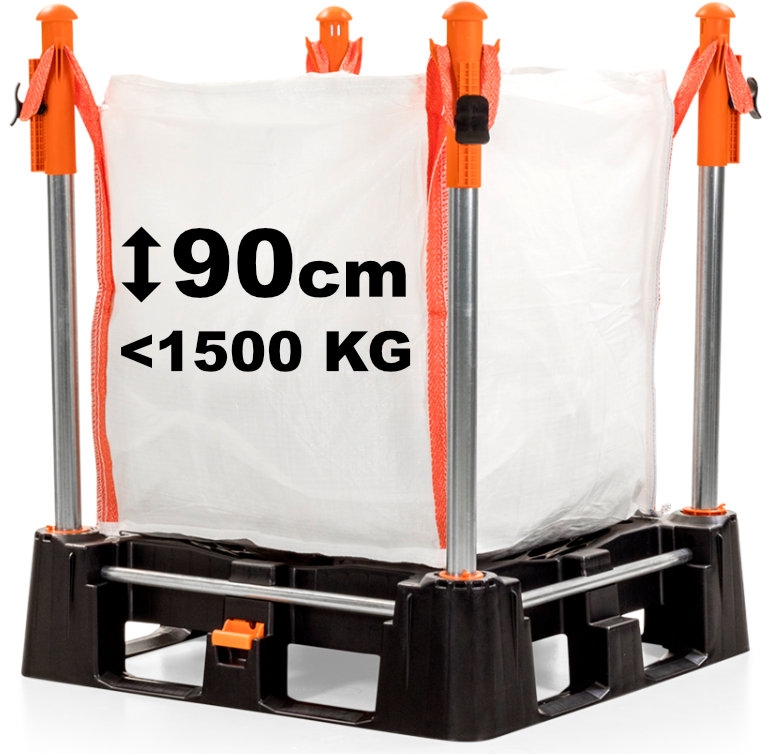

Indus Neva Unique handling & storage system for big bags height 90cm

Neva All-in-One solution to store, transport, load and discharge your bulk material from big bags / FIBC

Ideal for big bags up to 90 cm height with four corner loop size 300 mm → Complete the form for customized Neva Big Bag System

The Indus Neva stands out as a unique and versatile system, offering more than just a storage solution. Designed to facilitate easy filling and emptying of Big Bags/FIBC bulk bags, it optimizes your goods flow and stocking while simultaneously enhancing food safety and workplace safety.

• Indus Neva is an ideal alternative to conventional solutions like racks, octabins, and mini silos
• Indus Neva proves invaluable across industries such as plastics, food, chemicals, and seeds

Benefits

• Save up to 70.3% storage space: Utilize stackable Big Bags, reaching heights of up to 7 meters (equals 6 pallets) or handling weights of up to 6 tons. Tested and certified by IBE-BVI, Sebert.
• All-in-one solution for stable and efficient filling and emptying of big bags with just one single product
• Minimized risk of accidents through user-friendly handling: The system maintains stability during transport, whether it's a standalone unit or stacked. This presents a significant safety advantage compared to traditional wooden pallet systems.
• Enhanced safety for personnel, materials, and processes: The underdeck's stability ensures the Big Bag remains upright during filling, transportation, storage, and emptying, reducing the risk of accidents.

Application

1. To begin the process, you simply place a full big bag in the Indus Neva using a forklift. You can also hang an empty big bag in the Indus Neva and then fill it securely.
2. You can then store the Indus Neva stacked with a big bag - up to an impressive 7 meters high.
3. From the warehouse, the systems can be easily picked up and transported to production, where materials are emptied and further processed using a frame and the unique unloading function in the deck.

Choosing the right head option for your poles

LOCKHEAD (Standard) For bottom dimensions  95 x 95 - 100 x 100cm

ROLLING SPRINGHEAD For bottom dimensions 85 x 85 - 90 x 90cm

LOCKHEAD (standard)
Mainly suited for customers who want to place already filled big bags in the system and use the system for further transport, handling, stacked storage, and discharging. This type of head is also advised for handling of big bags with long lifting loops.

ROLLING SPRINGHEAD
Best for smaller-sized Big Bag bases. The design lets the lifting straps go over the roller on the hooks inside the 4 poles. When you fill an empty big bag, these hooks pull on the lifting straps while the bag goes down to the bottom deck.


Technical data

Dimensions & Capacity

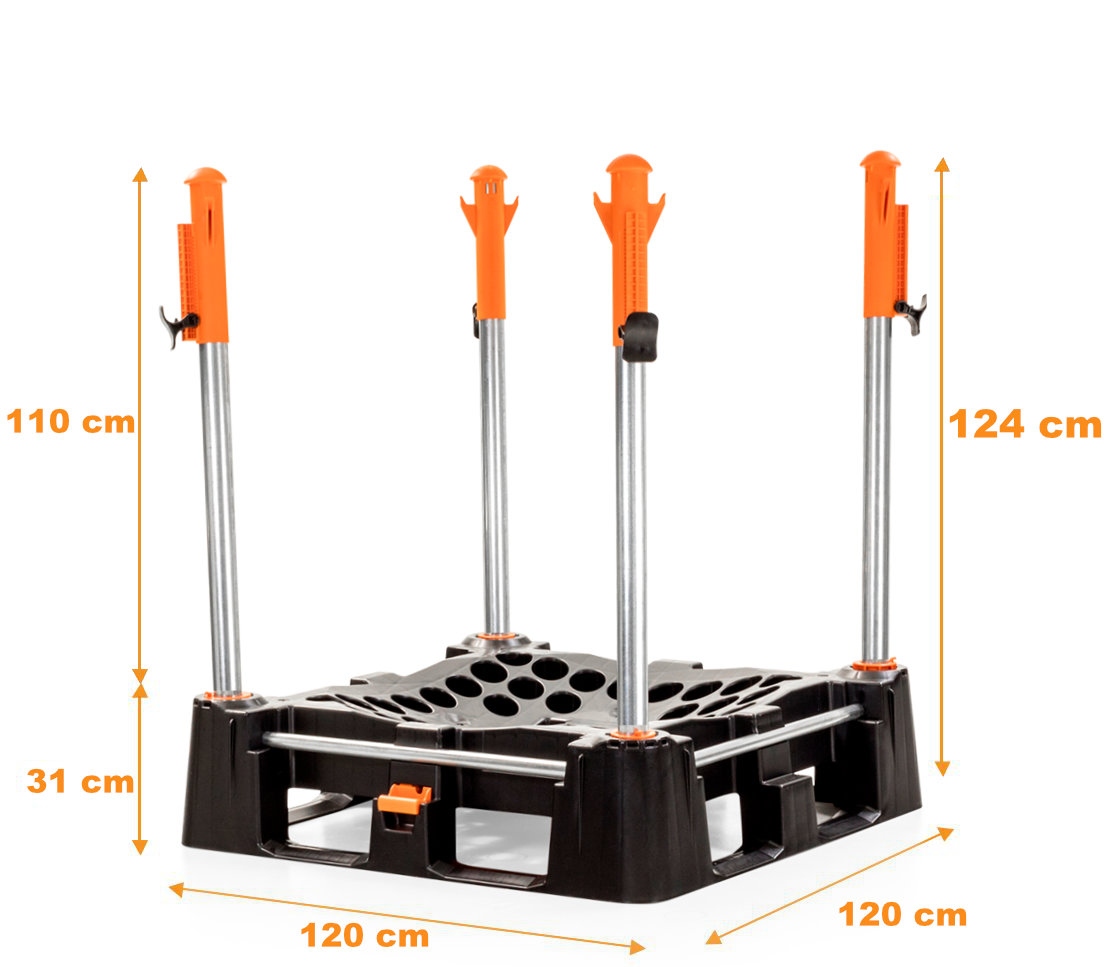

Rack Dimensions (L x W x H)	120 x 120 x 31 cm
Height	121 cm (total, lockhead)  110 cm (pole with lockhead)
Maximum load capacity	1.5 tons
Stacking capacity	Maximum 6 tons or 7 meters
Suitable for following big bag sizes
Length x width	850x850 mm – 900x900 mm (Rolling Springhead) 950x950 mm – 1000x1000 mm (Lockhead)
Height	Approx. 900 - 950 mm
Corner Loop Length	Approx. 30 cm

Need a customized quote for your Big Bags?  → Complete the form and send it to [email protected].

Certifications

• IBE-BVE, Sebert
