MODULO BAG ®, the ideal table for emptying big bags

MODULO BAG ® let's you empty Big Bags precisely and easily

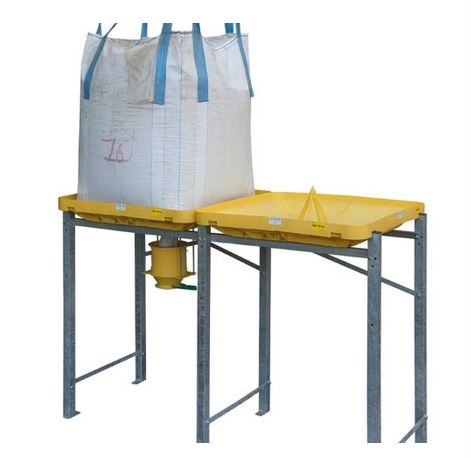

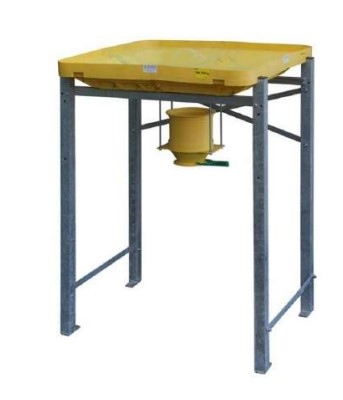

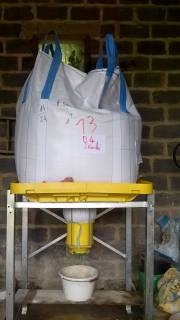

MODULO BAG ® is an innovative draining table that allows farmers to easily empty all kinds of Big Bags. The table can be either equipped with a cylinder and its Funnel Bag®, for big bags with a chute or with a removable tip placed on the Funnel Bag ®, or with a sharp tip for big bags with flat or lost bottom.

BENEFITS

• Save time when discharging food big bags
• Work safely
• Meet hygiene standards and clean hoppers easily
• Discharge bags with channels and blind bottom bags alternately

ORIGINALITY

• Thanks to its tip and its cylinder associated with the Funnel Bag ®, MODULO BAG ® makes it possible to effortlessly empty any kind of Bigbag.
• Thanks to its clever mounting system, it allows almost infinite tables to be added while considerably reducing its unit cost.

Technical characteristics

• Dimension: 1150 * 1150 * 1510 mm
• Weight load capacity: 1250 kg
• Main unit empty weight: 55 kg
• Secondary unit empty weight: 50 kg
• Finish: Polyamide6 - hot dip galvanized
• Stainless steel screws

Included in delivery

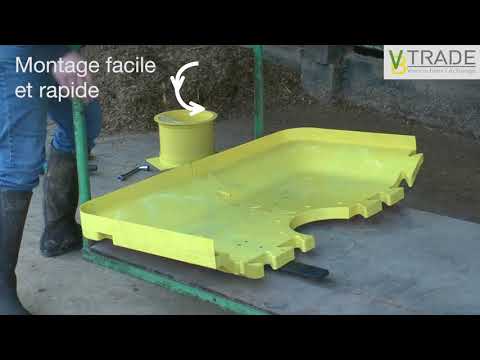

• Supplied as a kit, with assembly manual.

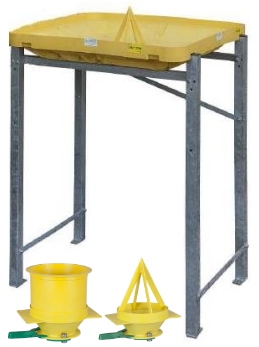

• Included in the delivery: a sharp tip (for flat-bottomed BIGBAGS) and a cylindric Funnel Bag ® (for spout bottom BIGBAGS)
