VIDBAG® Tip solution to partly empty flat bottomed FIBC Bulk Bags

VIDBAG® is a system that enables farmers to save time emptying their big bags with fertilizers or seeds.
No more shovels and less effort thanks to the VIDBAG®.
With VIDBAG®, the farmer can partially empty a big bag, then put it down again and then store it with the VIDBAG®.

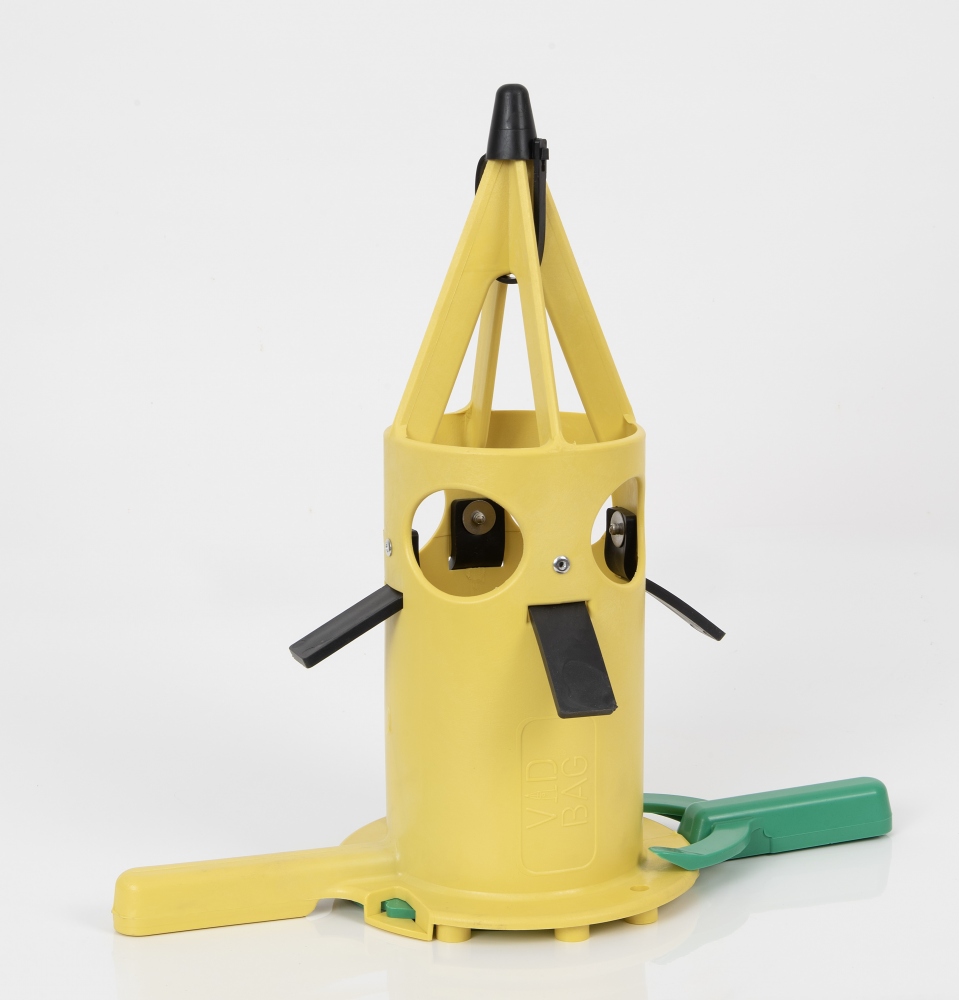

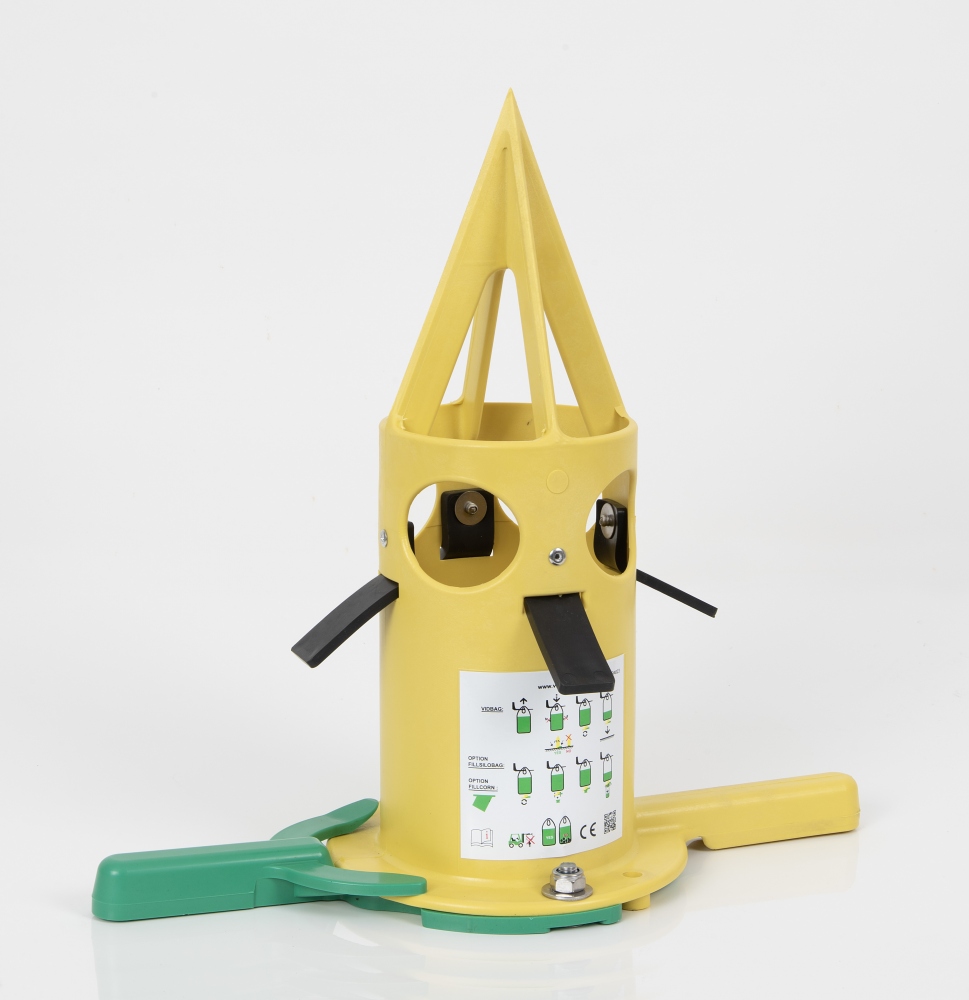

VIDBAG ®: portable, self-perforating valve for the complete or partial emptying of a big bag.
Special feature: With the help of its tip, VIDBAG ® pierces the sack cleanly, and its patented wing system holds the device correctly in the big bag.

Technical features :

• Dimension: 43 cm
• Diameter: 140 mm
• Passage: 150/200 kg minute
• Color: yellow / green /
• Material: polyamide 6
• Resistant to corrosion and fertilizers.
• Screw connection: Inox A4
• Contact with food

Guarantee: 1 year guarantee (spare parts excluded)

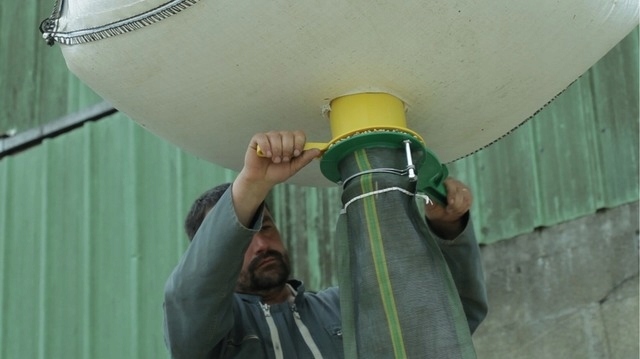

USER MANUAL VIDBAG

• For long-term use of the VIDBAG, you should note the following:
• Place the VIDBAG on the floor
• Use the lugs to lift the bigbag with the fork of the front loader
• Lift the bigbag over the VIDBAG until the bigbag hangs still
• Lower the bigbag onto the VIDBAG until the bigbag is completely on the floor
• Place the bigbag over the container to be filled
• Pull the VIDBAG out of the bigbag again until the wings (hooks) are on the inside of the underside of the bigbag.

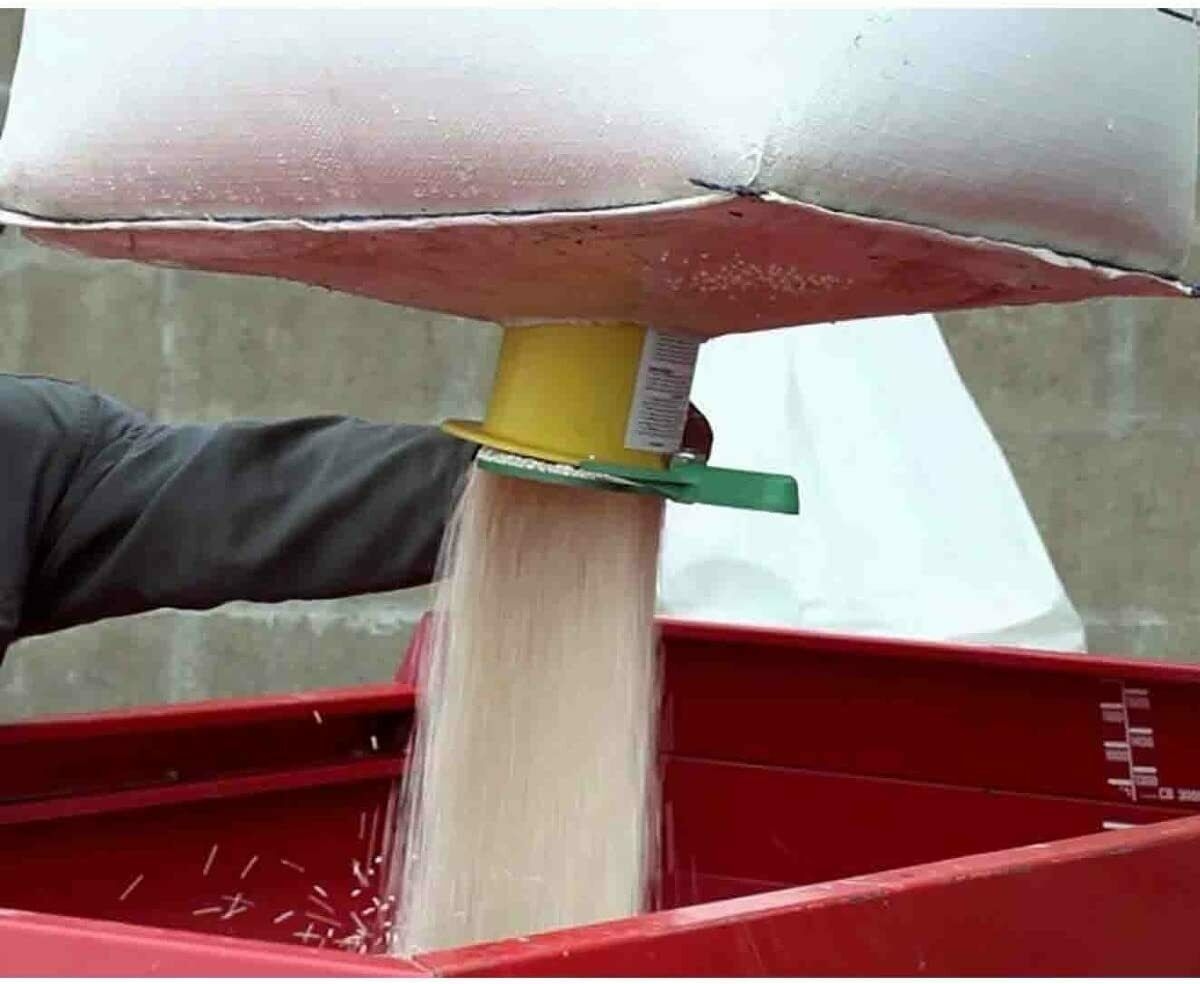

• Open the flap on the VIDBAG and fill the container
• Close the flap of the VIDBAG (remnants remain in the big bag)
• Put the bigbag aside and repeat the process as necessary
• Remove the VIDBAG when the bigbag is completely empty

Be aware:

• DO NOT use the VIDBAG if there are lumps in the big bag!
• Never stand under the load
• The VIDBAG should stand on a solid surface made of concrete or wood for the drilling to make it easier to drill through the big bag
• Only use the VIDBAG to empty big bags.
• Euro Industry cannot be held responsible for damage resulting from the use of the VIDBAG.
