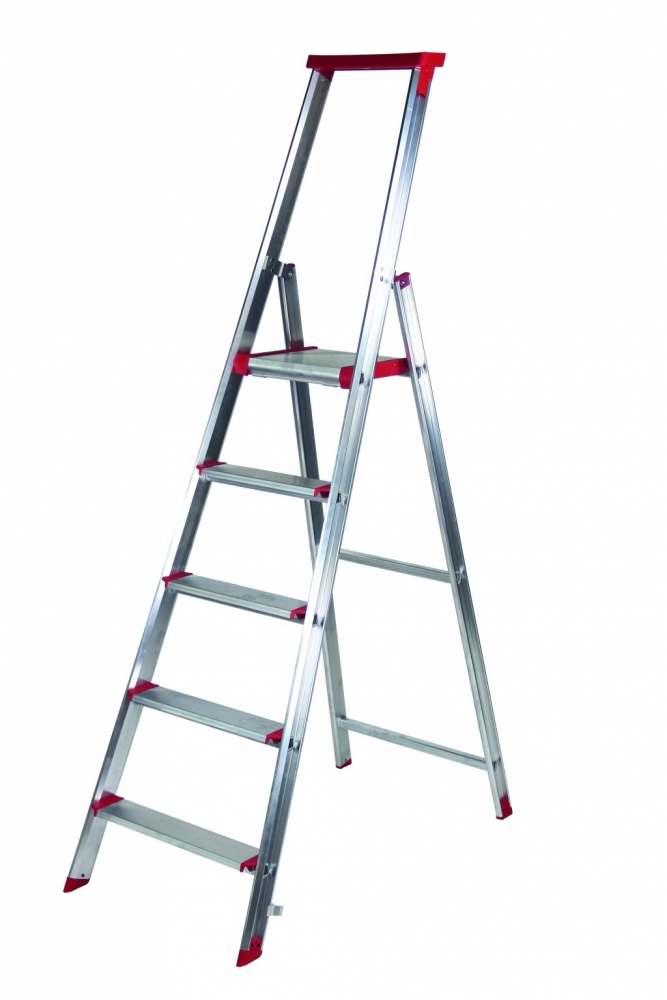

Rise-Tec® Professional 5-step ladder single-sided height 1.20 m EN131

One sided step ladder with 5 steps for professional use, according to DIN EN 131, height 1.20 m

The ladder for professional use at an affordable price. The double delta profile, which is unique in Germany, enables use in conjunction with a special aluminum alloy under particular stresses. Increased resistance to dents and buckles and extremely non-slip ladder feet make the Rise-Tec® step ladders a stable work tool for daily use.

Areas of application

• The Rise-Tec® professional stepladders are TRBS 2121-2 compliant and therefore suitable for commercial work on the ladder
• Commercial and industrial use
• Installers, painters, roofers
• Warehousing
• Caretaker service
• Housekeeping
• Do it yourselfer

Characteristics

• Resistance against dents and buckles (punch-resist-effect)
• Single-sided
• Height (upper platform): 1.20 m
• Extra wide rungs (35x35mm) and 80mm steps for comfortable, safe standing
• Rungs and steps with ribbing increase the slip resistance
• Flanged connection from stile to rung and step as a permanently stable connection
• Extremely anti-slip ladder feet, replaceable after wear and tear
• Highest stile stability against buckling
• Useful storage tray for assembly material, tools, etc.
• Ergonomically designed aluminium stiles
• Very appealing design

Manufactured in accordance with DIN EN 131, they correspond to the „Professional class“. In terms of stability and longevity, the standard specifications are even exceeded by far. A reliable „colleague“ for your professional life.

Technical specifications

• Amount of steps: 5
• Length of stile : 202 cm
• Height : 120 cm
• Lower outer width : 54 cm
• Depth : 106 cm
• Upper platform: 33.5x25.5 cm
• Step depth: 80 mm
• Weight : 8 kg

Rise-Tec® professional step-ladders 8616 (3 - 12 steps)

Article n°	Amount of steps	L Length of stile in cm	P upper platform height in cm	A working height max ca. in cm	Lower outer width in cm	Depth in cm	Weight in kg
8616000003	3	150	70	270	48	71	5,5
8616000004	4	176	95	295	51	90	7
8616000005	5	202	120	320	54	106	8
8616000006	6	231	145	345	58	123	9
8616000007	7	259	170	370	61	139	10,5
8616000008	8	286	195	395	65	158	12
8616000010	10	340	245	445	72	193	16
8616000012	12	394	295	495	79	228	19



Optional Accessories (On request)

• Handrails for stepladders
• Safety steps for stepladders increase the standing area to 130mm and are simply clipped on.
• Brake rollers for footsteps
• Safety bar for steps
• Hooks and suspension devices for stepladders

Rise-Tec Red label

The ladder for professional use at an affordable price. The double delta profile, which is unique in Germany, combined with a special aluminium alloy makes it possible to use it under special loads. The profile is used for the stepladders of the Red Label. For the rung ladders of this series we also use a specially developed double T-profile. Both profiles increase resistance to dents and buckles because of the punch-resist-effect.
