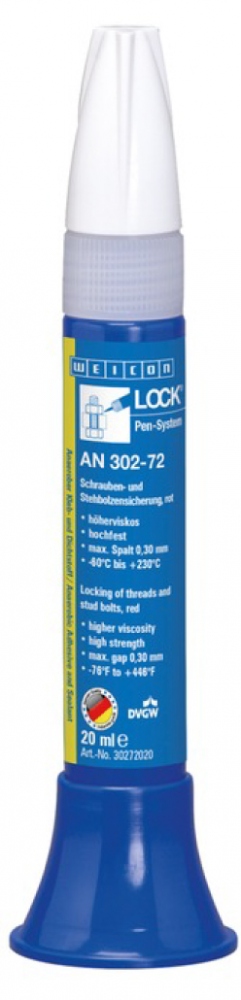

Weicon AN 302-72 High-temperature Threadlocker high strength red 20 ml
Weicon AN 302-72 High-temperature Threadlocker high strength red 20 ml
€ 17.79 17.79 incl. VAT (14.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Weicon
Country of origin: DE/0004
Customs tariff number: 35061000
Weight per piece: 35 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
WEICONLOCK® AN 302-72 Locking of Threads and Stud Bolts
- Higher viscosity
- High strength
- Hard to disassemble
- Temp. resistance in °C, from: -60 °C
- Temp. resistance in °C, up to: 230 °C
- Pack size: 20 ml pen-system

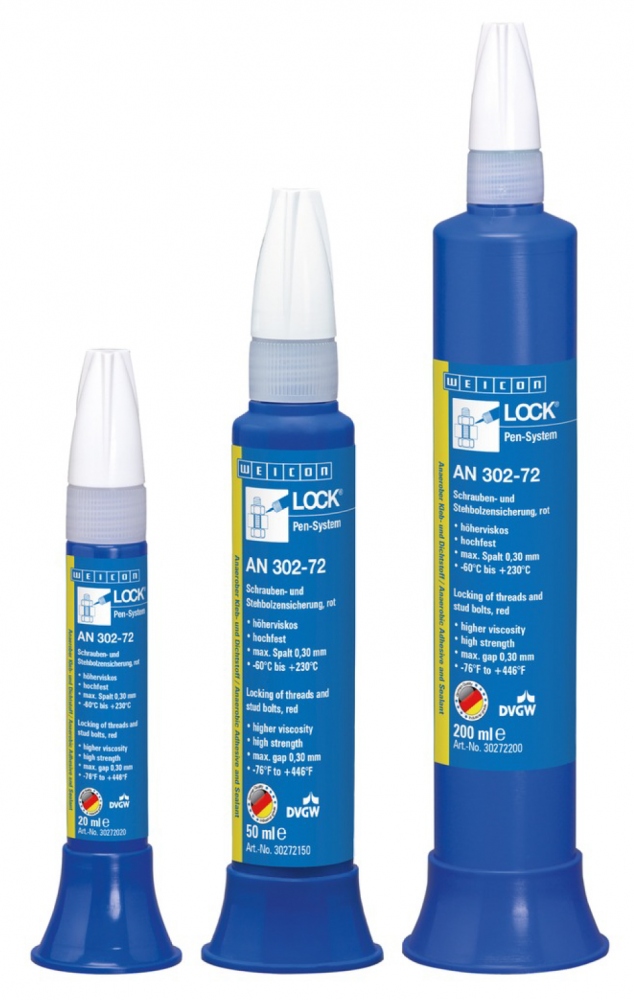

- Also available in: 50 ml and 200 ml pen-system
Surface pre-treatment
- To achieve optimum results, the mounting parts should be degreased and cleaned, e.g. with WEICON Surface (roughen the surfaces, if required).
- WEICONLOCK can also be used on uncleaned surfaces, e.g. screws as delivered. However, the cleaner the surface, the better the results achieved.
Processing

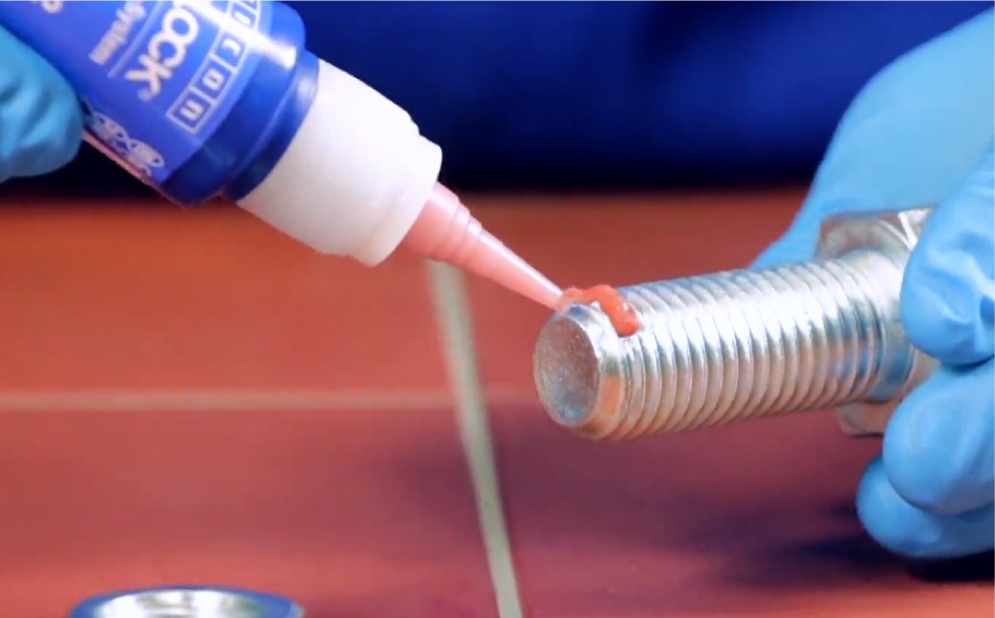

- WEICONLOCK is applied evenly straight from the Pen with the help of the dosing tip; avoid direct contact between dosing tip /metal.
- For sealing applications, apply WEICONLOCK to the thread in circles.
- Assemble parts and screw tight.
- Do not pour any WEICONLOCK back into the bottle that has already come into contact with metal.
- Even extremely small metal particles cause the adhesive to cure inside the bottle. Therefore, in serial production, the use of dosing devices is recommended.
Storage
- WEICONLOCK has a shelf life of at least 24 months, when stored at room temperature in closed original container.
- Protect from heat sources and direct sunlight.
- The air contained in the Pen keeps WEICONLOCK liquid.
Instructions for use
- When using WEICON products, the physical, safety-related, toxicological and ecological data and regulations in our EC safety data sheets (www.weicon.com) must be observed.
Technical specification.
Colour | red |
Fluorescent | no |
For thread connections | up to M 56 R 2" |
Viscosity | 6.000 - 15.000 mPa·s |
Gap bridging | up to max. 0,3 mm |
Breakaway torque | 20 - 30 Nm |
Prevail torque | 40 - 75 Nm |
Shear strength Nmm² (DIN 54452) | 10 - 15 N/mm² |
Handling strength | 20 - 40 min. |
Final strength (100 % strength) | 5-10 h |
Temperature resistance | -60°C to +230°C |
Compressive strength (free cutting steel / grub screw = 8.8) | M3x6 max. 1500 bar M4x6 max. 1500 bar M5x8 max. 1000 bar M6x10 max. 700 bar M8x12 max. 500 bar M10x16 max. 300 bar |
Approvals / Guidelines | Hygiene Institute UBA KTW-BWGL |
Hazard Information (CLP)
Hazard Statements (H-phrases)
- H315: Causes skin irritation.
- H317: May cause an allergic skin reaction.
- H318: Causes serious eye damage.
- H413: May cause long lasting harmful effects to aquatic life.
Precautionary Statements (P-phrases)
Prevention:
- P280: Wear protective gloves. Wear eye or face protection.
- P273: Avoid release to the environment.
- P261: Avoid breathing vapor.
- P264: Wash thoroughly after handling.
Response:
- P362+P364: Take off contaminated clothing and wash it before reuse.
- P302+P352: IF ON SKIN: Wash with plenty of water.
- P333+P313: If skin irritation or rash occurs: Get medical advice or attention.
- P305+P351+P338, P310: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Immediately call a POISON CENTER or doctor.
Storage:
- Not applicable.
Disposal:
- P501: Dispose of waste according to applicable legislation.
WEICON GmbH & Co. KG, Königsberger Strasse 255, 48157 Münster, GERMANY, +49 251 9322-0, [email protected], www.weicon.de
Property | GTIN/EAN | MPN (Manufacturer Part Number) |
---|---|---|
- | 4024596000219 | 10019901 |
