Sundström SR 520 TH3 hood for powered air respirators – incl. hose

Sundström SR 520 TH3 hood for powered air respirators – incl. hose

pics/sundstrom/sr520/sundstroem-sr-520-kopfhaube-inkl-schlauch-fuer-parp-atemgeblaese-s-m-h06-0312-m-l-h06-0212.jpg

€ 154.64 154.64 incl. VAT (129.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Sundstrom

Country of origin: SE/0030

Customs tariff number: 90200090

Weight per piece: 1.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

zero + zero = ?

( Examples: two + three = 5, three - five = -2 )

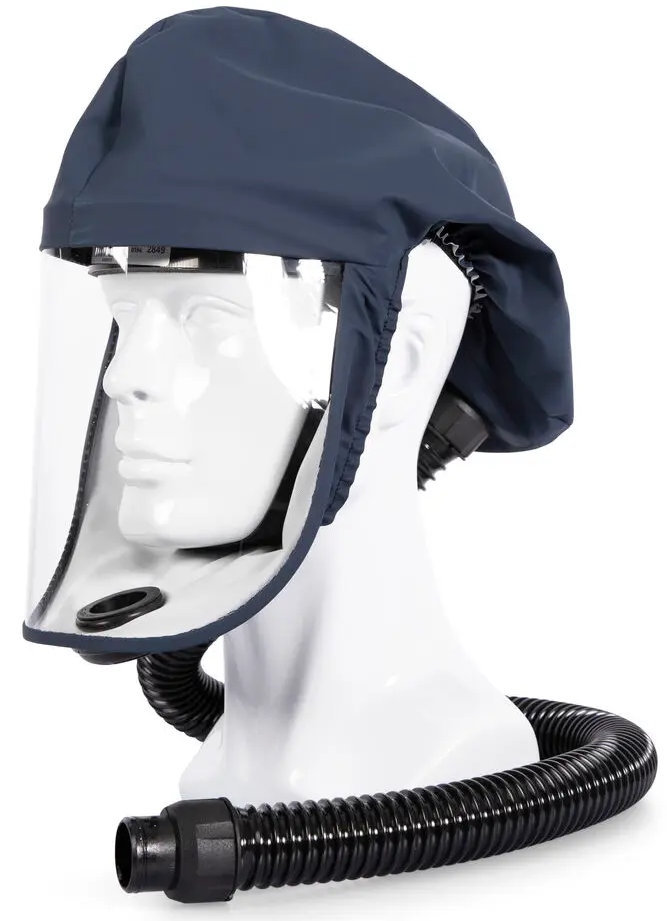

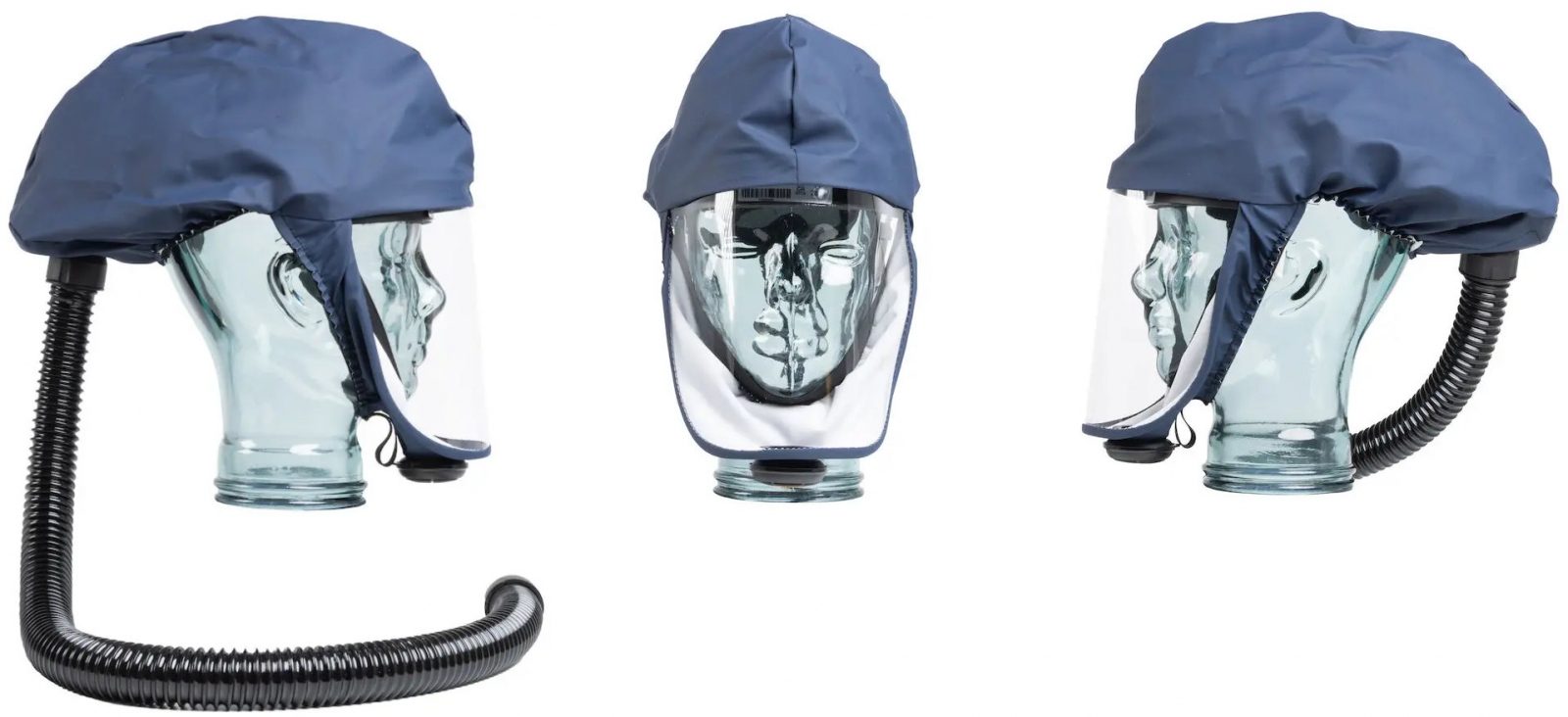

Sundström SR 520 TH3 hood with hose

The Sundström SR 520 is a loose-fitting protective hood designed for use with the SR 500, SR 500 EX or SR 700 powered air purifying respirator (PAPR) systems. The supplied air creates positive pressure inside the hood, preventing contaminants from entering and keeping the visor clear. Optional use with the SR 507 compressed air attachment (EN 14594 3A/3B) is possible.

Features

Protects the breathing zone and forehead area
Impact- and chemical-resistant CA visor with anti-fog airflow
Adjustable head harness and flexible breathing hose
Exhalation valve for comfortable breathing
Approved according to EN 12941 TH3 and EN 14594 3A/3B
Made in Sweden

Technical Data

Model	SR 520 S/M, SR 520 M/L
Part number	H06-0312 (S/M), H06-0212 (M/L)
Material (colour)	PVC, Polyester, CA (Blue)
Sizes	S/M, M/L
Weight (with hose)	≈ 360 g
Protection levels	EN 12941:1998 + A2:2008 (TH3) EN 14594 3A/3B (with SR 507)
Protection factors	APF 100 (TH3) • NPF 500 (TH3)
Airflow rate	SR 500: 175 / 240 l/min SR 700: 175 / 225 l/min
Temperature range	Use −10 to +55 °C Storage −20 to +40 °C (< 90 % RH)
Shelf life	5 years
Country of origin	Sweden
ATEX classification	II 2G Ex ib IIB T3 Gb / II 2D Ex ib IIIC T195 °C Db (with SR 500 EX)

Scope of Delivery

SR 520 hood (S/M or M/L) with breathing hose
Cleaning cloth and user instructions

Compatibility & Filters

Blowers: SR 500 (TH3), SR 500 EX (TH3), SR 700 (TH3)
Particles: SR 510 P3 R (with SR 511 adapter)
Gas/Combination: e.g. SR 518 A2 gas filter in combination with P3 filter, SR 221 prefilter and SR 512 holder

Applications

Grinding, metal and wood processing
Cleaning, decontamination, dust and fibre work
Painting and coating operations
Chemical and laboratory work, food industry
Warm or long-duration tasks

Information on product safety (Manufacturer, Contact)

Sundström Safety AB, Västergatan 4, 341 50 Lagan, SWEDEN, +46 10 484 87 00, [email protected], www.srsafety.com

Available in:

M/L (H06-0212), S/M (H06-0312)

No files available for download
