BLS 222 Combination Filter ABEK1 P3 for BLS 4000/5000 masks, bayonet
BLS 222 Combination Filter ABEK1 P3 for BLS 4000/5000 masks, bayonet
€ 26.06 26.06 incl. VAT (21.90 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 pair
Manufacturer: BLS
Country of origin: ES/0011
Customs tariff number: 84213925
Weight per piece: 300 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.

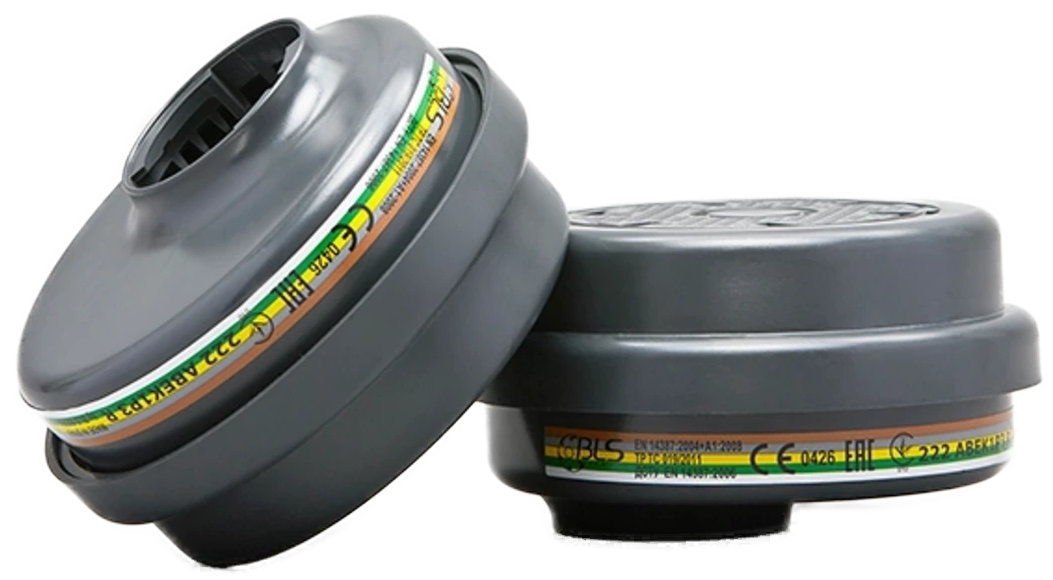

BLS® 222 ABEK1P3 R Combination Filter is a high-performance gas, vapour and particle filter from the BLS 200 series, suitable for use with respirators featuring the B-lock bayonet connection.
Protection against
- A: Organic gases and vapours (boiling point > 65 °C)
- B: Inorganic gases and vapours (e.g. chlorine, hydrogen sulphide)
- E: Acid gases and vapours (e.g. sulphur dioxide)
- K: Ammonia and organic ammonia derivatives
- P3: Solid and liquid particles, including toxic and highly toxic aerosols
Features
- B-lock bayonet connection with locking mechanism for safe and intuitive installation
- Efficient combination of activated carbon granulate and particle filter (≥ 99.99 % filtration efficiency)
- Robust ABS housing – resistant to mechanical stress
- Reusable (“R”) – suitable for longer use across multiple shifts
- Compatible with BLS respiratory half masks 4000 Next, 4100, 4400, 4500, and full-face masks 5600 and 5700
Technical Data
| Filter type | ABEK1P3 R – Combination filter |
| Weight | 151 g per piece |
| Connection | B-lock bayonet system |
| Standards |
|
| Materials |
|
Storage & Packaging
- Shelf life: 5 years from date of manufacture
- Storage temperature: -10 °C to +50 °C, max. 80 % relative humidity

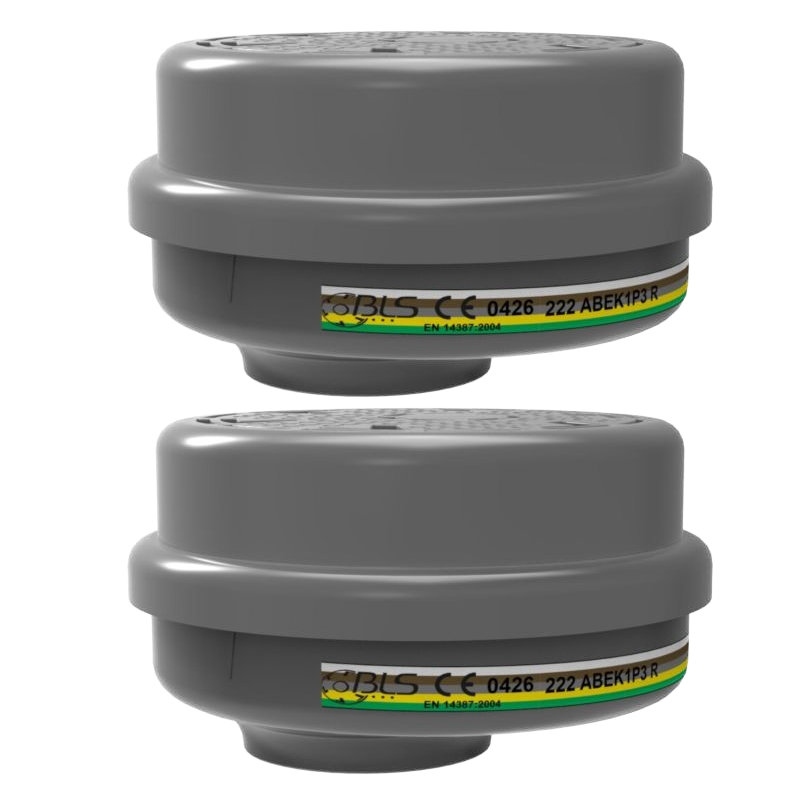

- Packed in pairs (2 pcs). 1 box = 4 pairs (8 pcs), 1 carton = 8 boxes (32 pairs = 64 pcs)
Overview Table of Filter Classes
| Filter Class | Meaning | Typical Application / Protection |
|---|---|---|
| Particulate Filters (P Classes) | ||
| P1 | For coarse mechanically generated particles (up to 4 times the limit value) | Grinding, milling, drilling |
| P2 | For finer mechanical and thermal particles (up to 10 times the limit value) | Welding, soldering, fine dust |
| P3* | For highly toxic or very fine particles (up to 30 times the limit value) | Asbestos, mold, viruses, nanoparticles |
| Gas and Vapor Filters (A–K, Hg, AX) | ||
| A* | Organic vapours (boiling point > 65 °C) | General protection against solvents |
| A1* | Like A, with lower capacity | Water-based paints, paints with residual solvents |
| A2 | Like A, with higher capacity | Petrol, paint thinners, solvent-based paints, adhesives |
| B* | Inorganic gases/vapours | Chlorine, hydrogen sulphide, hydrogen cyanide |
| E* | Acid gases/vapours | Sulphur dioxide, hydrochloric acid, acid mists |
| K* | Ammonia and derivatives | Fertilizers, slurry, laboratory processes |
| Hg | Mercury vapour | Laboratory accidents, hazardous waste (max. 50 h use) |
| AX | Organic vapours (boiling point < 65 °C) | Highly volatile solvents (only with full-face mask) |
| Additional Markings | ||
| R | Reusable | Suitable for multiple work shifts |
| NR | Not reusable | Approved for one work shift only |
| D | Dolomite dust test passed | Increased service life under high dust load |
* Note: Please ensure that the selected respiratory protective equipment is suitable for the specific hazardous substance and its concentration before use, in accordance with applicable regulations and standards.
BLS Germany GmbH, Steindeich 1a, 25377 Kollmar, GERMANY, 0800 - 5015 000, [email protected], www.blsgroup.de
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4025888264548 | 4267 |
