3M DT-4045E CF32 Combination filter A2B2E2K2 P3 R D
3M DT-4045E CF32 Combination filter A2B2E2K2 P3 R D
€ 29.69 29.69 incl. VAT (24.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: 3M Scott
Country of origin: GB/0006
Customs tariff number: 84213925
Weight per piece: 400 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.

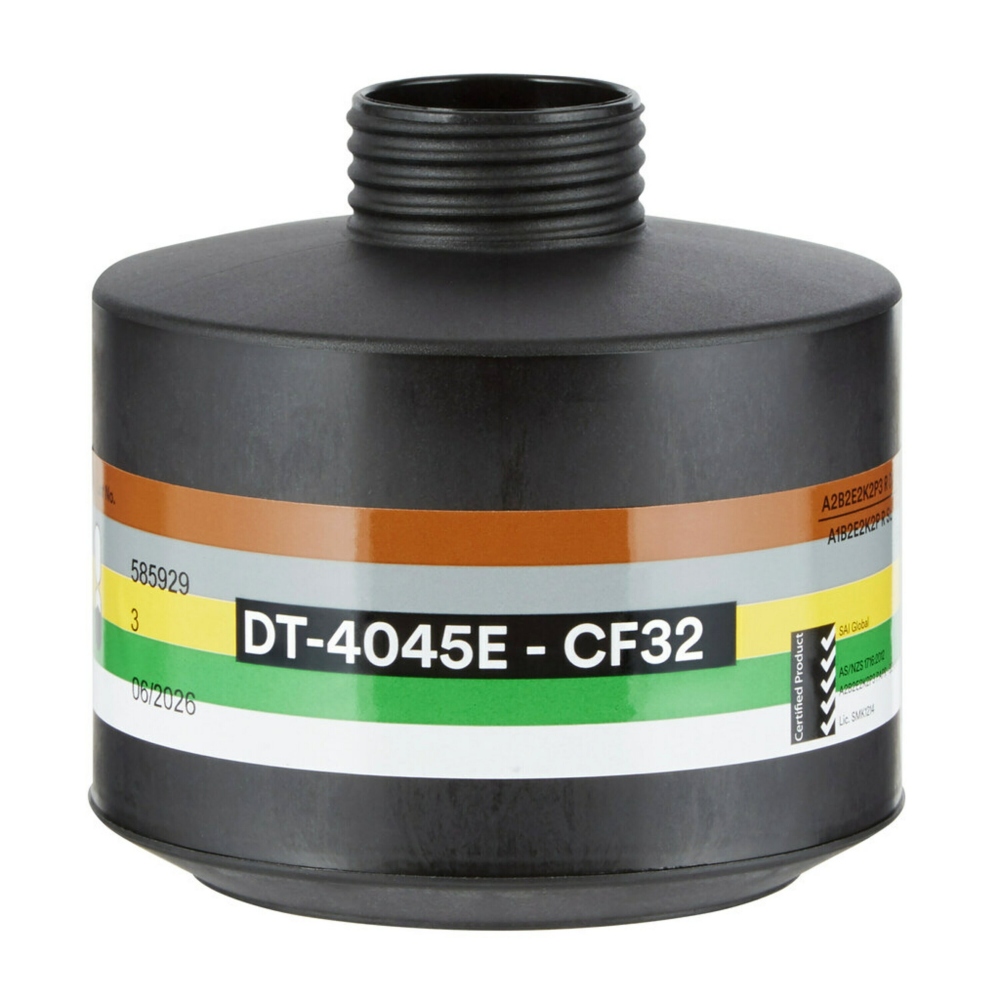

3M™ DT-4045E CF32 ABEK2P3 R D (formerly Scott Pro 2000 ABEK2P3) is a high-performance combination filter for DIN40 threaded respirators, offering broad protection against gases, vapours and particles.
Protection against
- A2: Organic gases and vapours with boiling point > 65 °C (e.g. solvents, toluene, xylene)
- B2: Inorganic gases and vapours (e.g. chlorine, hydrogen sulphide, hydrogen cyanide)
- E2: Acid gases and vapours (e.g. sulphur dioxide, hydrogen chloride)
- K2: Ammonia and organic ammonia derivatives
- P3 R D: Solid and liquid particles, toxic and radioactive substances, microorganisms (e.g. bacteria, viruses, enzymes)
Features
- DIN40 threaded connection (EN 148-1), compatible with RD40 masks
- Combination filter for wide-ranging protection in hazardous environments
- Reusable (R), Dolomite-tested (D)
- Compatible with 3M full- and half-face masks and powered air respirators
- Typical uses: chemical industry, waste management, emergency response, nuclear
3M Compatibility
Technical Data
| Filter type | ABEK2P3 R D |
| Weight | approx. 377 g |
| Connection | DIN40 thread (EN 148-1), compatible with RD40 |
| Standards |
|
| Materials |
|
Storage and Packaging
- Shelf life: 5 years from manufacturing date (if stored properly)
- Storage: dry, -10 °C to +50 °C, max. 75 % relative humidity
- After opening: store airtight or replace the filter
Overview Table of Filter Classes
| Filter Class | Meaning | Typical Application / Protection |
|---|---|---|
| Particulate Filters (P Classes) | ||
| P1 | For coarse mechanically generated particles (up to 4 times the limit value) | Grinding, milling, drilling |
| P2 | For finer mechanical and thermal particles (up to 10 times the limit value) | Welding, soldering, fine dust |
| P3* | For highly toxic or very fine particles (up to 30 times the limit value) | Asbestos, mold, viruses, nanoparticles |
| Gas and Vapor Filters (A–K, Hg, AX) | ||
| A* | Organic vapours (boiling point > 65 °C) | General protection against solvents |
| A1* | Like A, with lower capacity | Water-based paints, paints with residual solvents |
| A2* | Like A, with higher capacity | Petrol, paint thinners, solvent-based paints, adhesives |
| B* | Inorganic gases/vapours | Chlorine, hydrogen sulphide, hydrogen cyanide |
| E* | Acid gases/vapours | Sulphur dioxide, hydrochloric acid, acid mists |
| K* | Ammonia and derivatives | Fertilizers, slurry, laboratory processes |
| Hg | Mercury vapour | Laboratory accidents, hazardous waste (max. 50 h use) |
| AX | Organic vapours (boiling point < 65 °C) | Highly volatile solvents (only with full-face mask) |
| Additional Markings | ||
| R | Reusable | Suitable for multiple work shifts |
| NR | Not reusable | Approved for one work shift only |
| D | Dolomite dust test passed | Increased service life under high dust load |
* Note: Please ensure that the selected respiratory protective equipment is suitable for the specific hazardous substance and its concentration before use, in accordance with applicable regulations and standards.
3M Deutschland GmbH, Carl-Schurz-Straße l, 41453 Neuss, Deutschland, 02131-14-2914 / 0, [email protected], www.3m.com/msds
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 0405459692343 | 720400 |
