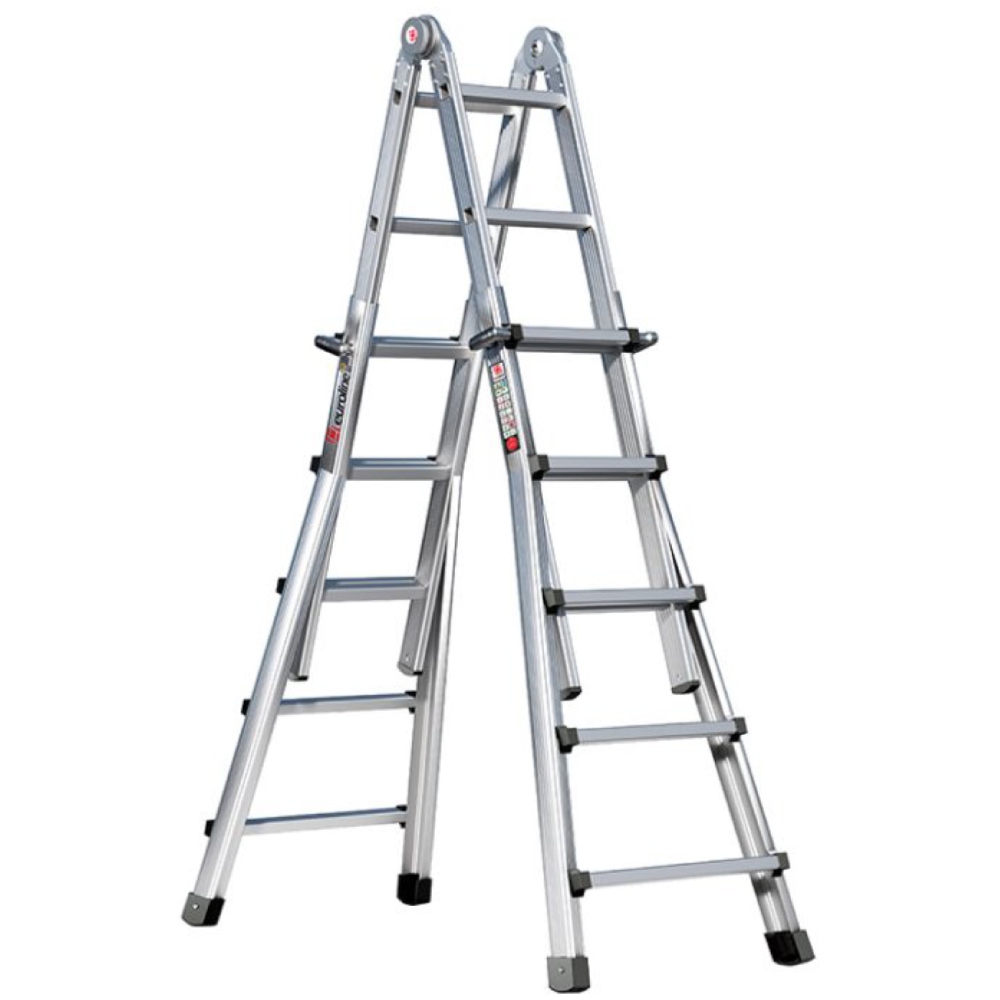

Euroline 31601 Vario 4x5 Telescopic Combi Ladder, working height 5.9m
Euroline 31601 Vario 4x5 Telescopic Combi Ladder, working height 5.9m
€ 524.73 524.73 incl. VAT (440.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: euroline GmbH
Country of origin: DE/0004
Customs tariff number: 7616999000
Weight per piece: 16.6 kg
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
euroline Telescopic Combi Ladder Vario No. 31601 in the version 4x5 rungs is a versatile aluminium telescopic folding ladder for professional use.
- Length (approx.): 1.52 – 5.20 m
- Platform height (approx.): 1.80 / 4.10 m
Applications

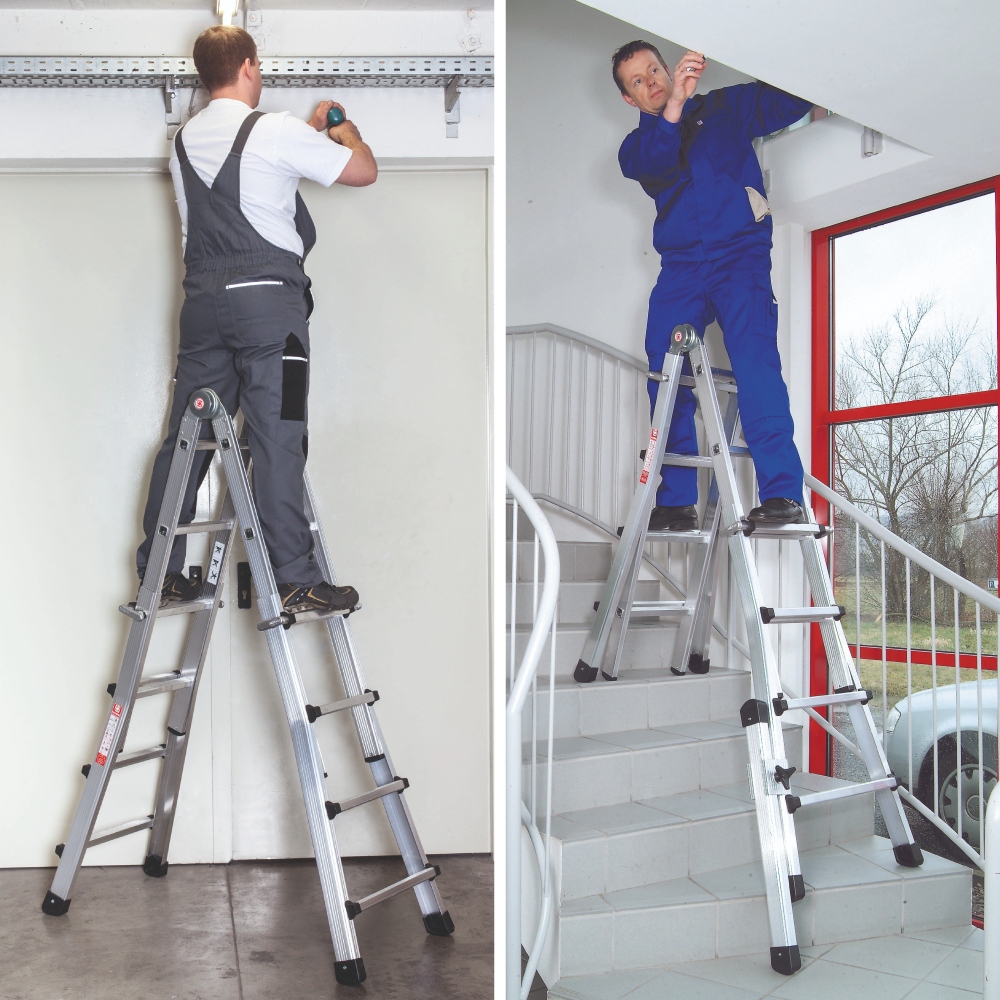

- Flexible access solution for trades, industry and construction

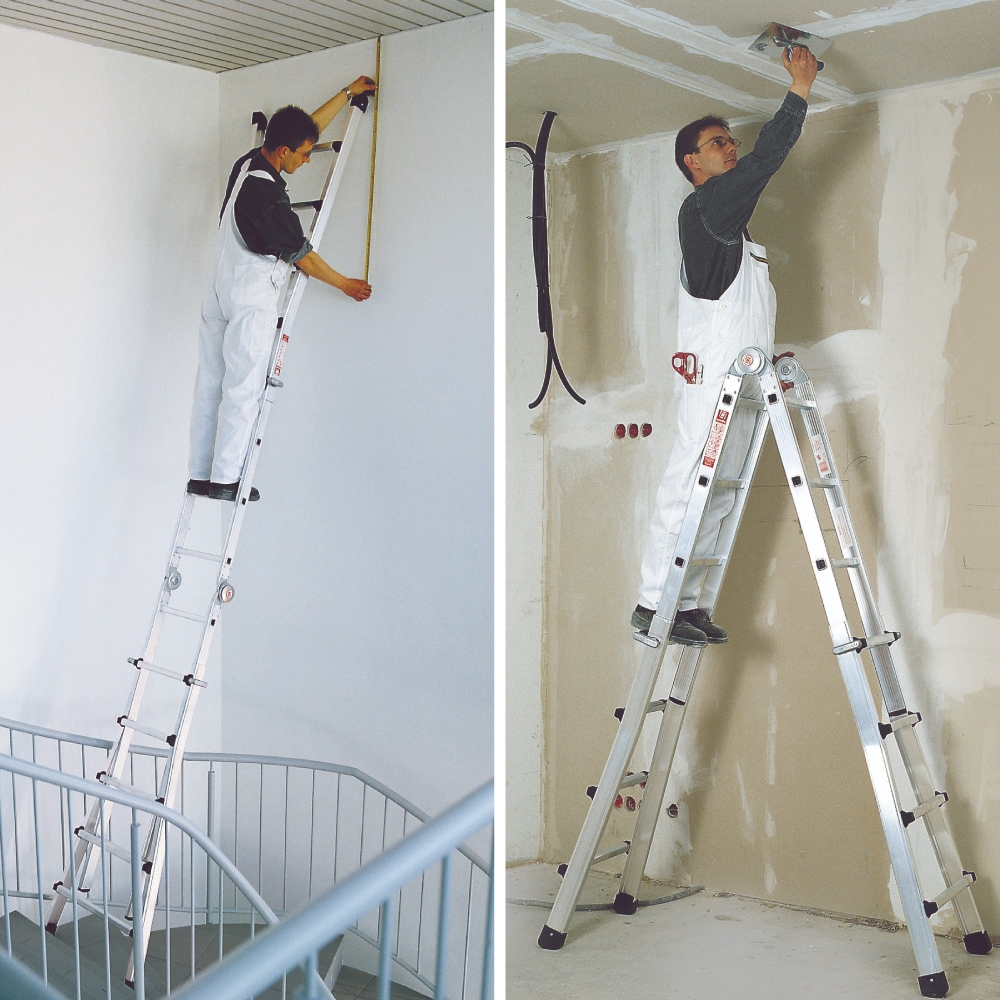

- Work on façades, ceilings and installations indoors and outdoors

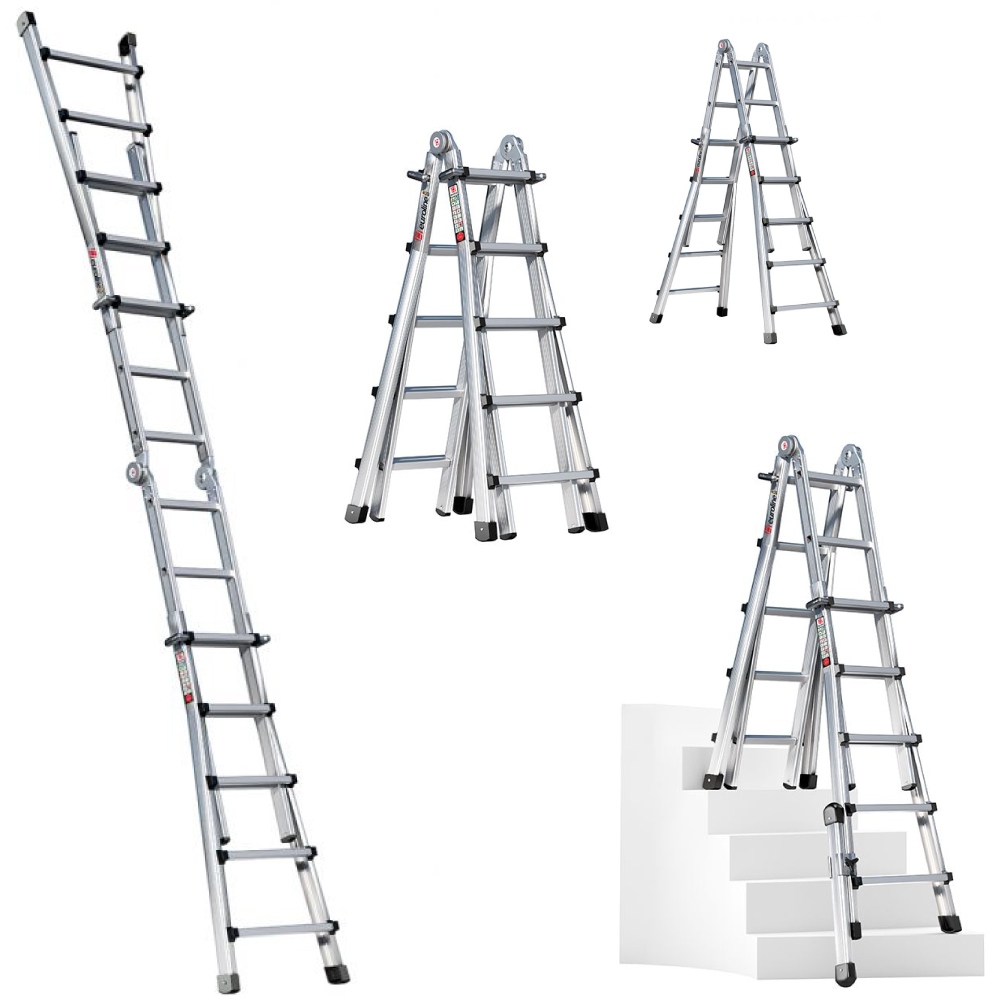

- Use as height-adjustable stepladder or leaning ladder
- With optional stile extension (art. no. 3160011) also suitable as stairway ladder
- Ideal for maintenance, assembly, facility management and demanding DIY users
Features & Benefits
- Telescopic folding ladder: adjustable rung by rung up to almost twice the basic length
- Robust locking levers for securing the telescopic stiles
- Compact for transport: very space-saving when closed as a stepladder (transport dimensions only 1.52 x 0.64 x 0.22 m)

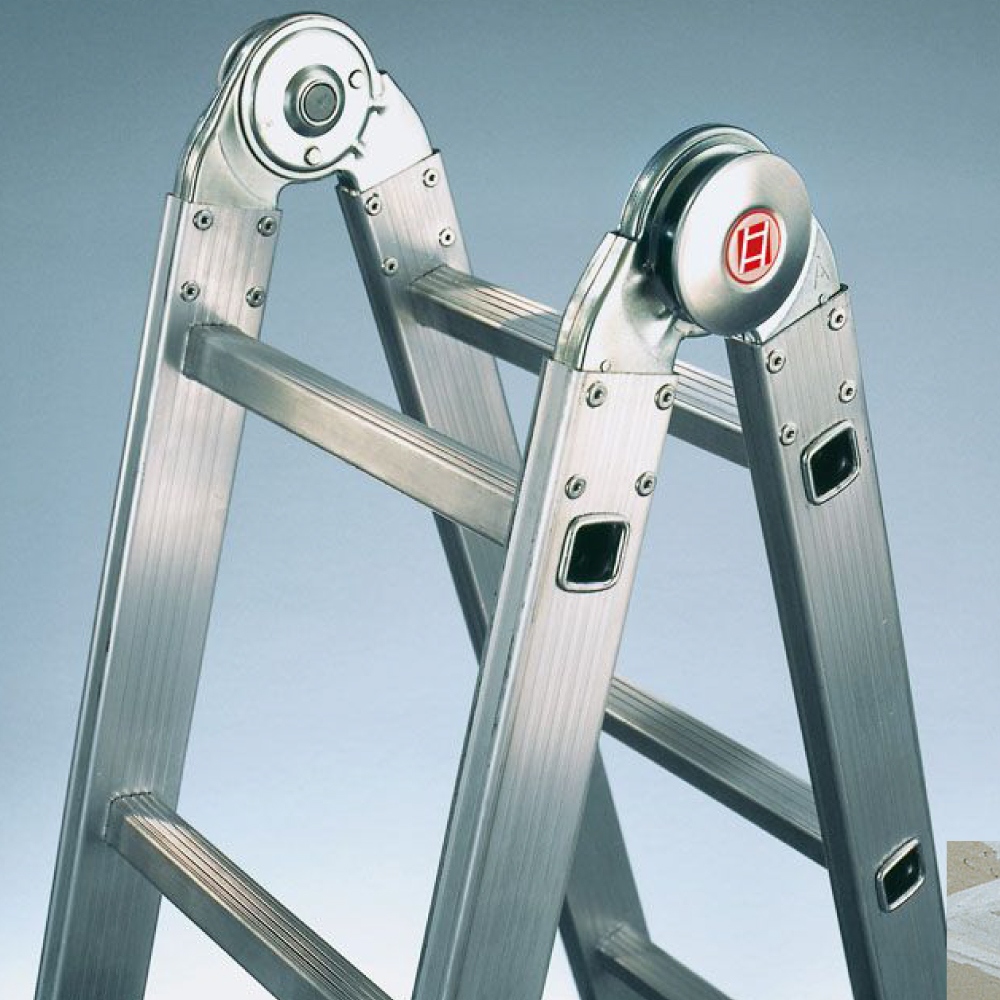

- Automatic safety hinges that lock by themselves, without risk of pinching
- Easy-running mechanism for quick and safe height adjustment
- High stability thanks to large spread and wide base
- Maximum load 150 kg (manufacturer’s specification)
- Accessories: stile extension art. no. 3160011, stabiliser / outriggers art. 31631, further accessories such as wheel set and traverse available
Standards & safety
- Complies with the general standard for ladders (according to manufacturer)
- When used as a leaning ladder with the recommended stabiliser (art. 31631), the ladder meets the requirements of EN 131-4 for leaning ladders with outriggers
- Maximum permissible load: 150 kg
Technical data (aluminium telescopic ladder Vario No. 31601)
| Number of rungs | 4x3 | 4x4 | 4x5 | 4x6 |
| Ladder length L as leaning ladder (m) | 2.95 | 4.05 | 5.20 | 6.30 |
| Working height A as leaning ladder (m) | 3.85 | 4.85 | 5.90 | 7.00 |
| Vertical height as stepladder (m) | 1.45 | 1.95 | 2.50 | 3.05 |
| Spread as stepladder (m) | 0.70 | 0.90 | 1.05 | 1.25 |
| Lower width (m) | 0.49 | 0.56 | 0.62 | 0.70 |
| Transport dimensions (m) | 0.95 x 0.50 x 0.22 | 1.25 x 0.57 x 0.22 | 1.52 x 0.64 x 0.22 | 1.80 x 0.70 x 0.22 |
| Weight (kg) | 10.0 | 12.5 | 14.5 | 16.5 |
| Article number | 3160103 | 3160104 | 3160105 | 3160106 |
euroline GmbH Friedrich Schlichte, Neubrunnenweg 5, D-31812 Bad Pyrmont (Germany), +49(0)5281 / 93204 0, [email protected], www.euroline-leitern.de
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4003311316057 | 3160105 |
