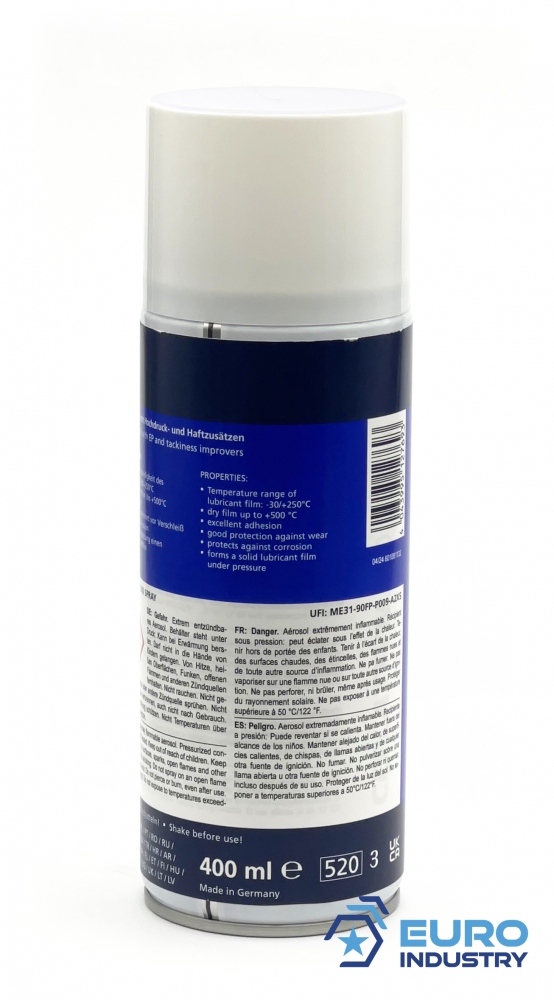

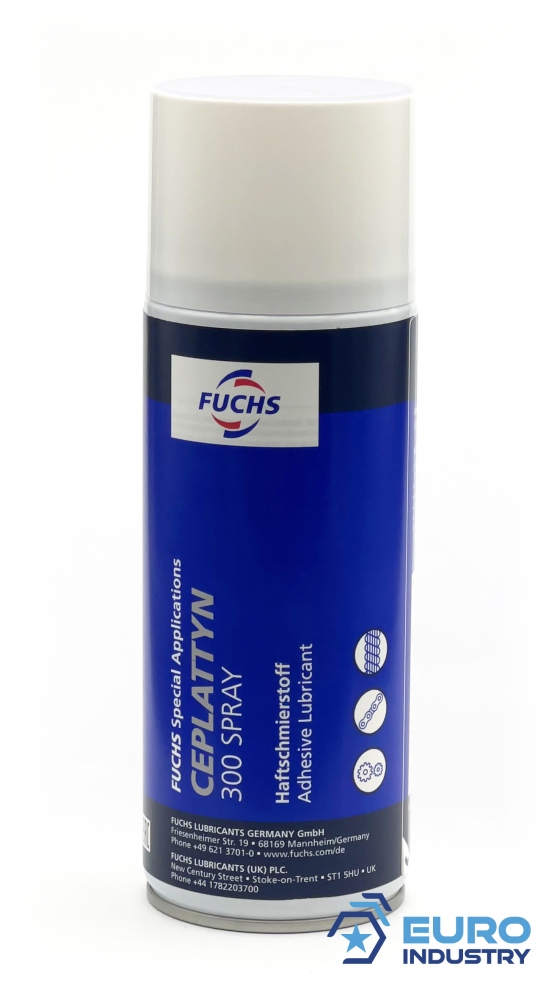

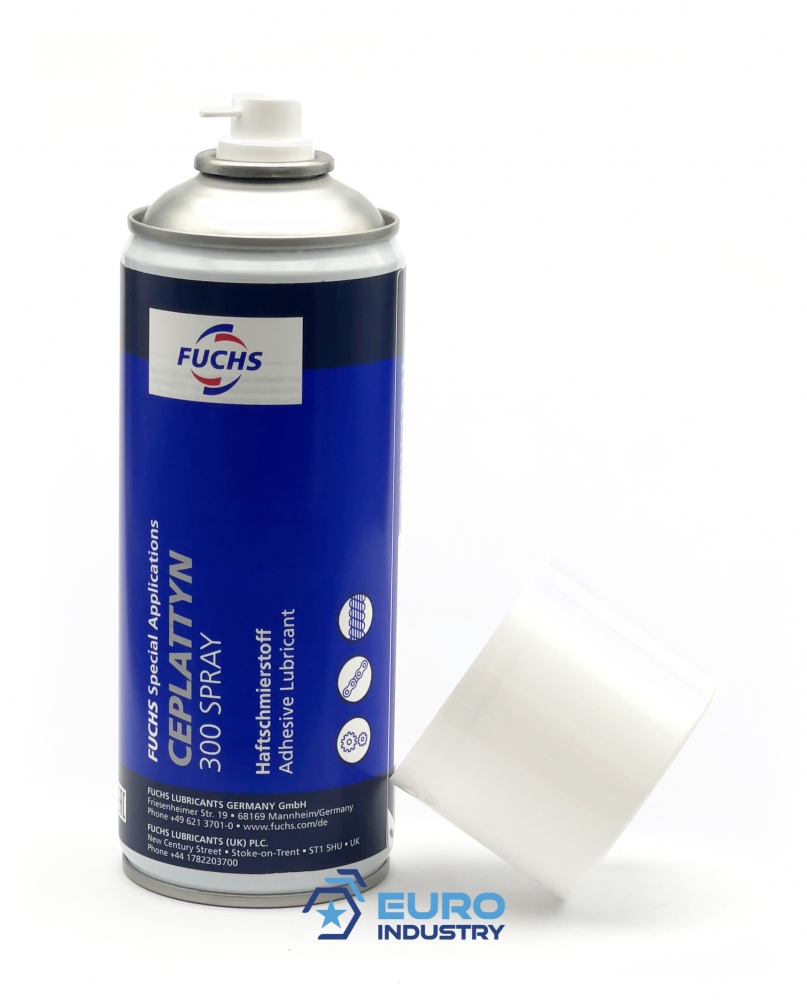

Fuchs Ceplattyn 300 Spray Graphite Adhesive lubricant 400ml

Fuchs Ceplattyn 300 Spray Graphite Adhesive lubricant 400ml

€ 17.79 17.79 incl. VAT (14.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: FUCHS

Country of origin: DE/0004

Customs tariff number: 34039900

Weight per piece: 400 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

five + one = ?

( Examples: two + three = 5, three - five = -2 )

Fuchs CEPLATTYN 300 SPRAY is a graphite-containing paste spray with EP and tackiness improvers. It is free of bitumen, heavy metals and solvents.

Field of applications

CEPLATTYN 300 SPRAY is used as a lubricant for open gears, gear racks and sliding surfaces
It is also used as an assembly paste for bolts/screws and pins
CEPLATTYN 300 SPRAY can also be used for lubrication and conservation of wire ropes
Furthermore, CEPLATTYN 300 SPRAY is applied to chains, sliding surfaces and gears in steel hydraulics construction as well as in open cast mining and pits (approvals available)

Characteristics

Temperature range of lubricant film: -30 / +250 °C
Dry lubricating film up to +500 °C
Very good adhesion
Excellent protection against wear
Protects against corrosion
Forms a solid lubricant film under pressure
Forms a 'dry', dust-repellant lubricating film
Water-resistant

Application notes

Apply CEPLATTYN 300 SPRAY uniformly onto cleaned surfaces. CEPLATTYN 300 is also available in standard packaging

Technical data

Manufacturer No.	601081132
Color	black
Temperature range	-30 / +250 ° C
Dry lubricating film up to	+500 ° C
Thickener	Al-X
Solid lubricants	C
Base oil viscosity [40°C]	1300 mm²/s
Erichsen screw test [M10x60 Fv = 30 kN]
Thread friction value	0,07
Top friction value	0,1

Branches

Agriculture, forestry
Cement
Construction
Machinery, equipment
Mining, quarrying, exploration
Other industries
Power generation
Steel, metals
Transport
Consumer, aftermarket

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR,

fuchs-ceplattyn-300-spray-graphite-containing-paste-spray-tds-datasheet-en.pdf (169.91 KB)
