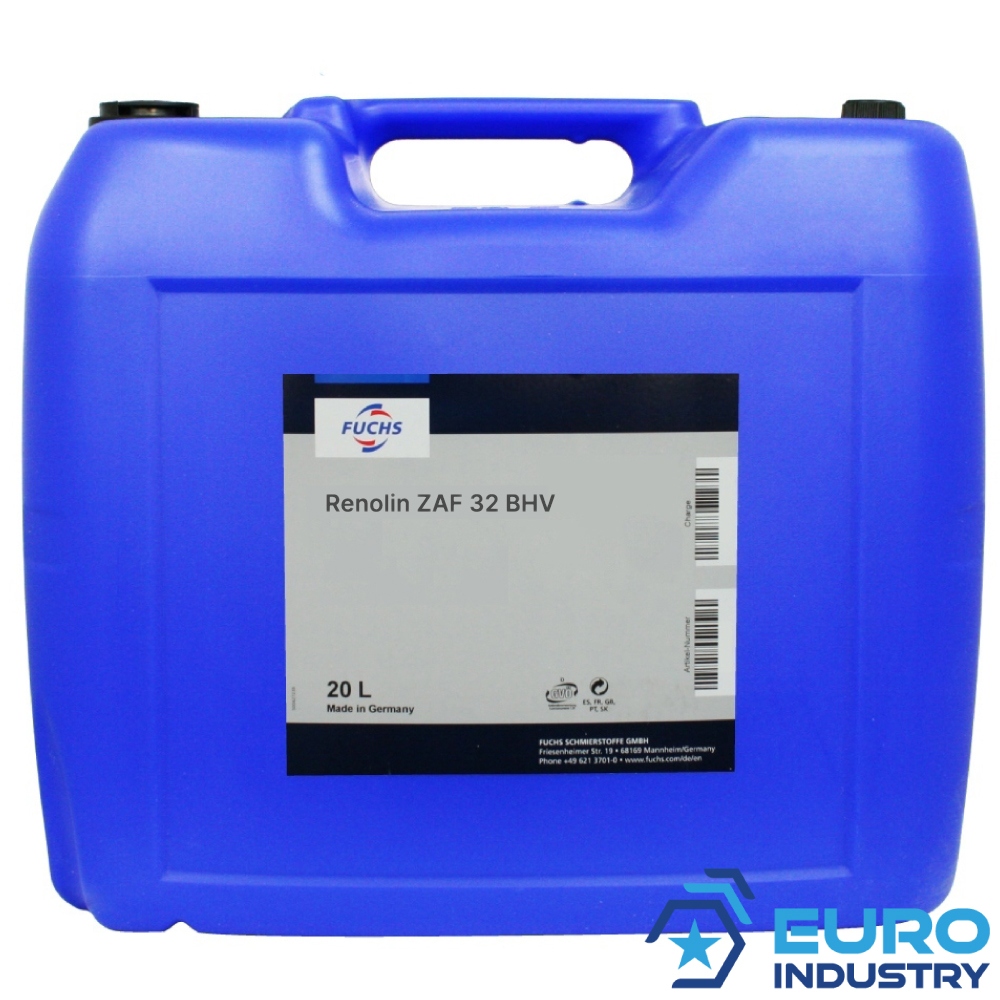

Fuchs Renolin ZAF 32 BHV Hydraulic Oil HVLP zincfree 20L canister

RENOLIN ZAF 32 BHV Zinc- and ash-free hydraulic oil with excellent low-temperature properties and high, shear-stable viscosity index. Water is separated by demulsifying properties, excellent non-ferrous metal compatibility and high wear protection are ensured by modern additive system.

Applications

Developed especially for brake units in rail vehicles, optimum material compatibility, matched to typically used components.

Specifications / Approvals

• DIN 51524-3: HVLP
• ISO 6743-4: HV (except flash point).
• Knorr Bremse I-N000.23 (Rev. 07-19.10.2021)
• Hanning & Kahl GmbH & Co. KG (01.2022)

Features

• Low foaming tendency
• Good air release properties
• High aging resistance
• Excellent corrosion protection (steel and copper)
• Very good wear protection performance
• Excellent viscosity-temperature behavior, very high and shear-stable viscosity index
• Wide temperature application range
• New zinc- and ash-free additive technology

Technical data

Manufacturer no.	602020192
Density at 15 °C	853 kg/m³
Flash point cleveland	130 °C
Kinematic viscosity at -20 °C	420 mm²/s
Kinematic viscosity at 40 °C	32 mm²/s
Kinematic viscosity at 100 °C	9.5 mm²/s
VI	300
Pourpoint	≤-51 °C

Branches

• Other industries
• Transport

Fuchs Renolin ZAF32 BHV, Fuchs Renolin ZAF-32 BHV, Fuchs Renolin ZAF32BHV
