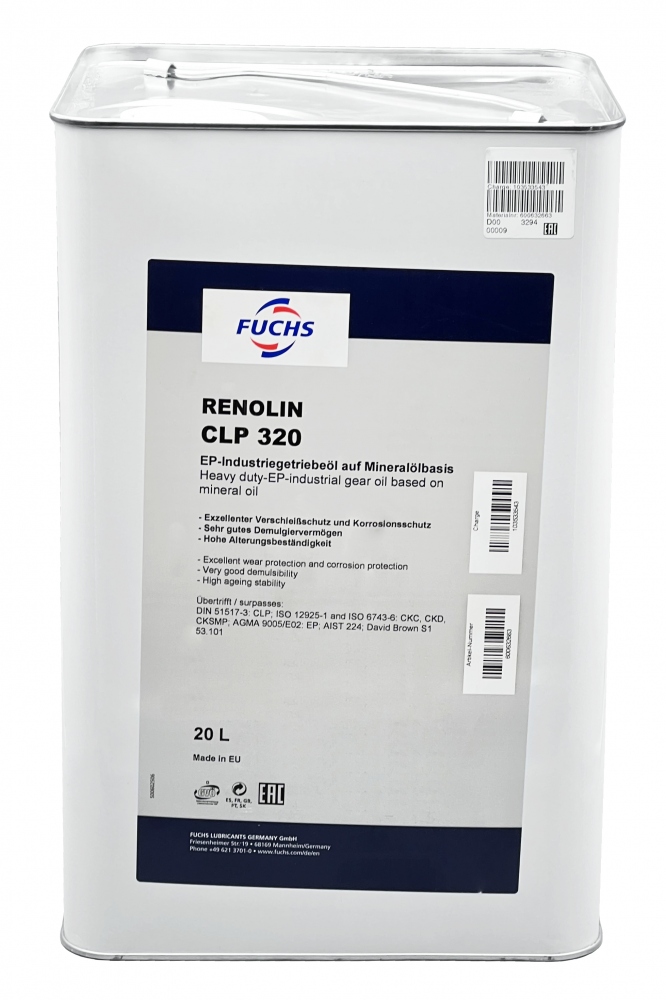

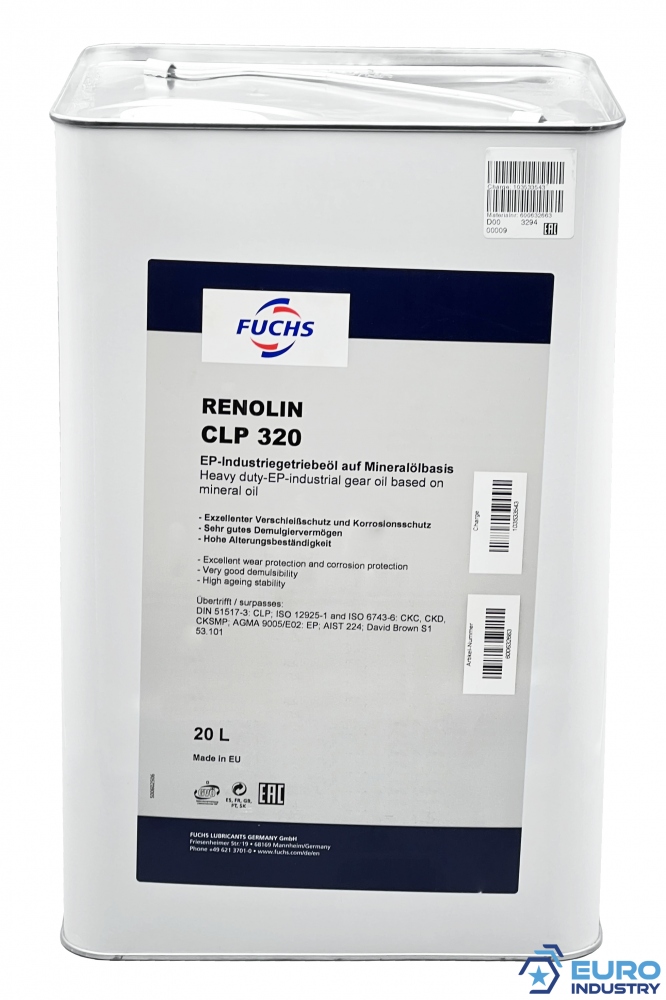

Fuchs Renolin CLP 320 High-performance gear oil 20l canister

Fuchs RENOLIN CLP 320 are high-performance mineral oil-based gear and circulating oils (ISO VG 320) with outstanding extreme pressure characteristics and load carrying capacity to improve corrosion protection (also combat steel and non-ferrous metal corrosion caused by moisture).

Applications

• Universal gear oils for all industrial applications where the machinery manufacturer recommends the use of CLP type oil
• Highly-stressed bearings, joints, pressure spindles, spur and worm drive gears are reliably, effectively and economically lubricated even at elevated temperatures
• The use of these oils guarantees the quiet and smooth running of machinery along with optimum operational reliability

Specifications / Approvals

• DIN 51517-3 (2004): CLP
• ISO 6743-6 and ISO 12925-1: CKC/CKD
• US Steel 224
• AGMA 9005-D95/E02:EP
• David Brown S1 53. 101
• A. Friedrich Flender AG, Bocholt, Germany Flender BA 7300, table A
• Muller Weingarten AG, Germany DT 55 005, 10/2003

Characteristics

• Enhanced gear wear protection from micro-pitting
• Reduced debris denting from generated wear particles
• Improved bearing wear protection
• Outstanding compatibility with a range of sea materials
• Excellent resistance to sludge and deposit formation
• Wide range of applications
• Optimized resistance to rust and corrosion of steel and corrosion of copper and soft metal alloys.
• Resistance to forming and emulsion formation
• Good EP / AW performance, excellent scuffing, load carrying capacity and protection against micropitting
• Excellent FE8 roller bearing wear protection
• Good demulsifying properties, very good foaming behavior
• Free of zinc, ash and silicone oil
• Size: 20 L canister
• Also available in: 205 L canister

Technical data

Manufacturer Part Number	600518936
ISO VG	320
Density at 15 °C	897 kg/m³
Flash point cleveland	>240 °C
Kinematic viscosity at 40 °C	320 mm²/s
Kinematic viscosity at 100 °C	24 mm²/s
VI	95
Pourpoint	-12 °C

Product description Fuchs® Renolin CLP series

Fuchs RENOLIN CLP oils are premium quality extreme pressure gear lubricants, manufactured from the highest quality base oils combined with extreme pressure additives of the sulphur-phosphorus type. This combination provides very high load-carrying properties and affords maximum protection for gear teeth in server service conditions.

Branches

• Mining, quarrying, exploration
• Agriculture, forestry
• Power generation
• Construction
• Transport
• Machinery, equipment
• Cement
• Forging
• Casting
• Metal processing
• Other industries
• Steel, metals

RENOLIN CLP320, RENOLIN CLP-320
