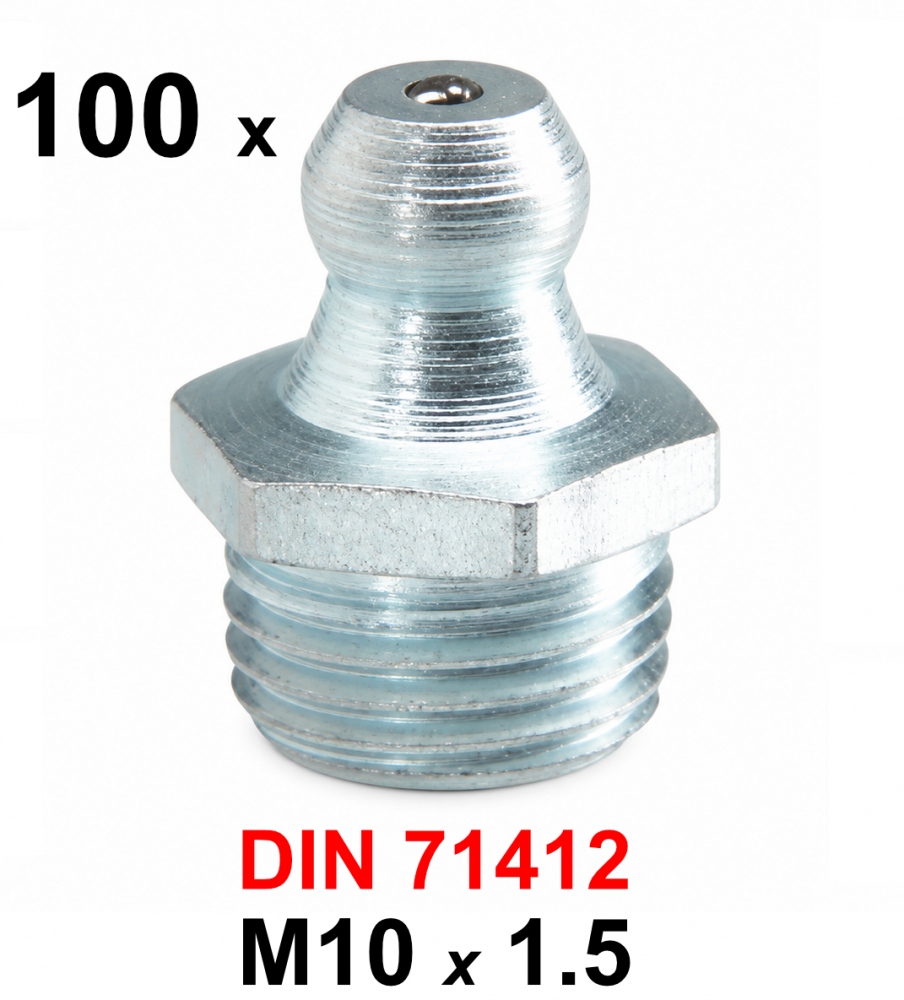

Umeta H1 conical grease nipple DIN 71412 A, steel, M10 x 1.5, 100 pcs
€ 33.26 33.26 incl. VAT (27.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 box
Manufacturer: Umeta
Country of origin: DE/0004
Customs tariff number: 84879059
Weight per piece: 500 g
No problem. Simply fill out the form and we will answer you as soon as possible.
UMETA H1 is a straight conical grease nipple made of steel according to DIN 71412. The straight form A / 180° serves as a lubrication point for manual greasing with suitable hydraulic grease couplers and grease guns.
- Thread: M10 × 1.5
- Packaging unit: 100 pcs
Features
- Conical grease nipple H1 according to DIN 71412
- Metric fine thread
- Straight form A / 180° for frontal access to the lubrication point
- Hexagon size SW 11 for standard tool installation
- Compatible with common hydraulic grease couplers for DIN 71412 grease nipples, e.g. UMETA 501 / 515G
- Lubrication points requiring a straight M10 × 1.5 conical grease nipple
Technical Data
| Manufacturer | UMETA |
| Manufacturer no. | 1101111 |
| Product type | Conical grease nipple H1 |
| Form | Straight, form A / 180° |
| Standard | DIN 71412 |
| Thread | M10 × 1.5 |
| Material | Steel, galvanized |
| Total length L1 | 15 mm |
| Thread length L2 | 5.5 mm |
| Pin length L3 | Not specified in the data sheet |
| Hexagon size SW | 11 mm |
| Packaging unit | 100 pcs |
Applications
- Manual lubrication of bearing and joint lubrication points
- Maintenance work in machine building, plant engineering and industrial servicing
Application Notes
- Screw the grease nipple into the lubrication point until securely seated.
- Attach the grease coupler or hydraulic coupler and lubricate manually.
- Do not add pressure or load specifications unless they are confirmed by the manufacturer data sheet.
E.I.S. Euro Industry Supply GmbH & Co. KG, Heilbronner Str. 150, 70191 Stuttgart, GERMANY, +49 (0) 711 460 59 21 40, [email protected], www.euro-industry.com
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4016532200920 | 1101111 HR |
