Loctite 984569 Static Mix Nozzles for dual cartridges 50ml, 10 pcs

Loctite 984569 Static Mix Nozzles for dual cartridges 50ml, 10 pcs

pics/Loctite/mischduesen/loctite-984569-statische-mischdüse-fuer-50ml-kartuschen-10pcs-idh-1487440.jpg

€ 26.12 26.12 incl. VAT (21.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 box

More…

Manufacturer: Henkel

Country of origin: CH/0039

Customs tariff number: 39269097

Weight per piece: 150 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

nine - five = ?

( Examples: two + three = 5, three - five = -2 )

LOCTITE® 984569 (IDH 1487440) is a static mixing nozzle for 50 ml 2-component cartridges (Type A). It ensures reproducible mixing of two-component adhesives and is compatible with mix ratios 1:1, 2:1 and 4:1.

Specifications

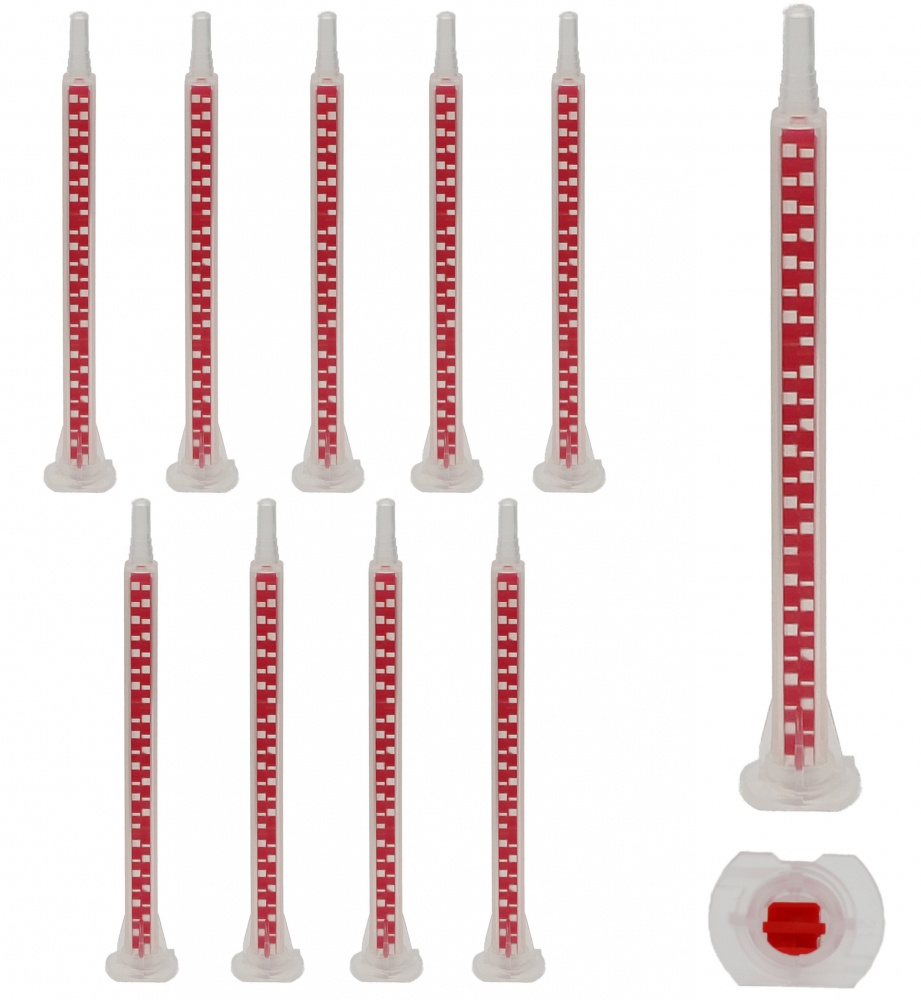

Pack size: 10 nozzles

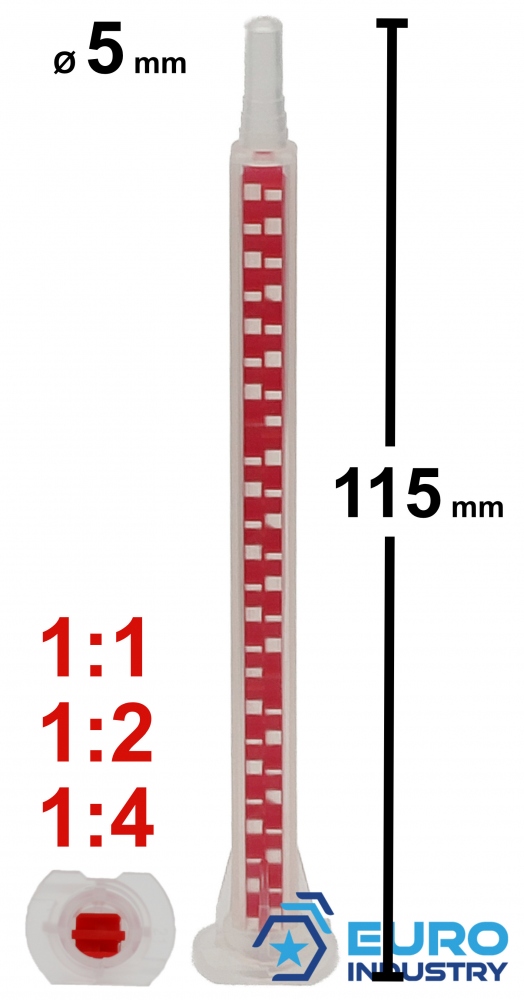

Inner diameter: Ø 5 mm
Length: 115 mm
Mixing elements: 24
Geometry: Quadro, stepped tip

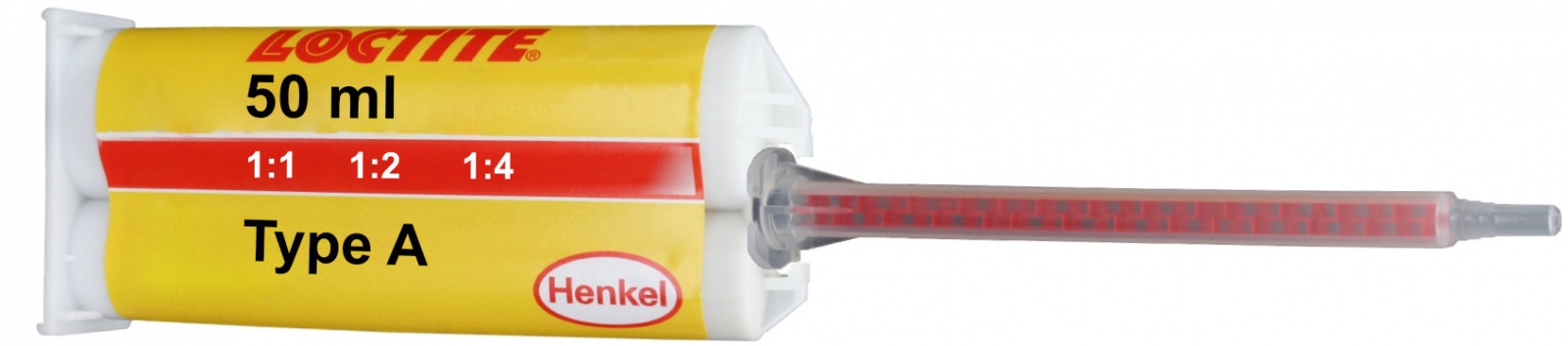

Cartridge type: 50 ml, Type A
Mix ratios: 1:1 / 2:1 / 4:1

Compatible 50 ml structural adhesives (selection)

Description	IDH No.	Feature, colour
LOCTITE® EA 9492-LI – 50 ml	2344912	High-temperature, white
LOCTITE® EA 9466 – 50 ml	2057235	General purpose, light beige
LOCTITE® EA 9489 – 50 ml	2056901	Slow cure, grey
LOCTITE® EA E-120HP – 50 ml	–	Extended working time, beige
LOCTITE® EA 9483 – 50 ml	2056392	Free-flowing, crystal clear
LOCTITE® EA 9464 – 50 ml	2058064	Thixotropic, gap-filling, grey
LOCTITE® EA 9461 – 50 ml	2061254	For thermoplastics, thixotropic
LOCTITE® EA 9455 – 50 ml	2036183	Free-flowing, transparent
LOCTITE® EA 9450 – 50 ml	2036533	Non-sag, transparent
LOCTITE® EA 3430 – 50 ml	2035020	Fast cure, crystal clear
LOCTITE® EA 3422 – 50 ml	2035001	Non-drip, whitish
LOCTITE® EA 9394 AERO – 50 ml	2345667	Structural paste, up to 177 °C (aerospace), grey

Benefits

Consistent mix quality without manual pre-mixing
Clean, directed bead for precise joint filling
Fast cartridge changeover in line and workshop
For structural adhesives in assembly, equipment building and maintenance

Recommended accessories

LOCTITE® 96001 – manual dispenser 50 ml (1:1 & 2:1)

Henkel Loctite 984569, static mixing nozzle, 50 ml, 24 elements, Ø 5 mm, 1:1, 2:1, 4:1

Information on product safety (Manufacturer, Contact)

Henkel AG & Co. KGaA, Henkelstr. 67, 40589 Düsseldorf, GERMANY, +49 211 7970, [email protected], www.henkel.com

No files available for download
