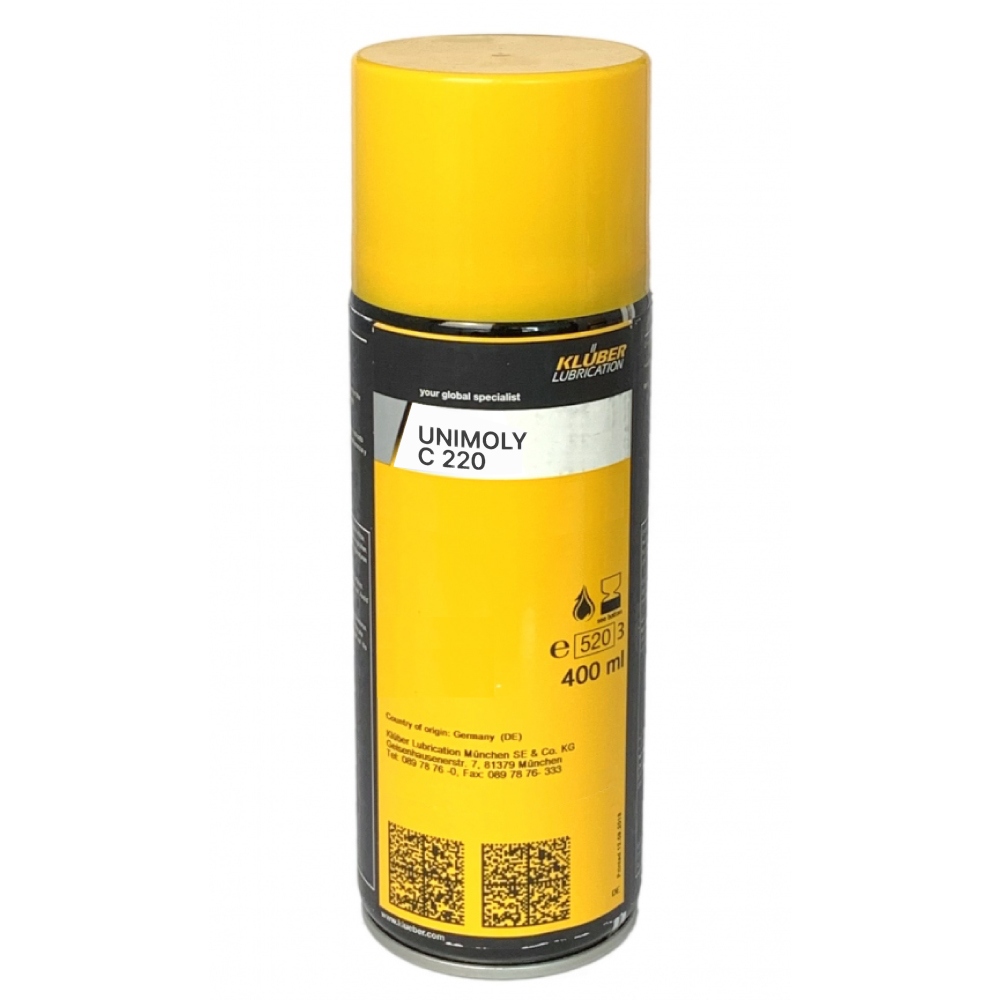

Klüber UNIMOLY C 220 Special bonded coating 400ml spray

UNIMOLY C 220 Spray, High-pressure resistant, hygrosetting bonded coating | N° 081053

• UNIMOLY C 220 is a hygrosetting grey bonded coating with an MoS2 base (molybdenum disulfide) and an inorganic binding agent.
• UNIMOLY C 220 is a fluid, ready-to-use product containing a mixture of flammable solvents. Once applied and hardened, the bonded coating is very resistant to pressure and has a wide temperature range.
• Owing to its structure, UNIMOLY C 220 is particularly suitable for high-vacuum applications. Adhesion is very good on special steel, metal and electroplated surfaces.
• Temperature range: -180°C to +450°C
• Size: 400ml spray can
• Also available in: 1l can, 20l bucket

Benefits for your application

• Hygrosetting at room temperature
• Suitable for high pressures
• Resistant to low and high temperatures
• Suitable for vacuum applications
• Excellent adhesion on metals
• Suitable for materials susceptible to cold welding, e.g. special steel nuts and bolts
• Well-proven as an assembly aid
• Improves the running-in process
• Prevents stick-slip

Applications

• UNIMOLY C 220 reduces friction and wear in metal/metal sliding contacts. It prevents nuts and bolts from seizing, and ensures a uniform tightening moment and low friction.
• UNIMOLY C 220 is also used as a running-in agent, e.g. for gears. Other fields of application are clinch bolts, hinge and lock components, slideways, spindles and other slowly sliding components subject to high loads.

Application notes

• Stir or shake well before use. This also applies to the spray version. UNIMOLY C 220 can be applied by immersion, spraying or by brush. Other types of application are indicated upon request. The surfaces to be coated must be cleaned/ degreased and be completely free from oil, grease, water, corrosion and scale. When applying UNIMOLY C 220 by spraying, use a paint spray gun.
