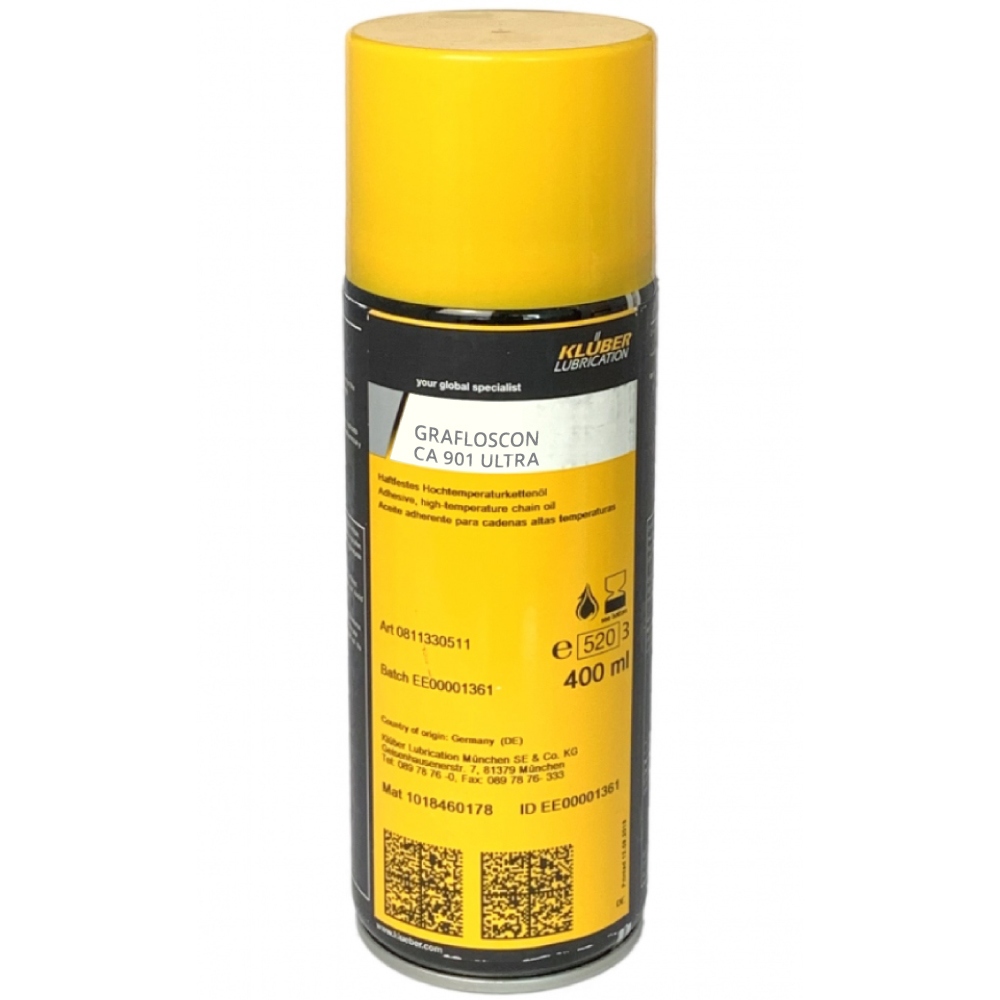

Klüber GRAFLOSCON CA 901 ULTRA Adhesive lubricant 400ml spray can
Klüber GRAFLOSCON CA 901 ULTRA Adhesive lubricant 400ml spray can
€ 613.32 51.11 incl. VAT (42.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 12 pieces
Manufacturer: KLUBER
Country of origin: DE/0004
Customs tariff number: 27101999
Weight per piece: 450 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
GRAFLOSCON CA 901 ULTRA Spray Adhesive lubricant containing graphite | N° 081229
- GRAFLOSCON CA 901 ULTRA, a solvent-containing mineral oil based adhesive lubricant with a high content of solids, is applied by spray can.
- This spray is extremely adhesive, resistant to high pressure, and has good anti-corrosion properties.
- Volume: 400ml spray can
Benefits for your application
- Extremely adhesive
- Resistant to high pressure
- Easy straightforward application
Application
- GRAFLOSCON CA 901 ULTRA is suitable for the lubrication of open gear drives, spur and bevel gears, toothed racks, slide ways, guide rails, fixing cams, adjusting spindles, cam disks, etc.
- It is also suitable for the external lubrication of chains and wire ropes but not for friction pulley ropes.
Application notes
- Application by spray can. Shake well before use. GRAFLOSCON CA 901 ULTRA must not be exposed to direct heat (sunlight, radiant heaters, open fire, etc.).
Technical specifications
| Colour space | black |
| Density at 20 °C | approx. 1.05 g/cm³ |
| Worked penetration, DIN ISO 2137, 25 °C, lower limit value | 310 x 0.1 mm |
| Worked penetration, DIN ISO 2137, 25 °C, upper limit value | 350 x 0.1 mm |
| Thermal stability of the lubricating film | <= 180 °C |
| Functional lubricant film | >= -20 °C |
| Drop point, DIN ISO 2176, IP 396 | >= 180 °C |
| Four-ball tester, welding load, DIN 51350 pt. 04 | approx. 4 400 N |
| Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx. | 24 months |
Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR,
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 943150028 |
