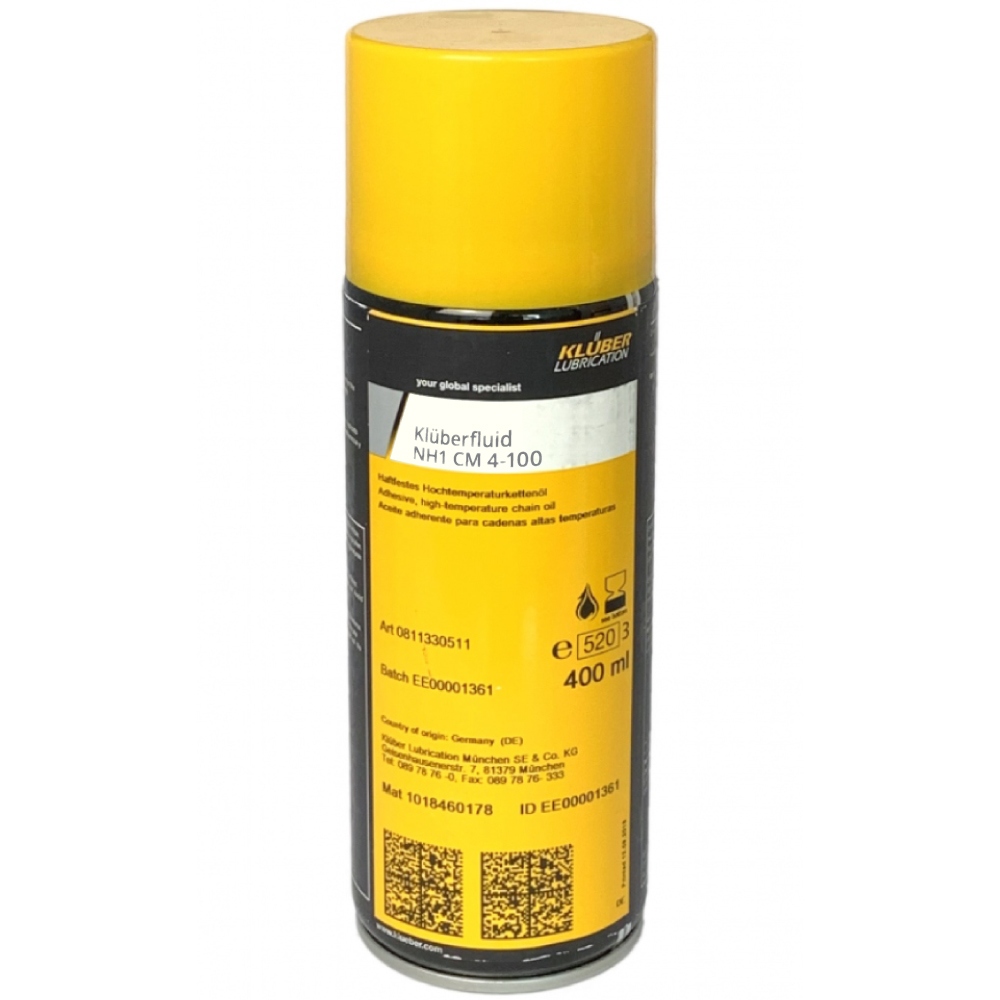

Klüberfluid NH1 CM 4-100 Semi-dry lubricating fluid 400ml spray can

Klüberfluid NH1 CM 4-100 Semi-dry lubricating fluid 400ml spray can

pics/Kluber/Copyright EIS/spray/kluberfluid-nh1-cm-4-100-semi-dry-lubricating-fluid-400ml-spray-can.jpg

€ 35.97 35.97 incl. VAT (30.23 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: KLUBER

Country of origin: DE/0004

Customs tariff number: 34039900

Weight per piece: 365 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

one + eight = ?

( Examples: two + three = 5, three - five = -2 )

Klüberfluid NH1 CM 4-100 Spray Semi-dry lubricating fluid offering very good adhesion | N° 081367

Klüberfluid NH1 CM 4-100 is a spray based on a fully synthetic hydrocarbon oil combined with a carefully selected, highperformance solid lubricant and additive package.
We deliberately designed this product without mineral oil in order to minimise the risk of MOSH/MOAH contamination. If applied correctly, a semi-dry lubricating effect can be attained with this product.
Klüberfluid NH1 CM 4-100 shows very good adhesion to surfaces and high load-carrying capacity. As it is also highly resistant to ageing and oxidation, the product enables longer relubrication intervals and hence lower lubricant quantities being required.
Temperature range: -35°C to +180°C
Volume: 400ml spray can

Benefits for your application

NSF H1 registered for higher process reliability
Reduction of lubricant quantities possible due to
- excellent resistance to ageing and oxidation
- very good penetration behaviour
Reliable operation because of very good resistance to water, steam and cleaning agents
The formulation does not contain any saturated and aromatic mineral oil components

Application

The product can be used for the lubrication of chains, joints and guideways as well as of hinges and locks, even when exposed to media. It was especially developed for the food-processing and pharmaceutical industries.
Due to its performance characteristics, Klüberfluid NH1 CM 4-100 Spray can also be used in other industries.

Application notes

Please apply Klüberfluid NH1 CM 4-100 Spray evenly. For the product to provide its full effect, we recommend thorough cleaning of the lubrication point prior to application.
If your production process does not allow cleaning, we will be pleased to support you in checking the miscibility of greases and determining relubrication intervals. Do not spray against naked flame or onto hot or incandescent objects. Keep away from ignition sources. Protect against direct sunlight and temperatures above 50 °C. Shake well before use.

Technical specifications

Chemical composition, solid lubricant	PTFE
Chemical composition, type of oil	synthetic hydrocarbon oil
Colour space	white
Viscosity index, DIN ISO 2909	120
ISO viscosity grade, DIN ISO 3448	100
Density at 20 °C	approx. 0.86 g/cm³
Pour point, DIN ISO 3016	<= -40 °C
Flash point, DIN EN ISO 2592, Cleveland, open-cup apparatus	>= 240 °C
Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C	approx. 12.1 mm²/s
Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C	approx. 100 mm²/s
Lower service temperature	-35 °C / -31 °F
Upper service temperature	180 °C / 356 °F
Four-ball EP tester, welding load, DIN 51350 part 2	approx. 3 000 N

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR,

kluberfluid-nh1-cm-4-100-spray-semi-dry-lubricating-fluid-datasheet.pdf (113.81 KB)
