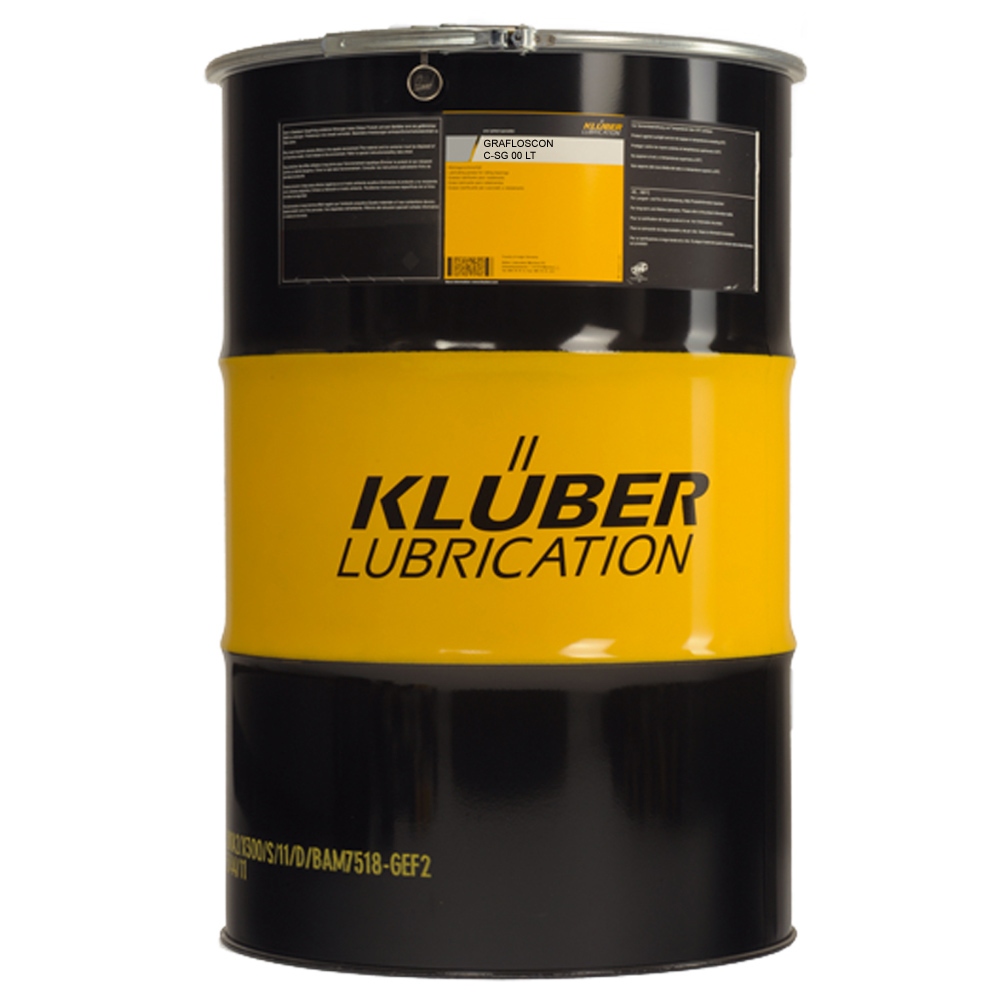

Klüber GRAFLOSCON C-SG 00 LT Lubricant for open girth gear drive 180kg
Klüber GRAFLOSCON C-SG 00 LT Lubricant for open girth gear drive 180kg
€ 7704.42 7,704.42 incl. VAT (6,474.30 excl. VAT), per piece *
Availability: shipping in 1-2 weeks
Packaging unit: 1 piece
Manufacturer: KLUBER
Country of origin: BE/0017
Customs tariff number: 27101999
Weight per piece: 200.0 kg
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
GRAFLOSCON C-SG 00 LT is a high-performance sprayable lubricant with good adhesion properties especially at low temperatures.
Its special composition of semi-synthetic base oil (synthetic hydrocarbon oil and mineral oil) as well as the functional additives enable excellent anti-wear properties and corrosion protection.
Solid lubricant particles are also combined in the formulation to ensure reliable operation under starved lubrication conditions.
Its special composition of semi-synthetic base oil (synthetic hydrocarbon oil and mineral oil) as well as the functional additives enable excellent anti-wear properties and corrosion protection.
Solid lubricant particles are also combined in the formulation to ensure reliable operation under starved lubrication conditions.
- Content: 180 kg barrel
Benefits for your application
- Highly efficient and reliable operation even at low service temperatures
- Suitable for delivery via centralised lubrication systems
- Excellent pumpability at low temperatures with good adhesion at high temperature
- Cost-effective performance use due
- Highly effective anti-wear and anti-corrosion performance enabling extended open gear lifetime
- Lower lubricant consumption with reduced maintenance requirements and associated costs
Application
- GRAFLOSCON C-SG 00 LT was developed for the lubrication of open gear drives and splines incorporated in earthmoving equipment, rotary kilns, tube mills used in the mining, cement, lime, gypsum, and chemical industries
- GRAFLOSCON C-SG 00 LT may also be considered a suitable solution for other open gear types as well as slide and guide rails, large chains, wire ropes and similar equipment
Technical specifications
| Article number | 39217 |
| Lower service temperature | -40 °C / -40 °F |
| Upper service temperature | 90 °C / 194 °F |
| Colour space | black |
| Texture | short-fibred |
| Texture | homogeneous |
| NLGI grade, DIN 51818 | 00 |
| Kinematic base oil viscosity, DIN 51562, part 01/ASTM D-445/ASTM D 7042, 40 °C (no polymer content) | approx. 130 mm²/s |
| Four-ball tester, welding load, DIN 51350 pt. 04 | >= 5 000 |
| Water resistance, DIN 51807 pt. 01, 3 h/90 °C, rating | 0 - 40 |
| Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx. | 24 months |
| Density at 20 °C | approx. 0.96 g/cm³ |
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 039217 |
