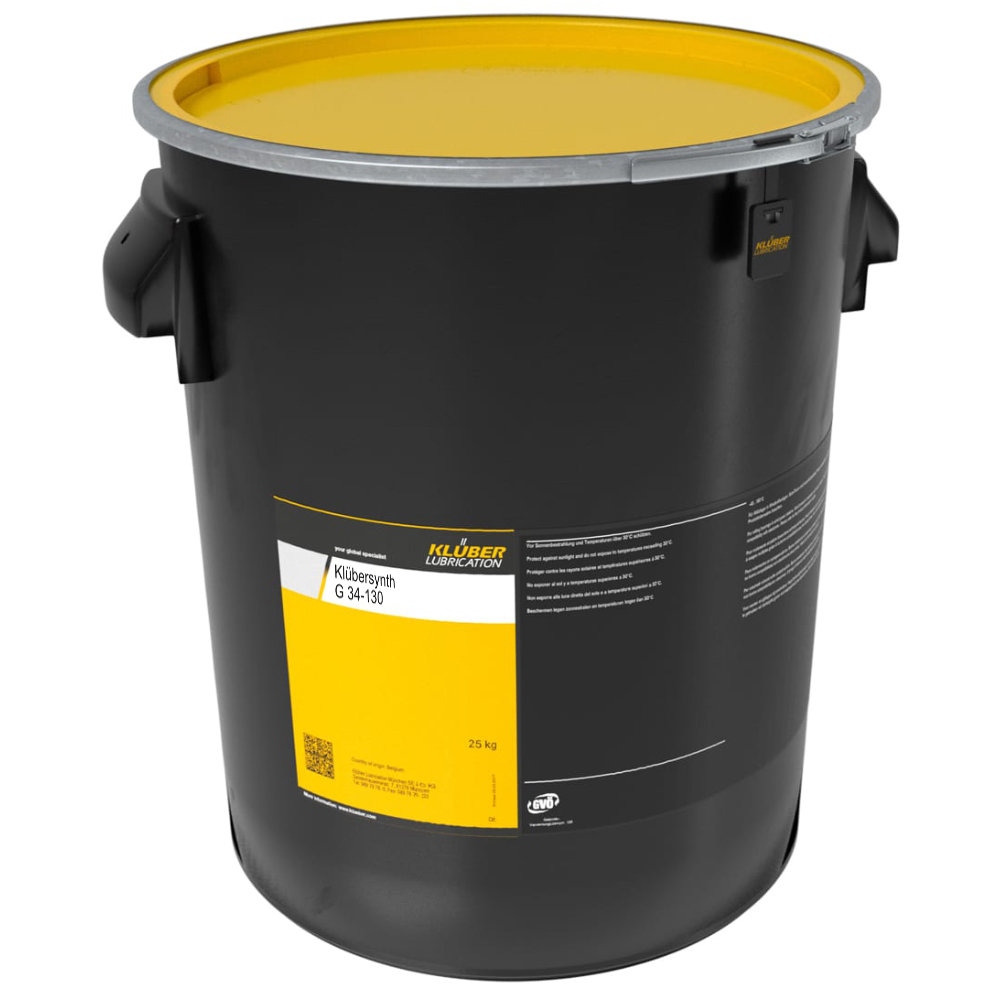

Klübersynth G 34-130 Special grease for small gears 25kg bucket

Special grease for small gears.

Klübersynth G 34-130 is a lubricating grease based on synthetic hydrocarbon oil, mineral oil, special Ca soap and polyurea. It has a wide service temperature range, good antiwear properties and high resistance to ageing. Klübersynth G 34-130 provides excellent protection against tribocorrosion resistance to water and good adhesion.

Benefits for your application

• Special grease for small gears
• Suitable for aluminium components
• Wide service temperature range
• Good protection against wear
• Excellent protection against tribocorrosion
• Easily applicable through automatic metering devices

Application
For gears, bearings, joints and slideways, for example in machines for craftsmen and do-it-yourselfers. Generally suitable for small and miniature gears with steel/steel, steel/plastic and plastic/plastic friction components. Klübersynth G 34-130 is particularly suitable for slideways with aluminium sliding components and for the lubrication of trapezoidal or ball-type threaded spindles.

Application notes
Immersion lubrication of gears up to a peripheral speed of approx. 5 m/s and for tooth flank greasing up to approx. 4 m/s.
The product is applied by brush, spatula or automatic metering devices. The product can normally be applied by means of centralised lubricating systems. Please note, however, that due to different system configurations and application conditions the pumpability of the product has to be confirmed for each individual application. We will be pleased to provide assistance in this matter.

Service temperature range:
We recommend a general service temperature range between approx. – 30 and 130 °C. Immersion lubrication is possible starting from approx. – 20 °C, and the applied lubricant film (e.g. on tooth flanks) is functional to approx. –  40 °C.
Indicated service temperatures are guide values depending on the lubricant’s structure, the intended use and the application technology.

Product data

Article number	020501
Color space	beige
Texture	homogeneous
Density at 20 °C	approx. 0.87 g/cm³
Texture	short-fibred
Worked penetration, DIN ISO 2137, 25 °C, lower limit value	355 x 0.1 mm
Worked penetration, DIN ISO 2137, 25 °C, upper limit value	385 x 0.1 mm
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C	approx. 130 mm²/s
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C	approx. 15.5 mm²/s
NLGI grade, DIN 51818	0
Shear viscosity at 25°C, shear rate 300 s-1, equipment:rotational viscometer, upper limit value	2 500 mPas
Shear viscosity at 25 °C, shear rate 300 s-1, equipment: rotational viscometer, lower limit value	800 mPas
Drop point, DIN ISO 2176, IP 396	>= 180 °C
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened  original container, approx.	24 months
