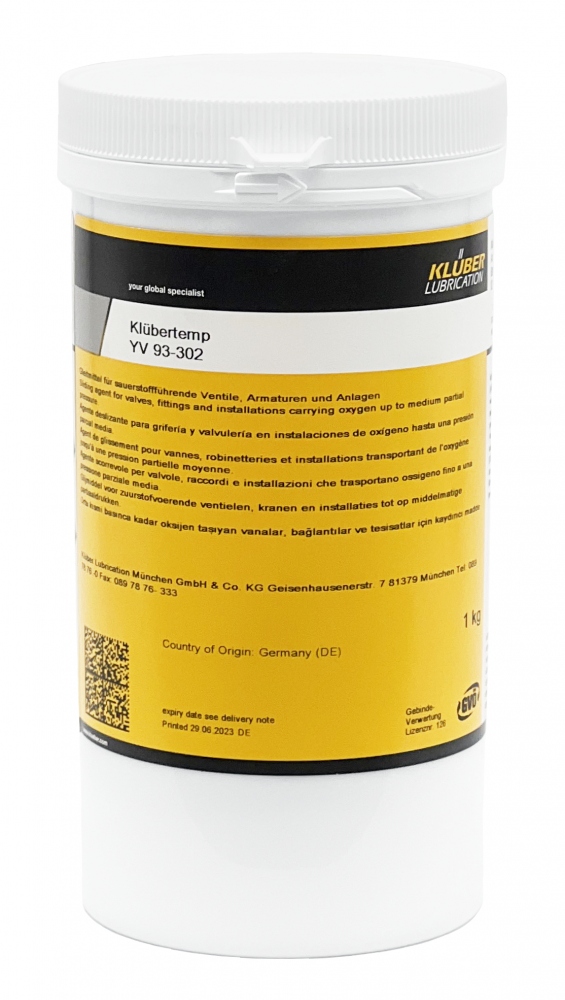

Klübertemp YV 93-302 Sliding agent for valves, fittings 1kg tin

Klübertemp YV 93-302 Sliding agent for valves, fittings 1kg tin

€ 1023.34 1,023.34 incl. VAT (859.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

Manufacturer: KLUBER

Country of origin: DE/0004

Customs tariff number: 34039900

Weight per piece: 1.2 kg

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

four - five = ?

( Examples: two + three = 5, three - five = -2 )

Klübertemp YV 93-302 is a white sliding agent with good wetting ability based on perfluorinated polyether, solid lubricants and PTFE.
It offers medium oxygen pressure surge resistance and high resistance to a wide range of chemicals. To ensure continuous adherence to this high quality standard, Klübertemp YV 93-302 is manufactured in small series subject to strict hygiene requirements and each batch is inspected based on M 034-1 list of nonmetallic materials (213-075).
Volume: 1 kg can

High operational reliability for installations and components used with gaseous oxygen due to
- medium oxygen pressure surge resistance (see product data)
- compatibility with most materials used in this industry
- a wide service temperature range
Each product batch is checked for its reactivity to oxygen

Klübertemp YV 93-302 is a tried-and-tested sliding agent for all friction points with low to medium requirements and in combination with all materials used in gaseous oxygen installations.
Possible applications are:
- Oxygen valves
- Peripheral aggregates of chemical installations
- Hose couplings, e.g. oxygen pipe connections, sliding and plain bearings, bolts, slideways, etc.
- Steel and heavy industry
- Assembly aid for most rubber-elastic materials and plastics
- For the industrial handling, maintenance and care of oxygen components

All surfaces to be wetted must be thoroughly cleaned prior to product application.
The friction / lubrication points of surfaces / components must be clean and bright (i.e. free from oil, grease, dirt particles or perspiration). We recommend cleaning the surfaces with clean white spirit and then Klüberalfa XZ 3-1, ensuring residue-free surfaces when dried. For valves and installations carrying oxygen, the application procedure must also be "oxygen clean" in order to attain a "ready for oxygen service" condition.

Chemical composition, type of oil	PFPE
Colour space	white
Worked penetration, DIN ISO 2137, 25 °C, lower limit value	265 x 0.1 mm
Texture	homogeneous
Worked penetration, DIN ISO 2137, 25 °C, upper limit value	295 x 0.1 mm
Chemical composition	solid lubricant
Density at 20 °C	ca. 2,00 g/cm³
Shear viscosity at 25 °C, shear rate 300 s-1; equipment:rotational viscometer	ca. 7500 mPas
Lower service temperature	-60 °C
Upper service temperature	200 °C
