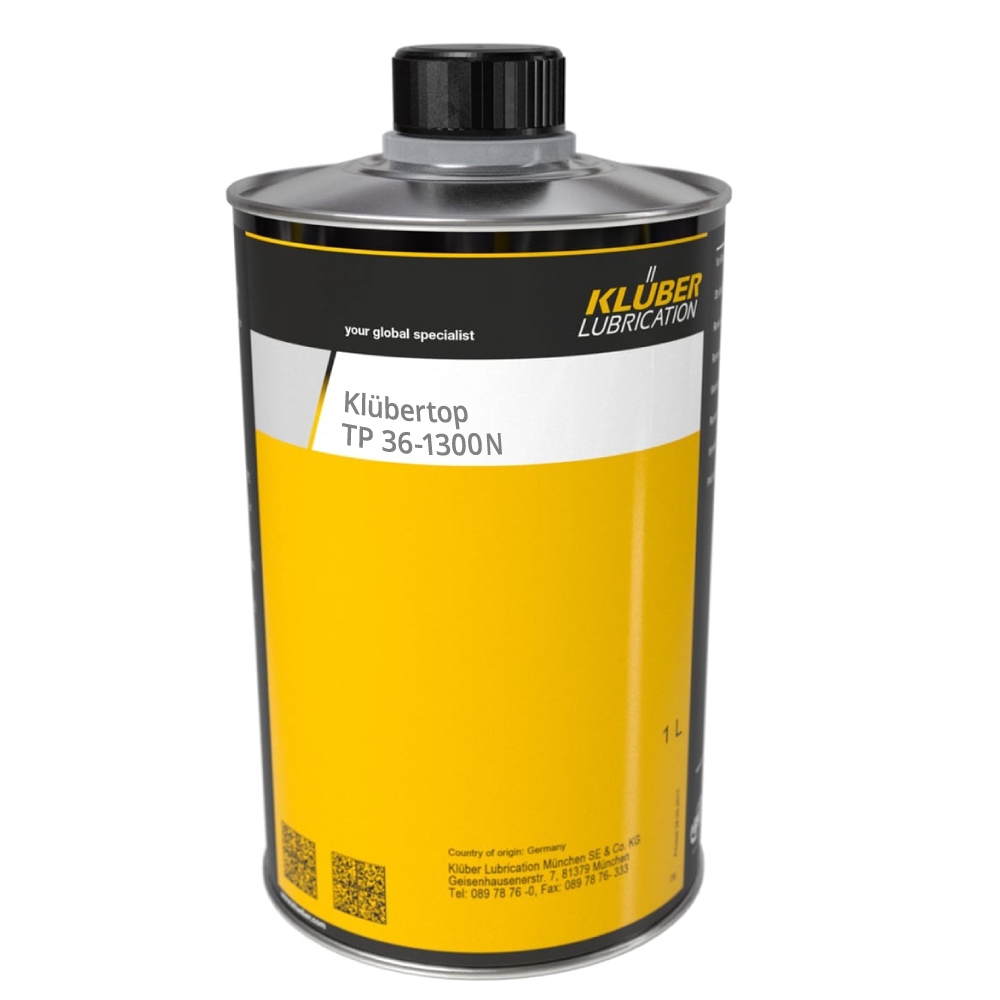

Klüber Klübertop TP 36-1300 N Two-component bonded coating 1l bottle
Klüber Klübertop TP 36-1300 N Two-component bonded coating 1l bottle
€ 264.2 264.20 incl. VAT (222.02 excl. VAT), per piece *
Availability: on request
Packaging unit: 1 piece
Manufacturer: Klüber
Country of origin: DE/0004
Customs tariff number: 34039900
Weight per piece: 1.1 kg
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
Klübertop TP 36-1300 N Water-miscible two-component bonded coating for sealing rings and coloured elastomers Komp. A | N° 099221
- Klübertop TP 36-1300 N A/B is a colourless two-component bonded coating for elastomers and thermoplastics. It has a low friction coefficient and a high resistance to wear as well as chemical stability.
- As Klübertop TP 36-1300 N A/B forms a nearly colourless dry film, it is particularly suitable for coloured seals and O-rings where increased operational reliability and colour fastness are equally important.
- Komp. A, as component B use Klübertop TH 03.
- Temperature range: -40°C to +100°C
- Volume: 1l bottle
- Also available in: 15l bucket
Benefits for your application
- Soft, visually appealing surface
- Reduction of assembly forces
- Can be coloured
- High chemical stability
- High elasticity
- Contains UV indicator (excitation at 300 - 400 nm)
Applications
- Coating of coloured TPE profiles, molded parts
- Reduction of assembly forces for O-rings
Application notes
- Klübertop TP 36-1300 N A/B can be applied by spraying or by brush.
- Spraying:
- Feed pressure: approx. 2 bar
- Nozzle diameter: 0.3 to 0.5 mm
- Recommended coating thickness: approx. 5–10 µm
- Ensure that only oil and water-free compressed air is used.
- As component B use Klübertop TH 03.
- In individual cases, the use of a primer or plasma treatment will improve adhesion.
- Please contact us for further information on how to reduce assembly forces for O-rings.
- Protect from frost and heat.
Technical specifications
| Lower service temperature | -40 °C / -40 °F |
| Upper service temperature | 100 °C / 212 °F |
| upper service temperatur (short-time) | 180 °C |
| Density, DIN EN ISO 2811, at 20 °C | approx. 1.08 g/cm³ |
| Runout time, DIN EN ISO 2431, with flow cups, 4 mm nozzle | approx. 21 s |
| Mixing ratio of components (standard mixture) | 100:6.5 |
| Drying time, at approx. 20 °C, completely hardened | approx. 24 h |
| Drying time, at approx. 100 °C, dry to the touch | approx. 5 min |
| Yield with a tribo-film thickness of 10 micrometer | approx. 24 m²/l |
| Recommended layer thickness, tribological coating | 5 - 10 µm |
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 100017642 |
