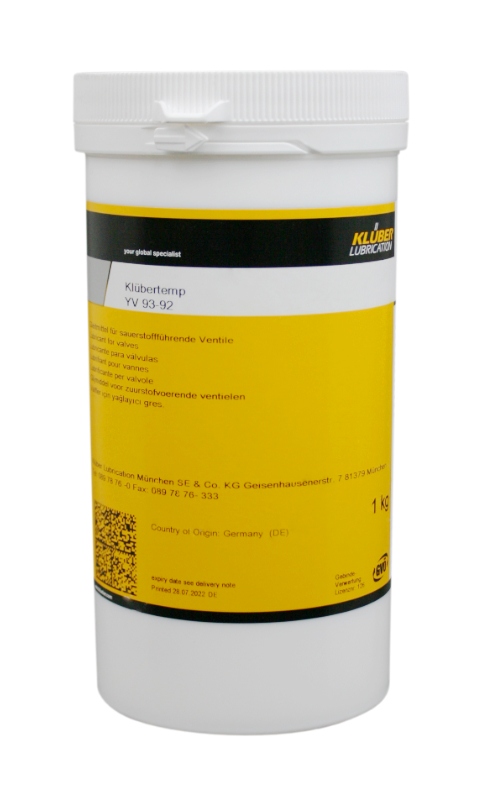

Klübertemp YV 93-92 Sliding agent for valves, fittings NLGI 2 1kg tin

Klübertemp YV 93-92 Sliding agent for valves, fittings and installations carrying oxygen under medium partial pressure | N° 013071

• Klübertemp YV 93-92 is a white sliding agent with good wetting ability based on perfluorinated polyether and solid lubricants.
• It offers medium oxygen pressure surge resistance and high resistance to a wide range of chemicals.
• To ensure continuous adherence to this high quality standard, Klübertemp YV 93-92 is manufactured in small series subject to strict hygiene requirements and each batch is inspected based on M 034-1 List of nonmetallic materials (213-075).
• Temperature range: -60°C to +160°C
• Size: 1kg can

Benefits for your application

• Reliable operation of installations and components using gaseous oxygen
  • due to medium oxygen pressure surge resistance (see product data)
  • due to good compatibility with most materials used in this branch of industry
  • due to a wide service temperature range, in particular for low temperatures
• Also suitable for installations and components carrying liquid oxygen
• Each product batch is checked for its reactivity to oxygen

Applications

• Klübertemp YV 93-92 is used as a sliding agent for the lubrication of valves, fittings and installtions carrying gaseous and/or liquid oxygen for chemical plants and apparatus requiring high resistamce tp various gases (conclusion by analogy based on chemical composition).
• The wide service temperature range, in particular at low temperatures, underlines the universal application possibilities of this sliding agent
• Possible applications are:
  • Oxygen valves
  • Peripheral aggregates of chemical installations –
  • Hose couplings, e.g. oxygen pipe connections, bolts, slideways, etc.
  • Assembly aid for most rubber-elastic materials and plastics
  • For industrial handling, maintenance and care of oxygen components

Application notes

• All surfaces to be wetted must be thoroughly cleaned prior to product application.
• The friction / lubrication points of surfaces / components must be clean and bright (i.e. free from oil, grease, dirt particles or perspiration).
• We recommend cleaning the surfaces with clean white spirit and then Klüberalfa XZ 3-1, ensuring residue-free surfaces when dried.
• For valves and installations carrying oxygen, the application procedure must also be "oxygen clean" in order to attain a "ready for oxygen service" condition.

Technical specifications
