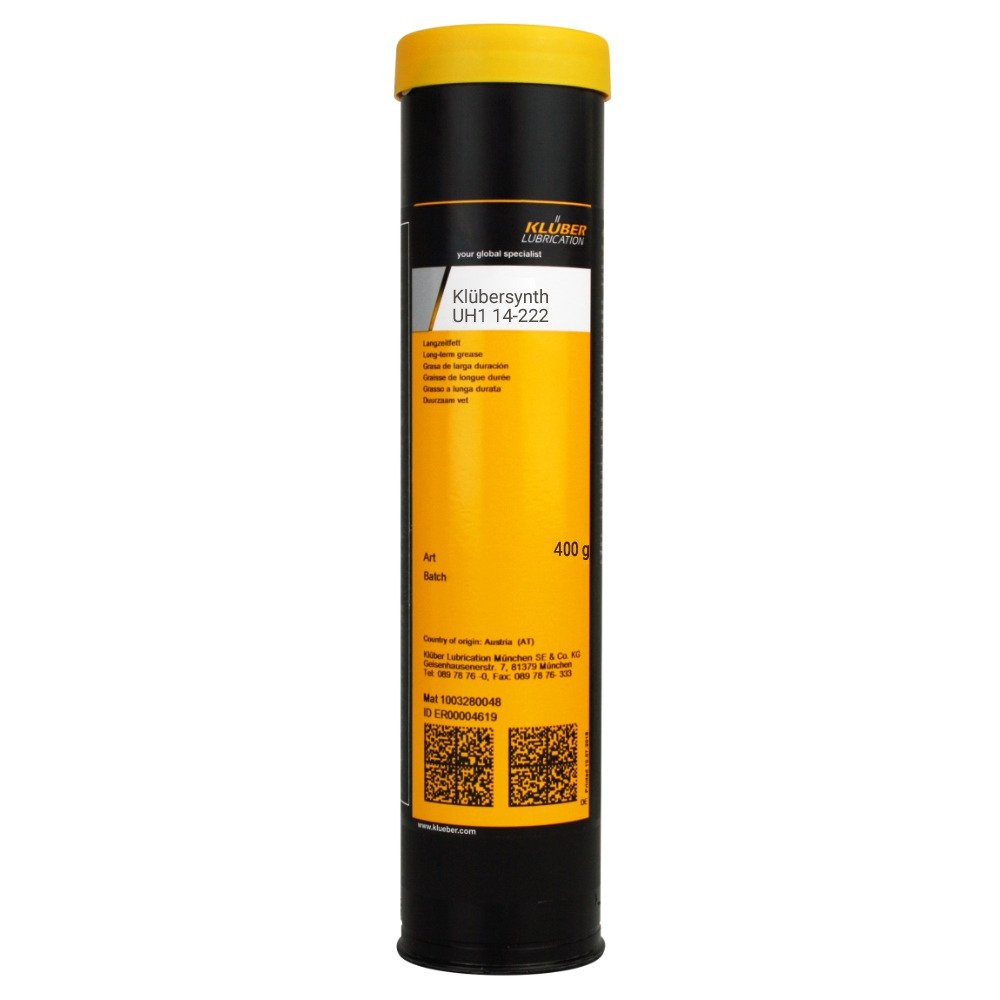

Klübersynth UH1 14-222 Synthetic lubricating grease 400g cartridge

Klübersynth UH1 14-222 Synthetic lubricating grease 400g cartridge

€ 49.92 49.92 incl. VAT (41.95 excl. VAT), per piece *

Availability: In Stock - shipping immediately

Packaging unit: 1 piece

Manufacturer: KLUBER

Country of origin: ES/0011

Customs tariff number: 34031980

Weight per piece: 440 g

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

two - five = ?

( Examples: two + three = 5, three - five = -2 )

Klübersynth UH1 14-222 was developed for the special requirements of the food-processing and pharmaceutical.
Klübersynth UH1 14-222 is NSF H1 registered and therefore complies with FDA 21 CFR § 178.3570.
The lubricant was developed for incidental contact with products and packaging materials in the food processing, cosmetics, pharmaceutical or animal feed industries.
The use of Klübersynth UH1 14-222 can contribute to increase reliability of your production processes. We nevertheless recommend conducting an additional risk analysis, e.g. HACCP
Temperature range: -25°C to +120°C
Volume: 400g cartridge
Also available in: 1kg can, 25kg bucket, 180kg drum

Benefits for your application

Facilitates product streamlining owing to its wide range of applications
Offers improved surface protection through good adhesion and its particular consistency
ISO 21469 certified – supports the compliance with the hygienic requirements in your production. You will find further information about ISO Standard 21469 on our website www.klueber.com

Applications

Klübersynth UH1 14-222 is suitable for use in machines, installations and equipment of the food-processing and pharmaceutical industries, particularly for lubrication points that
may have incidental and technically unavoidable contact with the food product.
This food-grade lubricant is intended for the universal lubrication of rolling and plain bearings, lifting cylinders, joints, guide rods and rails, cams, etc.

Technical specifications

Article number	096071
NLGI grade, DIN 51818	2
NSF-H1 registration	128 827
Lower service temperature	-25 °C / -13 °F
Upper service temperature	120 °C / 248 °F
Colour space	beige
Texture	homogeneous
Density at 20 °C	approx. 0,94 g/cm³
Worked penetration, DIN ISO 2137, 25 °C, lower limit value	265 x 0,1 mm
Worked penetration, DIN ISO 2137, 25 °C, upper limit value	295 x 0,1 mm
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C	approx. 260 mm²/s
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C	approx.29 mm²/s
Shear viscosity at 25 °C, shear rate 300 s-1, equipment: rotational viscometer, lower limit value	6 000 mPas
Shear viscosity at 25°C, shear rate 300 s-1, equipment:rotational viscometer, upper limit value	12 000 mPas
Low-temperature torque, IP 186, - 25 °C, start	<= 1 000 mNm
Low-temperature torque, IP 186, - 25 °C, running	<= 100 mNm
Drop point, DIN ISO 2176, IP 396	>= 220 °C
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	24 months
