Klüber STABURAGS NBU 30 PTM Lubricating grease high resistance 450g

Klüber STABURAGS NBU 30 PTM Lubricating grease high resistance 450g

€ 120.06 120.06 incl. VAT (100.89 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

Manufacturer: KLUBER

Country of origin: BE/0017

Customs tariff number: 34031980

Weight per piece: 450 g

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

one - six = ?

( Examples: two + three = 5, three - five = -2 )

Lubricating and assembly grease

STABURAGS NBU 30 PTM is an assembly grease containing a solid lubricant. It is resistant to water and protects against tribocorrosion (fretting corrosion). It has proven effective in outdoor applications subject to high humidity.

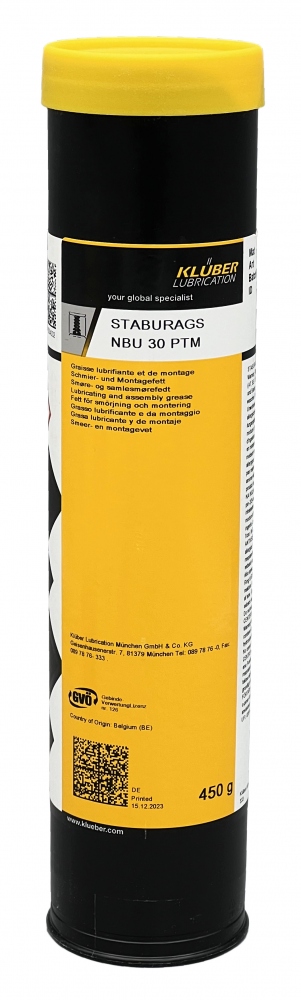

Content: 450g cartridge
Available in 50g tube, 450g cartridge, 1,2kg can, 30kg bucket, 220kg drum

Benefits for your application:

Application:

STABURAGS NBU 30 PTM is suitable as an assembly grease for applications incorporating sliding clearance fits. Applications include hot and cold water valves and taps, slideways (especially in filling machines), valve spindles and cylinder guides. The product can also be used as a sealing grease. In addition, it is suitable for the lubrication of slideways, bolts, spindles and screws, e.g. in railway bogie assemblies.
STABURAGS NBU 30 PTM is especially suitable for external brake components of rail vehicles, such as bolts and rods.
STABURAGS NBU 30 PTM facili-ates assembly and disassembly of ABS sensors in vehicles.

Application notes:

Use the aerosol spray version of STABURAGS NBU 30 PTM for relubrication of railway brake parts where no grease nipple is incorporated. For optimum penetration into fine clearances we recommend spraying for at least 8 seconds. This will increase efficiency of brake rods in rail vehicles thus ensuring the longest maintenance intervals.
When used for assembly and lubricating purposes we recommend the lubricant be lightly applied to the component surfaces via a lint free cloth, by hand, or by brush.
STABURAGS NBU 30 PTM shows good adhesive strength at low temperatures down to min. -40 °C.

Product data:

Article number	17069
Chemical composition	solid lubricant
Chemical composition, thickener	barium complex soap
Chemical composition, type of oil	mineral oil
Lower service temperature	-10 °C / 14 °F
Upper service temperature	160 °C / 320 °F
Colour space	grey
Density at 20 °C	approx. 1,10 g/cm³
Worked penetration, DIN ISO 2137, 25 °C, lower limit value	245 x 0,1 mm
Worked penetration, DIN ISO 2137, 25 °C, upper limit value	275 x 0,1 mm
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 40 °C	approx. 490 mm²/s
Kinematic viscosity of the base oil, DIN 51562 pt. 01/ASTM D-445/ASTM D 7042, 100 °C	approx. 31 mm²/s
Shear viscosity at 25 °C, shear rate 300 s-1; equipment:rotational viscometer	approx. 15 000 mPas
Drop point, DIN ISO 2176, IP 396	>= 220 °C
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	60 months
