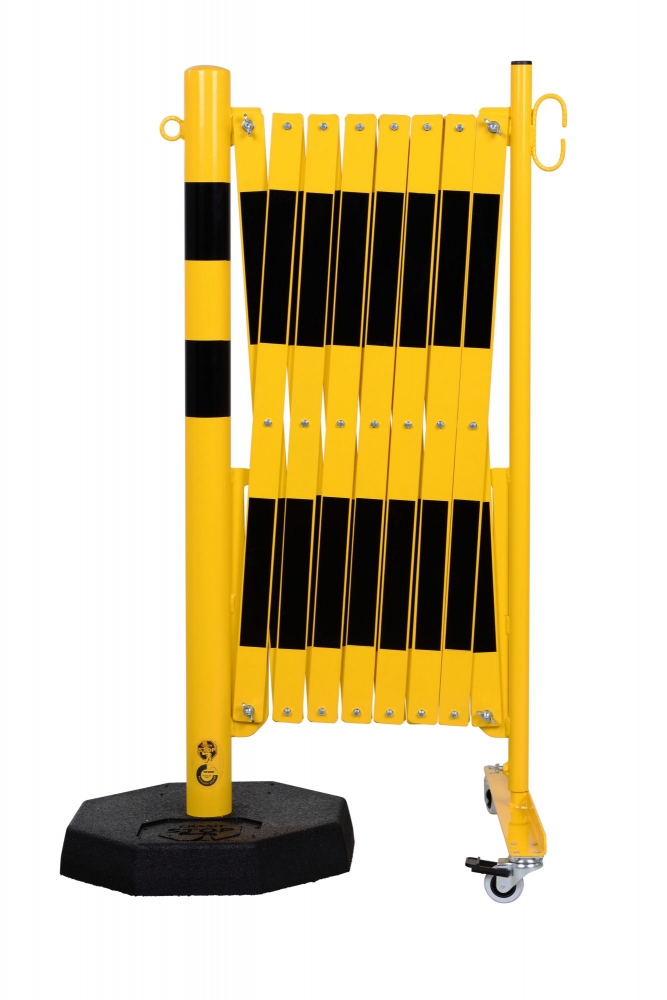

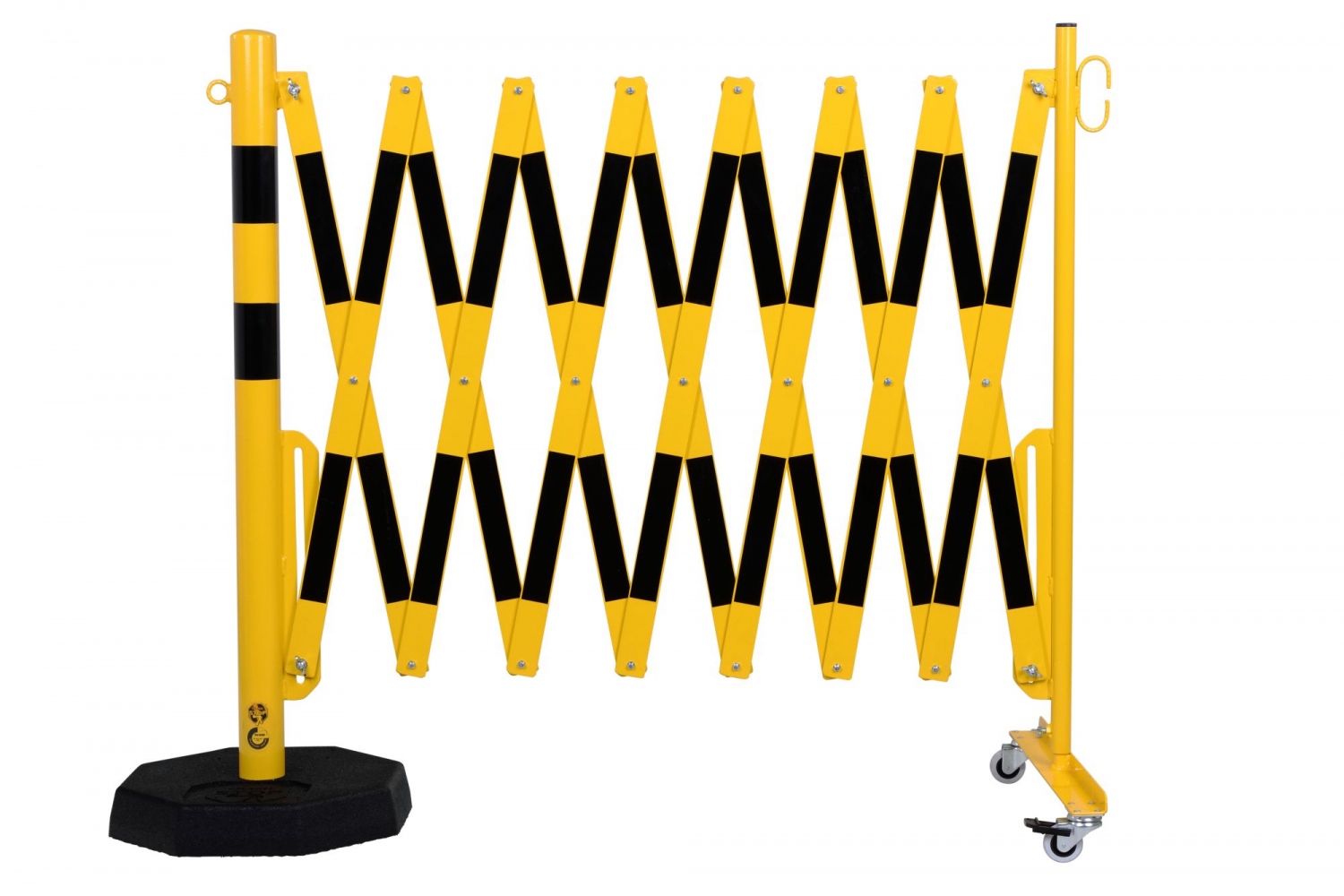

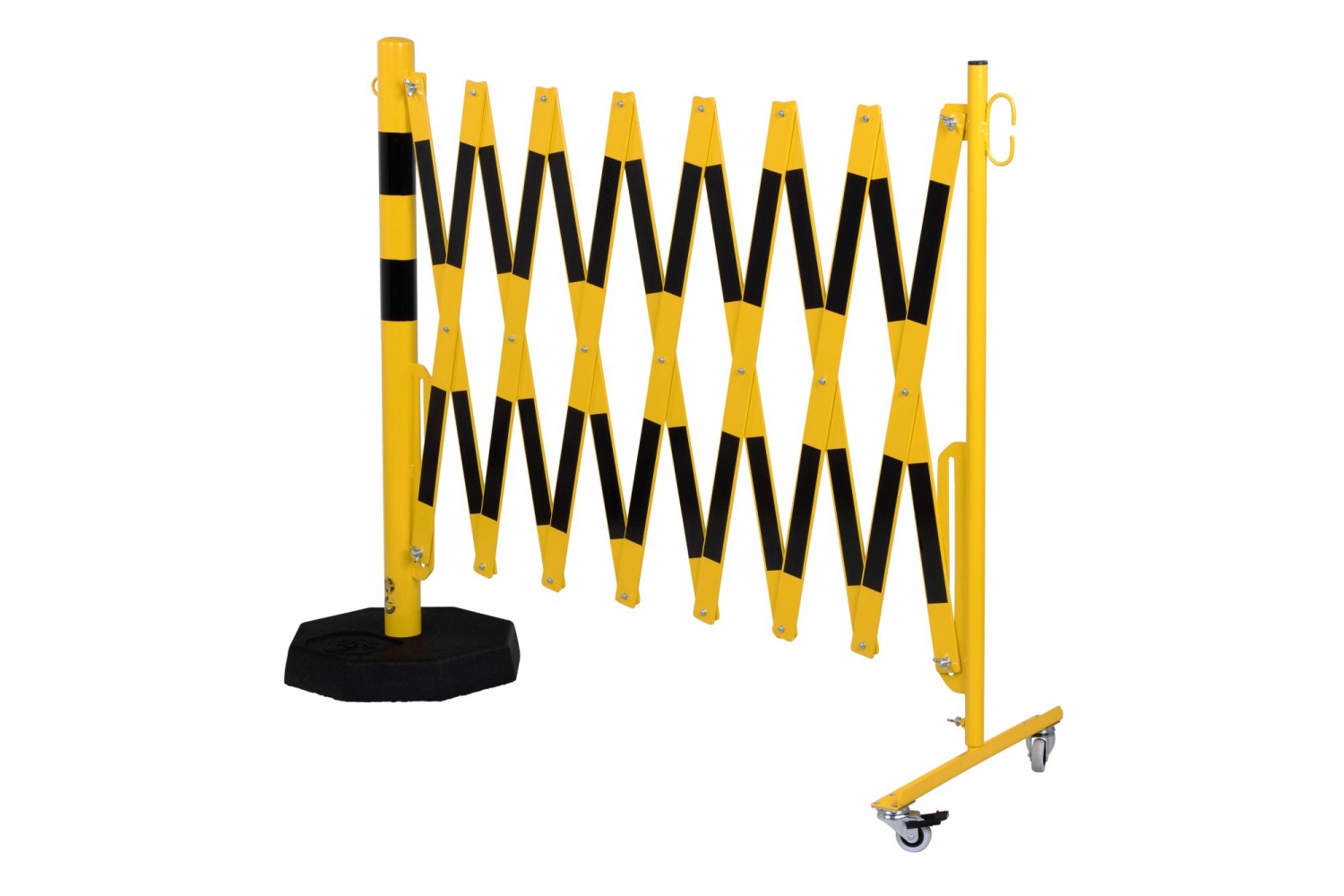

CRASH STOP 70-90 Expandng barrier castors-plate, yellow-black, 4.0 m

CRASH STOP 70-90 Expandng barrier with castors and heavy foot plate, yellow-black, 4000 mm

Expanding Barrier, steel, 1050 mm H, powder coated, with castors, with post Ø 60 mm on a mobile
octagonal foot plate, TÜV-certified (Folded width incl. footplate)

Technical Data

• Model: 70-90
• Material: Steel
• Width: 4000 mm
• Height: 1050 mm
• Folded width total (ca.): 620 mm
• Material flat steel: 5 x 40 mm
• Weight: 30,0 kg

Description
The variation with combined steel posts can be positioned in areas where wall fixings are not possible.
Like the TÜV-certified expanding barriers with wall fixings these combined sets are also available in
yellow-black and red-white in the standard lengths of 3.6 m and 4.0 m.

The steel barrier posts are for floor mounting with base plate, rectangular posts 70 x 70 mm or
round posts (diameter 60 mm). For existing barrier posts, it is possible to use the KIT version with an adaptor.

For temporary use, the barrier post can be combined with the mobile base plate including the expanding barrier.
