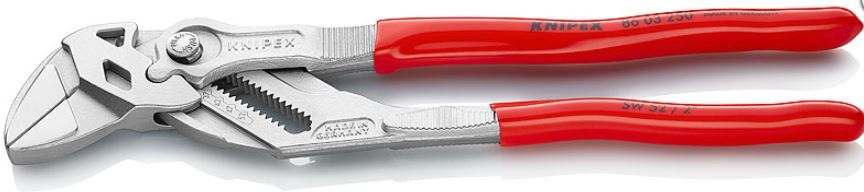

Knipex 8603250 Plier wrench with smooth jaws 250mm

The smooth jaws grip all parallel surfaces in the capacity range with a high degree of pressure if necessary and open up almost unlimited application possibilities for the pliers wrench: e.g. for tightening locknuts, exerting pressure to activate the adhesive power of contact adhesives, edge breaking in tile work, snapping cable ties, utilisation as a small vice.

Technical Specifications

• Pliers chrome plated
• Handles plastic coated
• B1     8,0 mm
• B2     8,0 mm
• B3    14,0 mm
• Adjustment positions     19
• Capacities for nuts     2  Inch
• Capacities for nuts     52 mm
• Length     250 mm

Highlights

• Replaces the need for sets of metric and imperial spanners
• Smooth jaws for damage free installation of plated fittings - working directly on chrome!
• Adjustable tightening tool
• Also excellent for gripping, holding, pressing and bending workpieces
• Push the button for adjustment on the workpiece
• Zero backlash jaw pressure prevents damage to edges of sensitive components
• Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size
• Reliable catching of the hinge bolt: no unintentional shifting
• The ratchet type principle allows quick and easy tightening and release of all bolted connections
• Lever transmission greater than 10 : 1 for strong gripping power
• Chrome vanadium electric steel, forged, oil-hardened
• With scaling for presetting the width apart from the workpiece
