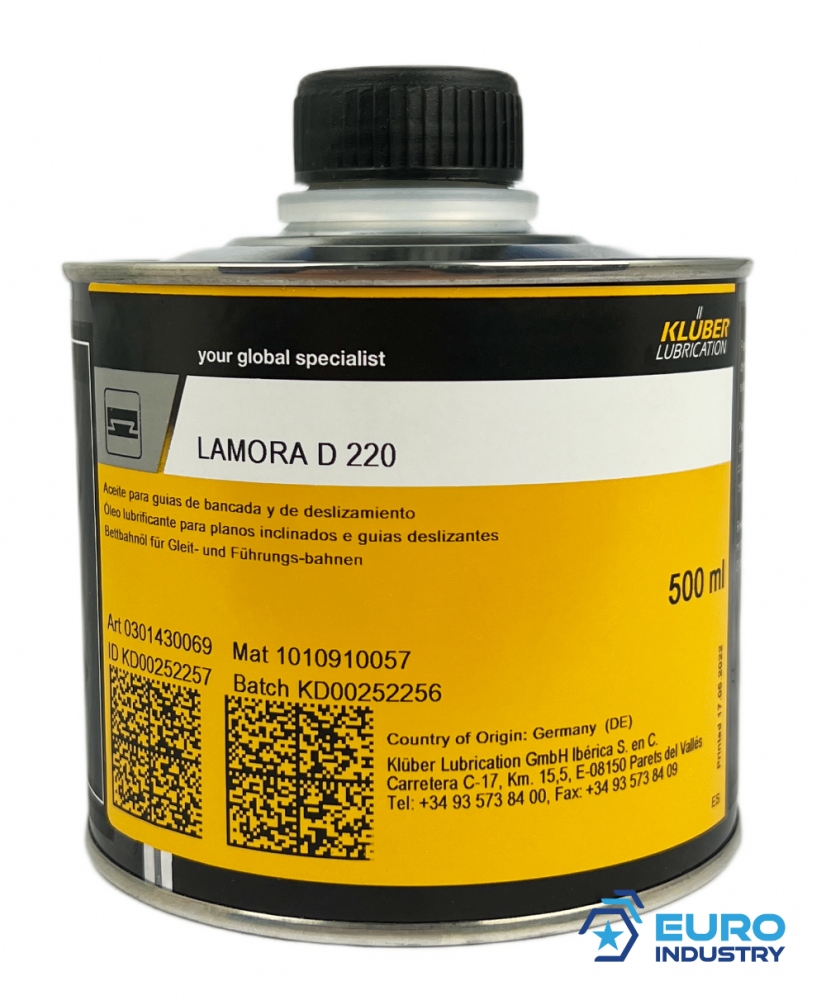

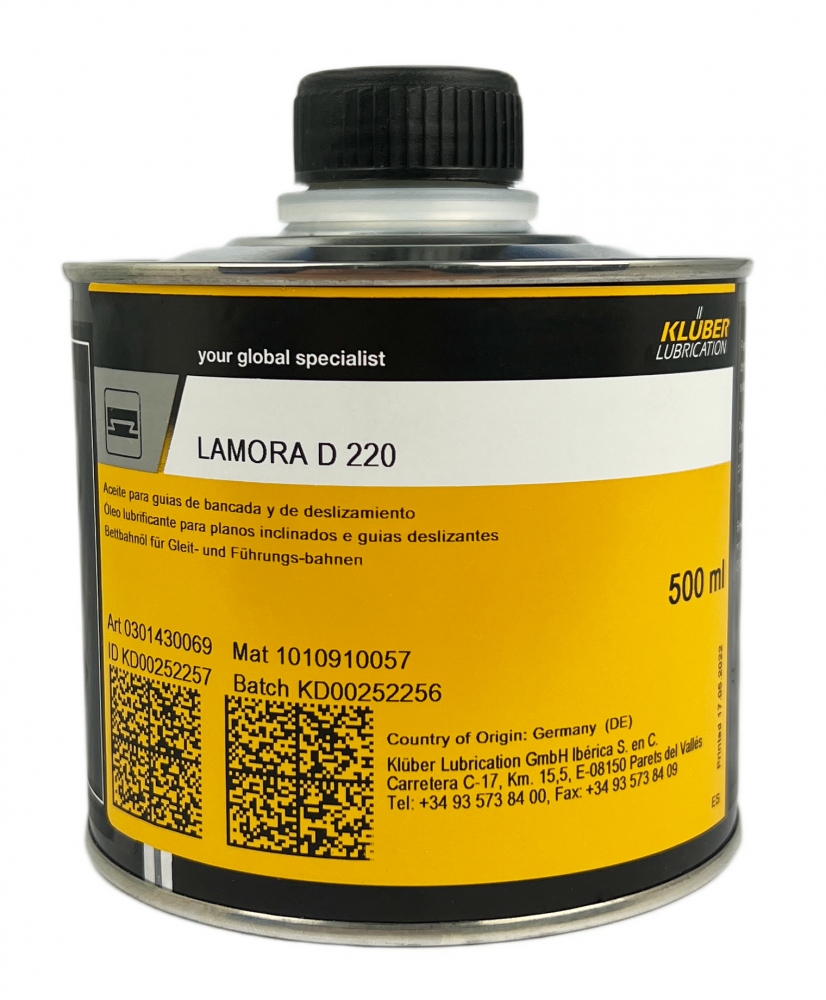

Klüber LAMORA D 220 Lubricating oil for slideways 500ml can
Klüber LAMORA D 220 Lubricating oil for slideways 500ml can
€ 49.92 49.92 incl. VAT (41.95 excl. VAT), per piece *
Availability: In Stock - shipping immediately
Packaging unit: 1 piece
Manufacturer: Klüber
Country of origin: AT/0038
Customs tariff number: 27101999
Weight per piece: 550 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
LAMORA D 220 Lubricating oils for slideways and guideways | N° 030143
- Linear guides are expected to function precisely and to run smoothly despite being subject to many start-ups and stops.
- They often have to withstand vibrations and go a long time without maintenance.
- Slideway oils can often not be prevented from mixing with cooling lubricants containing water, which then leads to residue formation and shorter coolant life.
- Volume: 500ml can
- Also available in: 200l drum
Benefits for your application
- Prevent residue formation and stick-slip at low sliding speeds
- Good demulsifying behaviour towards water-miscible cooling lubricants
- Optimised coefficients of adhesion
- Good wetting and load-carrying capacity
- Especially for slideways and guideways coated with plastic
- Meet the requirements of CGLP oils acc. to DIN 51 502
Applications
- LAMORA D oils are especially suited for the lubrication of heavily loaded slideways with low feed rates. LAMORA D oils have been tried and tested for the lubrication of slideways and guideways in modern machining centres, milling machines, lathes and other machine tools.
- As they show good compatibility with water-miscible machining fluids and cooling lubricants, LAMORA D oils can be used in applications where they may mix with aqueous media.
Application notes
- LAMORA D oils can be applied by oil can or a centralised lubricating system. If you have any other questions regarding your application, our experts will be happy to help you.
Technical specifications
| Density, DIN 51757, 20 °C | approx. 0.89 g/ cm³ |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ ASTM D 7042, 40 °C | approx. 220mm²/s |
| Kinematic viscosity, DIN 51562 pt. 01/ASTM D-445/ ASTM D 7042, 100 °C | approx. 19 mm²/ s |
| Viscosity index, DIN ISO 2909 | approx. 94 |
| ISO viscosity grade, DIN ISO 3448 | 220 |
| FZG scuffing test, DIN ISO 14635-1, A/8.3/90, scuffing load stage | >= 12 |
| Flash point, DIN EN ISO 2592, Cleveland, open-cup apparatus | >= 220 °C |
| Pour point, DIN ISO 3016 | <= -15 °C |
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 100102056 |
