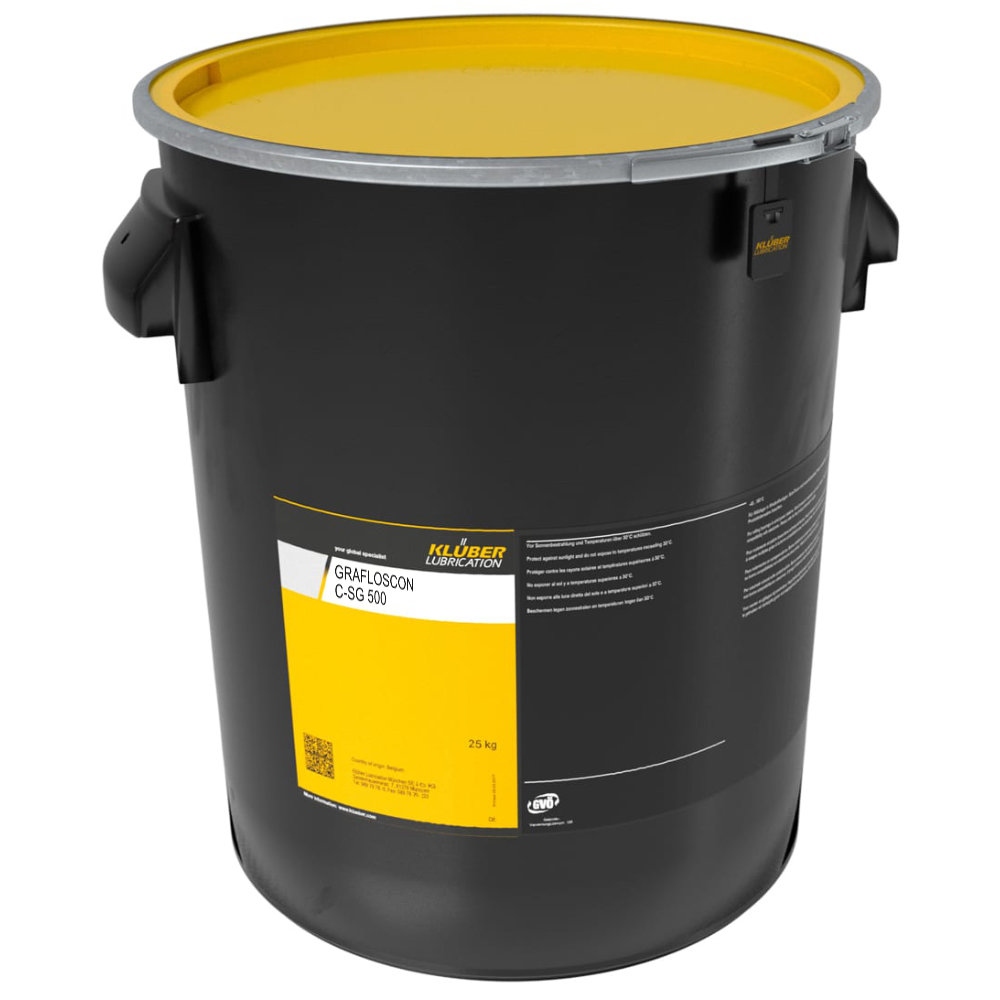

Klüber Grafloscon C-SG 500 Plus Adhesive lubricant 25kg bucket

Klüber Grafloscon C-SG 500 Plus Adhesive lubricant 25kg bucket

€ 1486.31 1,486.31 incl. VAT (1,249.00 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

Manufacturer: KLUBER

Country of origin: BE/0017

Customs tariff number: 27101999

Weight per piece: 25.0 kg

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

four - zero = ?

( Examples: two + three = 5, three - five = -2 )

Adhesive lubricant

GRAFLOSCON C-SG 500 PLUS, a sprayable adhesive lubricant based on mineral oil, is aluminium complex saponified and contains solid lubricant (fine graphite). It is resistant to high pressure and is provided with anti-wear additives, adhesion improvers and corrosion inhibitors.
GRAFLOSCON C-SG 500 PLUS is free from bitumen, solvents and lead.
Size: 25kg bucket
Available in 400g cartridge, 25kg bucket

Benefits for your application

Application

GRAFLOSCON C-SG 500 PLUS can be used to lubricate open rolling drives (spur and bevel gears), slide and guide rails, large chain drives, etc., especially at high component temperatures. It is particularly suitable for rubbing seals (steel/steel) in rotary kilns or drums.

Product data

Article number	39065
Solid lubricants, percentage	approx. 10 % by weight
Colour space	black
Texture	homogeneous
Density at 20 °C	approx. 0.96 g/cm³
Thermal stability of the lubricating film	200 °C
Functional lubricant film	-30 °C
FZG scuffing test, based on DIN ISO 14635, A/2,76/50, scuffing load stage	>= 12
Copper corrosion, DIN 51811, (lubricating grease), 24h/100°C	1 - 100 corrosion degree
Four-ball tester, welding load, DIN 51350 pt. 04	>= 5 000 N
Water resistance, DIN 51807 pt. 01, 3 h/40°C	0 - 40
Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx.	24 months
