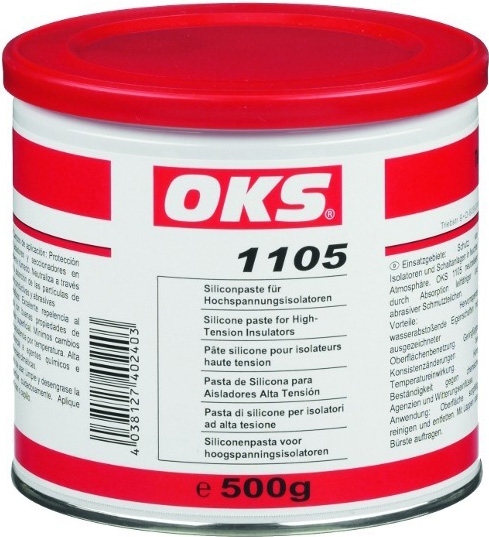

OKS 1105 insulating paste 500g tin

OKS 1105 insulating paste 500g tin

€ 101.09 101.09 incl. VAT (84.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: OKS

Country of origin: DE/0004

Customs tariff number: 34039900

Weight per piece: 600 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

one - two = ?

( Examples: two + three = 5, three - five = -2 )

prevents the formation of electrically conductive layers and minimises the risk of flashovers and dielectric losses. The insulators and switchgear covered with the paste thus maintain a good insulation resistance

Field of application

Sealing lubrication for electrical or electronic equipment such as relays, plug-in connections, cable lugs and lamp sockets
Protection of insulators and switchgear in humid atmospheres, for example of junction boxes, screw terminals, overload cutouts at high-voltage pylons, connecting cables and terminal connections
Lubricant for plastic screw connections and other moving parts of metal, ceramic, plastic

Properties

Excellent water repellent properties
Excellent surface wetting
Good adhesion on glass, porcelain and plastics
Stable consistency across a wide temperature range
Very good resistance to chemical and weather-based influences (e.g. ozone, UV radiation)
Neutral with regard to many materials
Small change in the dielectric properties across a wide temperature range

Technical specifications

Temperature range -40°C to max +200°C
Electrical resistivity (25°C) > 10^14Ωcm
Dielectric constant 2.75
Content 500g
Tin

Industries

Rail vehicle technology
Municipal services
Iron and steel industry
Rubber and plastic processing
Logistics
Paper and packaging industry
Chemical industry
Shipbuilding and marine technology
Plant and machine (tool) engineering
Glass and foundry industry

No files available for download
